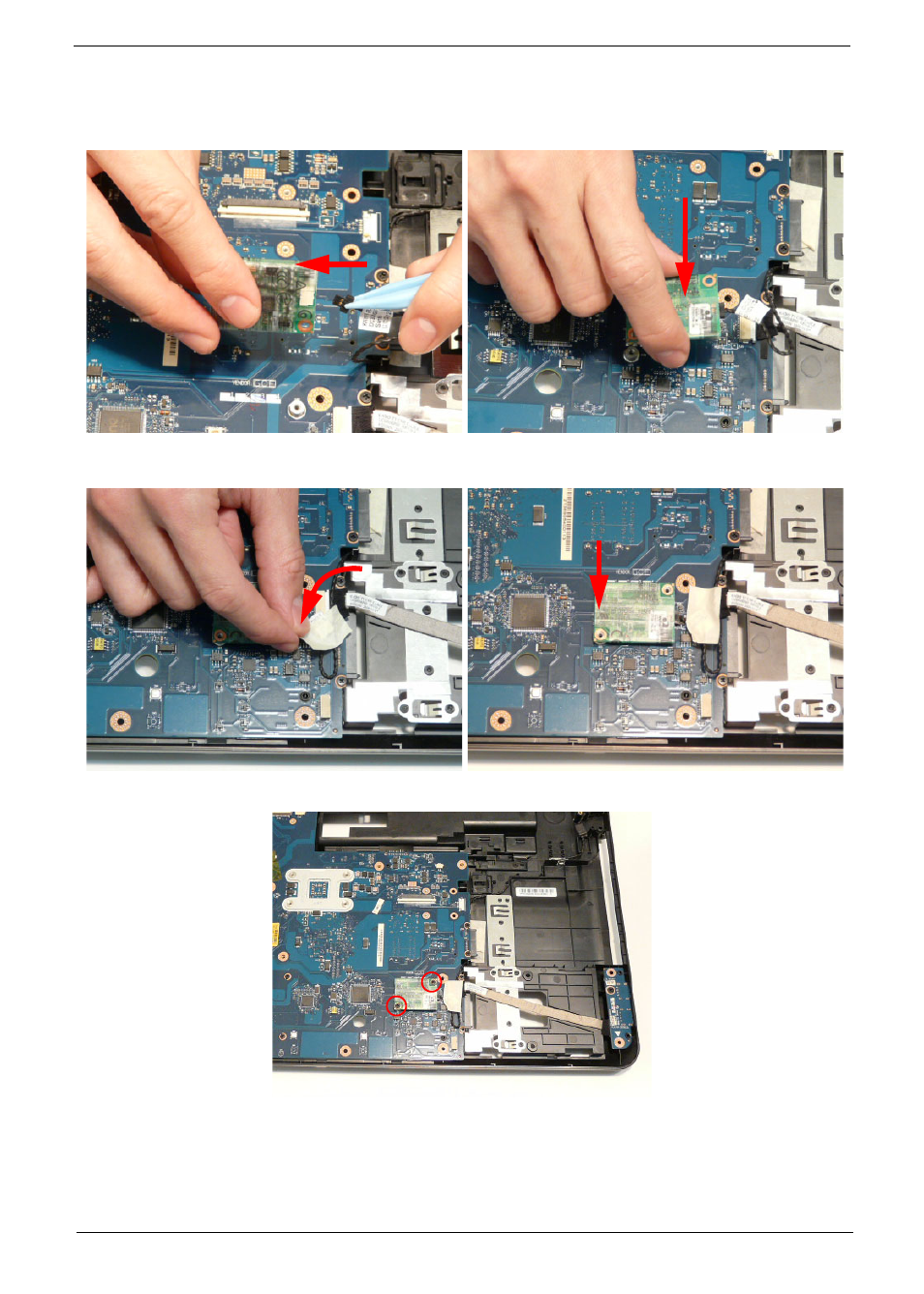

Replacing the Modem Board
1. Reconnect the RJ-11 cable to the Modem Board.
2. Align the screw holes on the Modem and Lower
Cover and replace the board.
3. Secure the cable in place with adhesive tape.
4. Press down as indicated to connect the board-to-
board interface.
5. Secure the Modem Board to the Mainboard with two screws.
