Page 116

106

Chapter 3

LCD Module Reassembly Procedure

Replacing the Antennas, Power Board, and MIC

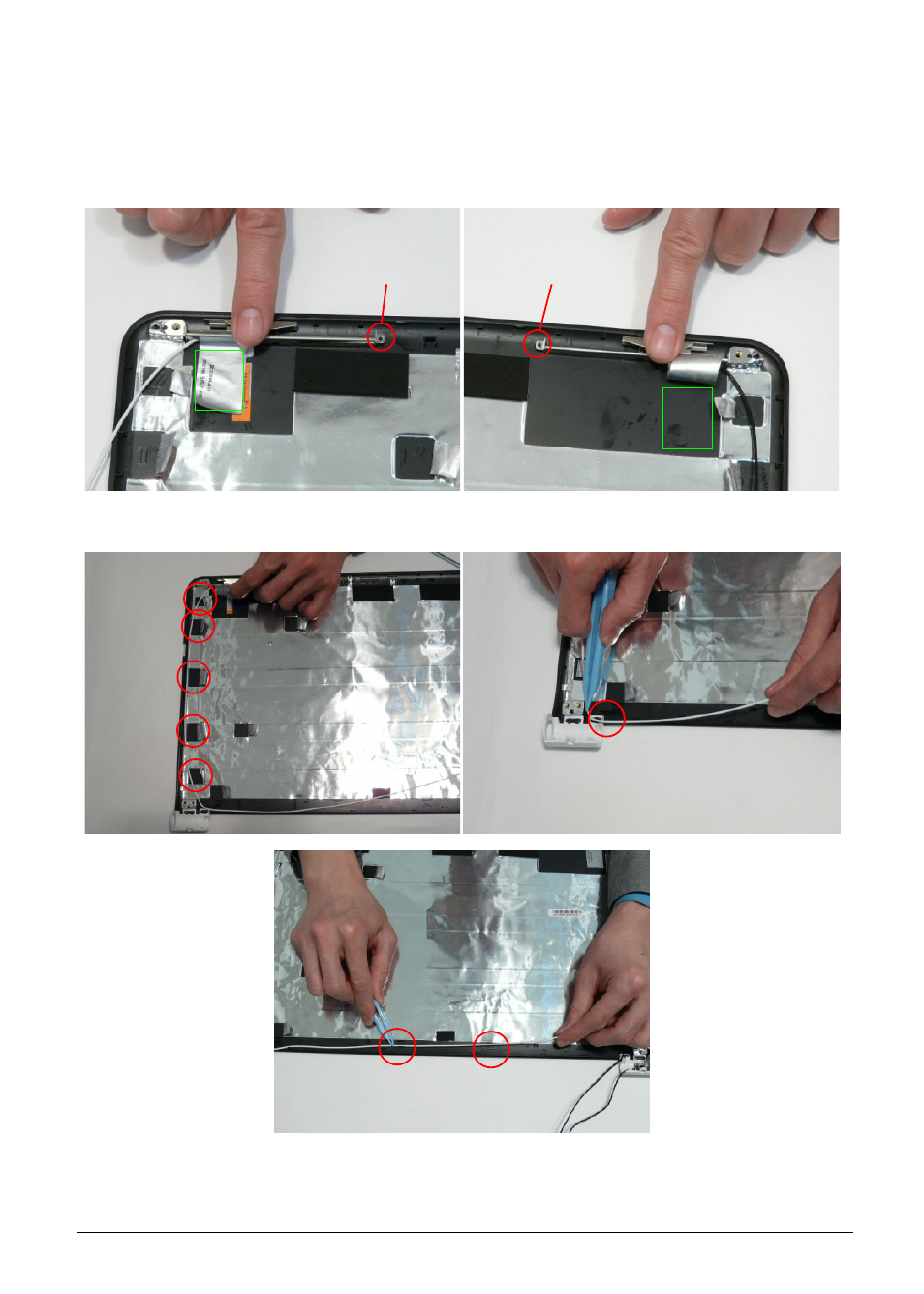

1. Replace the left and right antennas as shown. Ensure that the locating pin on each antenna is correctly

seated. Press down on the adhesive pads (green callout) to secure the antennas in place.

2. Replace the left antenna cable (white) as shown. Ensure that the cable is inserted along the cable channel

and secured under each adhesive tab strip.

Locating Pin
