PE1500 User’s Manual

10

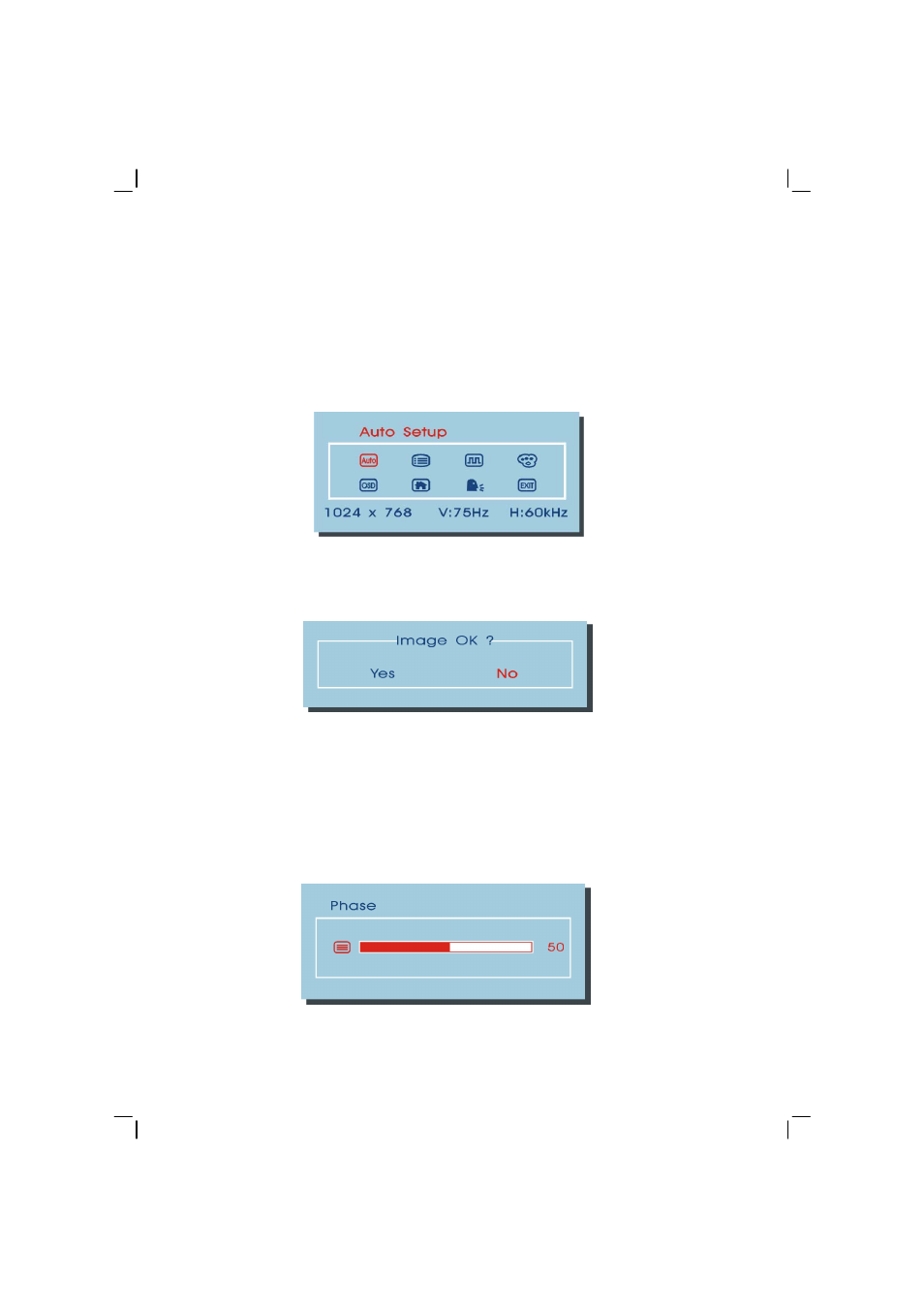

Doing Adjustment in the OSD Menu

Doing Auto Setup

To doing the Auto Setup function you should follow the steps below:
1. Bring-up the OSD “Main Menu”.
2. The ‘Auto’ icon should be highlighted already.


3. Use ‘Select’ button to select and execute the Auto Setup function. After the execution of the

Auto Setup function, it will show-up the follow message:


If the image looks correct, choose Yes.

OR

If the image requires further adjustment, choose No, it will shown up ｀Phase＇ bar for your

further adjustment by manual. Then you can adjust phase by ｀Up(△)＇ or ｀Down(▽)＇
buttons. When all text appears well focused and there is no instability in the image, press the
‘Select’ key to end up the adjustment.
