Planar PD8130/PD8150 Installation/Operation Manual
PREL
IMINA
RY
3.8
Adjusting the Picture
Orientation
If the PD8130/PD8150 is installed behind the screen, you must change the
picture orientation to match the installation method. To do this, press MENU on
the remote control. Then, select System from the Main Menu.
Rear Projection
If the projector is used in a rear-projection application (see Figure 3-6), press
repeatedly to select Rear Projection from the System Menu. Press or to set it
to On.
Ceiling Mode
If the projector is ceiling-mounted, the PD8130/PD8150 automatically inverts the
image. If this automatic inversion is not desired, select Ceiling Mode from the
System Menu and set it to Off.
3.9
Lens Adjustments

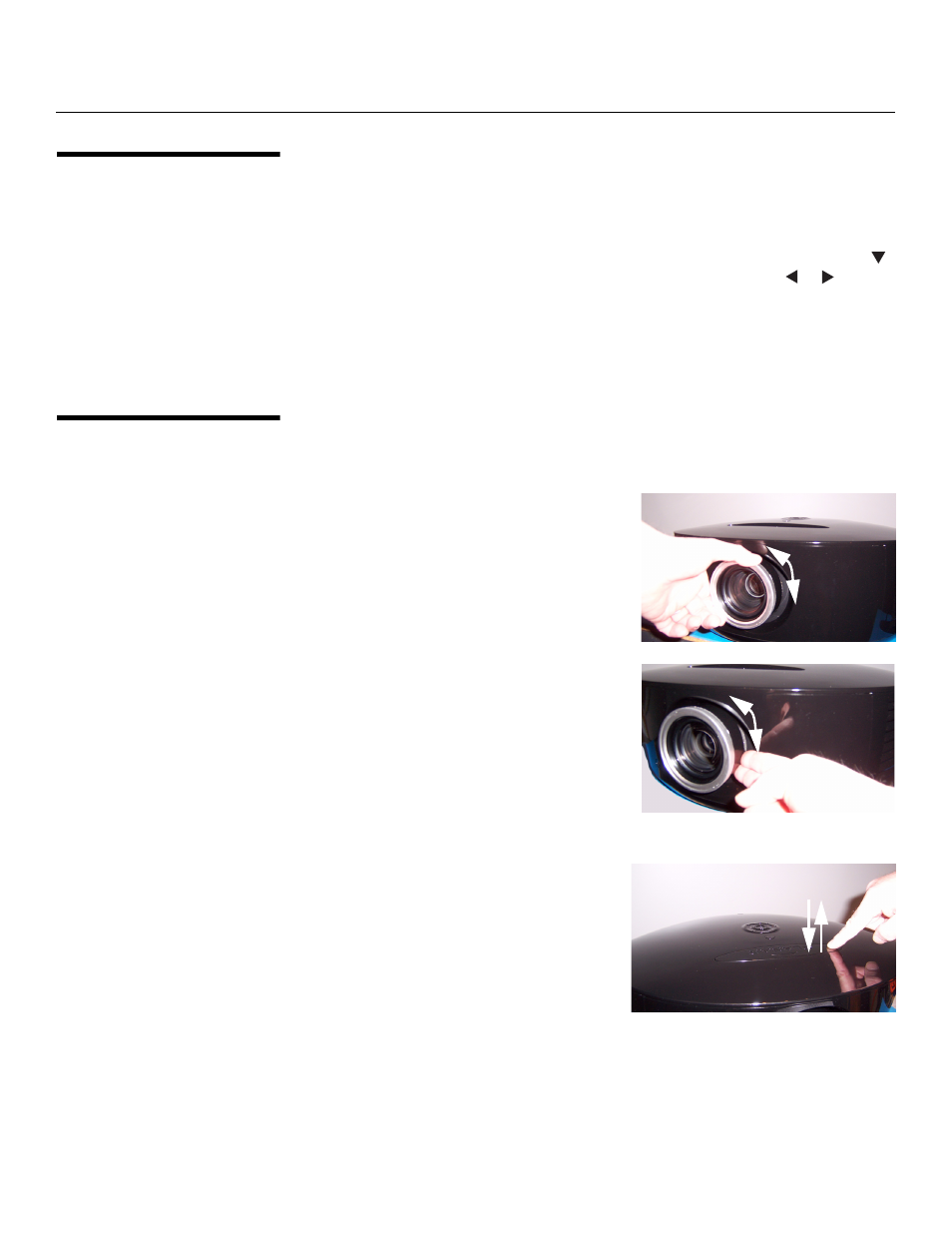

The PD8130/PD8150 gives you a great deal of control over the picture size,
position and focus.
Focus
To focus the projected image, grasp the
lens by the front ring and rotate it.
Zoom
To make the picture smaller (zoom out)
or larger (zoom in), rotate the zoom ring
in the appropriate direction.
Lens Shift
To access the lens shift controls:
1. Locate the Planar badge at the top
of the projector. Press on the side of
the badge nearest the “P” to release
it.
➤
➤
➤
➤
Zoom In
Zoom Out
➤
