RGB Connections: Connect your personal computer or other RGB source to the
RGB input.
Optionally, if the source outputs RGB with composite sync, connect the green,
blue and red outputs to the Y, Pb and Pr terminals on the COMPONENT 1/SCART
input and the sync output to the VIDEO input.

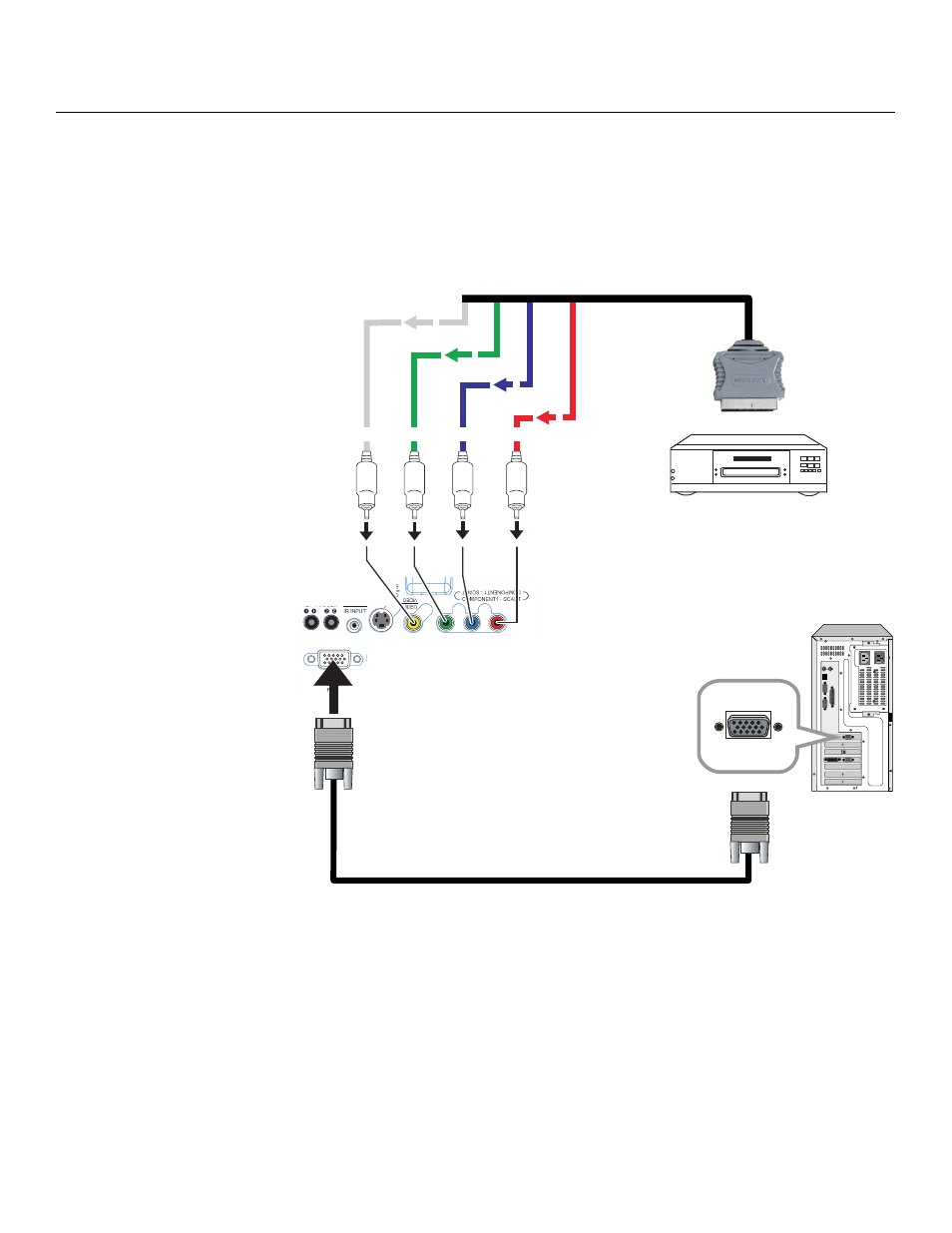

Figure 3-8. RGB Connections
Sync Green Blue
Red
Personal
Computer
DVD Player or
Other SCART RGBS
Source
