Planar PD8130/PD8150 Installation/Operation Manual
27
PREL
IMINA
RY
RS-232 Controller
Connection
Connect a PC or home theater control/automation system (if present) to the
RS-232 port on the PD8130/PD8150; see Figure 3-11. Use a standard, 9-pin serial
cable, wired straight-through.
For more information about using this connection, refer to Serial

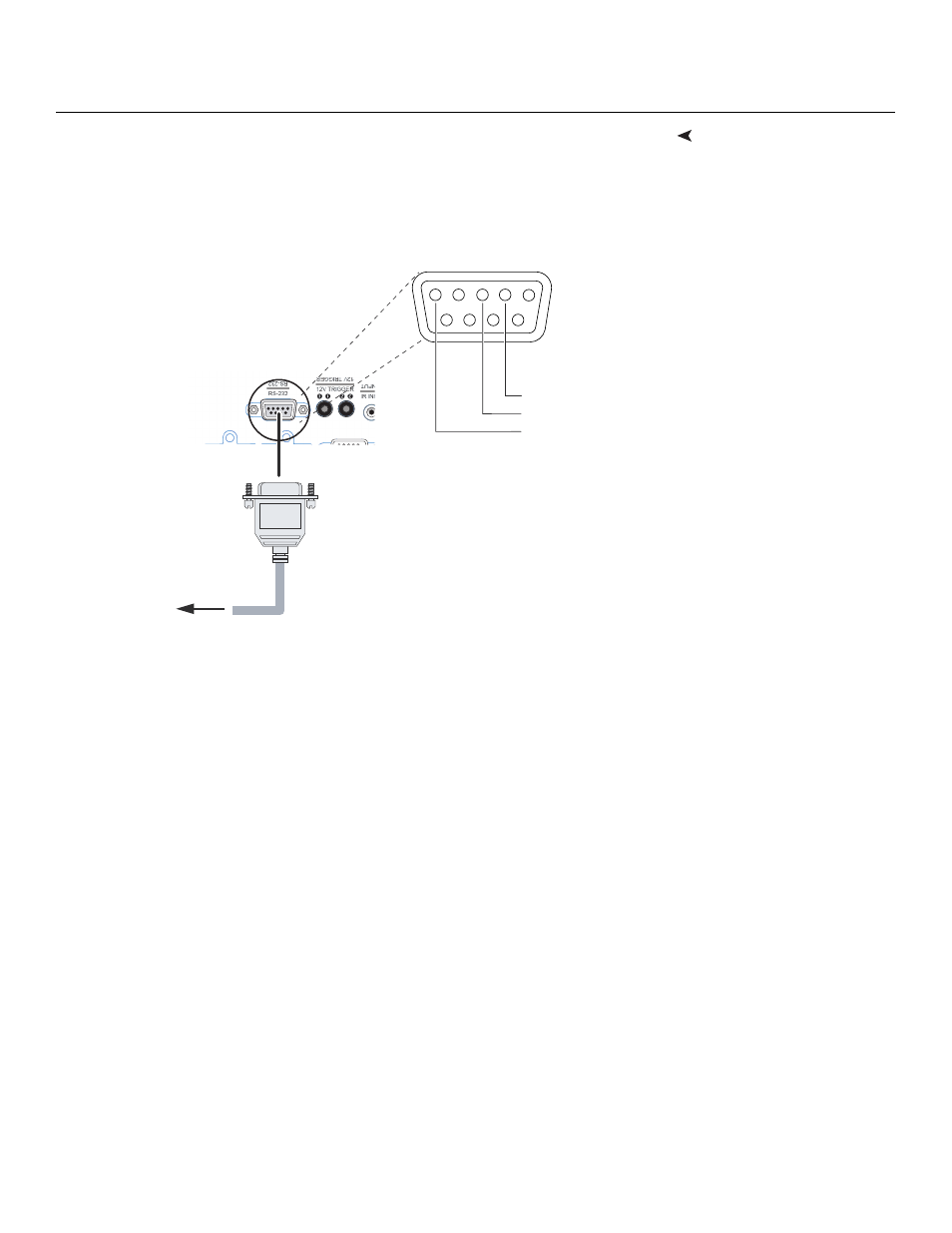

Figure 3-11. RS-232 Control System Connection
1
2
3
4
5
7
8
9
6
to Automation/
Control System
or PC
2 Transmit Data
3 Receive Data
5 Ground
(none of the other pins are used)
