9
3.2 Web Pages
To access the Web-browser interface you must first enter the password. The default password is "admin"
You will see the following screen comes out on the Web browser program:

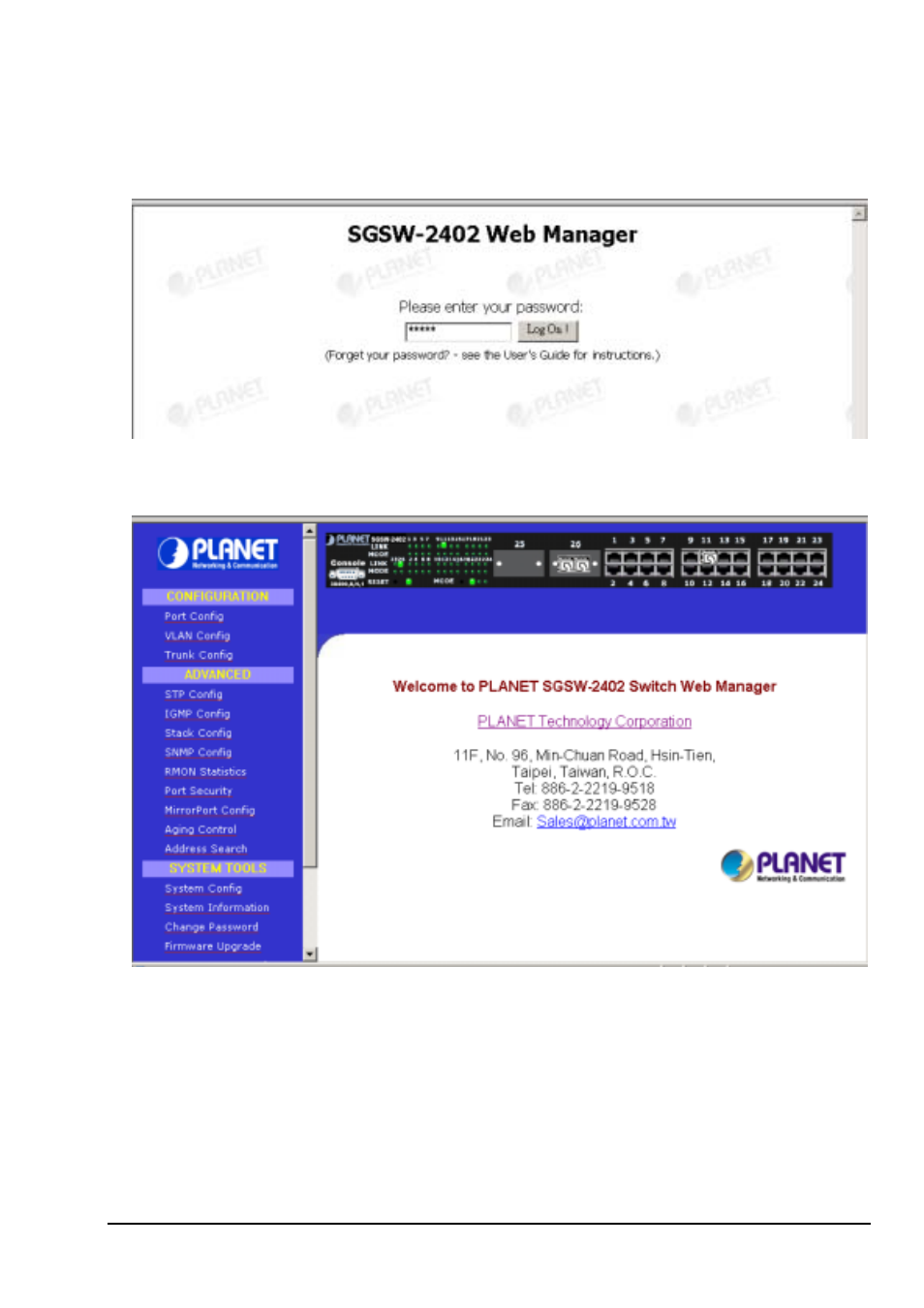

Figure 3-1 : Password Screen
After the password is entered you will see the main menu screen.
Figure 3-2: The start up screen of SGSW-2402 Web Page
3.3 Port Config
This section allows you to have an easy access in configuring the ports of the management Switch. Notice
that the “Link state” option indicates “Up”. This shows that the port is connected to the network. It can
either be in “Up” (Connected) or “Down” (No connection) state.
