2 Front speakers
(with cover plate) 2 Stands (with cable) 2 Bases 8 Screws
Speaker assembly
Preparation
• To prevent damage or scratches, lay down a soft cloth and perform assembly on it.
• For assembly, use a Phillips-head screwdriver.
• Make sure you have all the indicated components before starting assembly, setup, and connection.
• There is no difference between the right and left speakers and stands.
• For optional wall mount, refer to page 9.

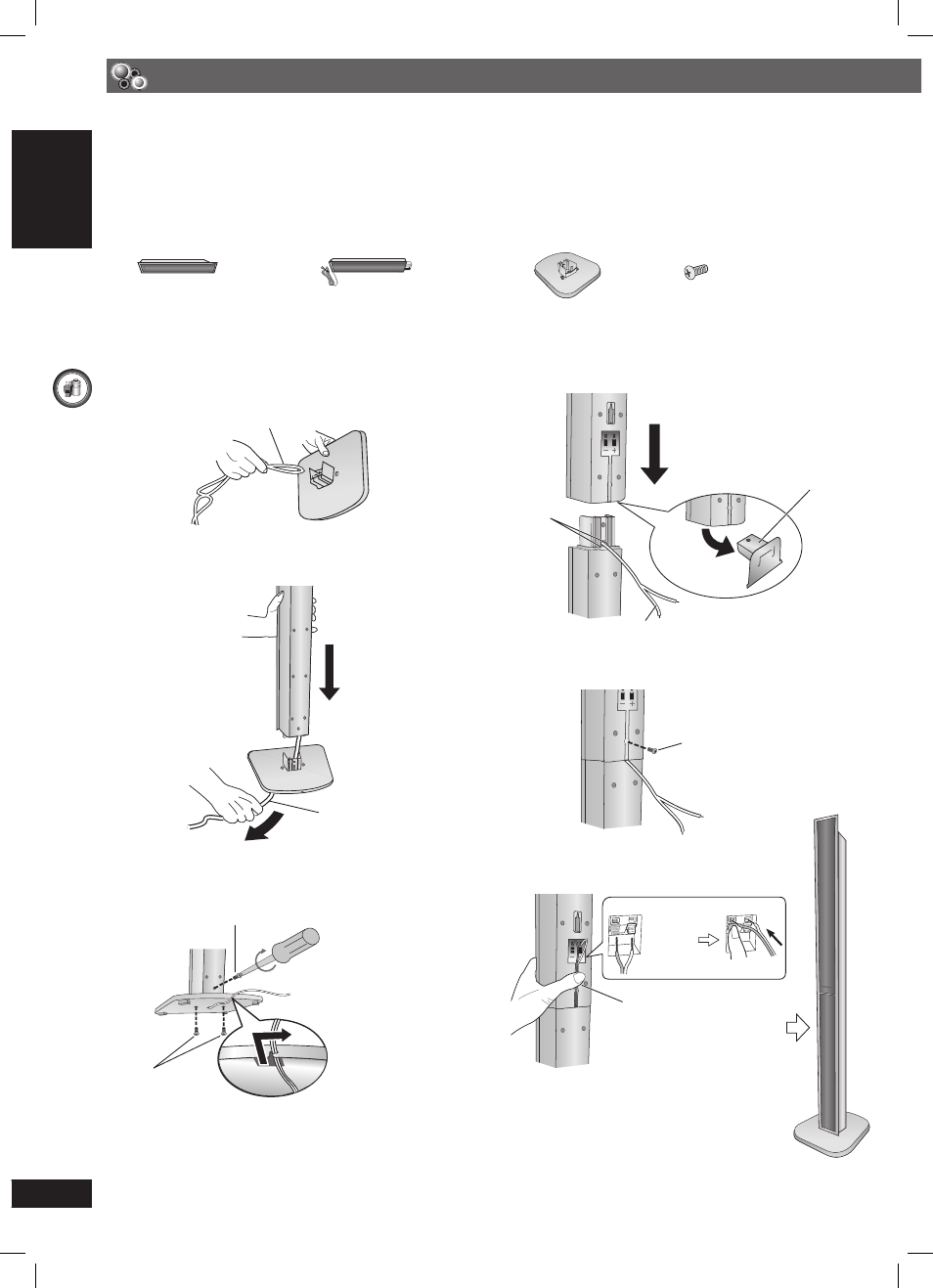

1 Attach the stand to the base.
1 Thread the speaker cable through the base.
For quicker threading, loosely fold the cable in half (do not
crease), pass the folded portion through the hole, and then
pull the rest of the cable through the base.
Cable
Base
2 Attach the stand to the base while gently pulling on the
end of the speaker cable.
Base
Stand
Cable
Pull gently.
2 Secure the stand to the base.
Screw
Tighten securely.
Base
Stand
Screw
Tighten securely.
2
1
Slide the speaker
cable into the groove.
3 Attach the speaker to the stand.
Pull out the end of the speaker cable and position it
between the ridges. Attach the speaker to the stand.
Cable
2
3
1 Cover plate
Remove before
attaching the speaker
and keep for wall-
mount use (
\ page 9).
Ridges
Speaker
Stand
4 Secure the speaker to the stand.
Stand
Speaker
Screw
Tighten securely.
Ensure the speaker
cable is
centered in the groove.
5 Connect the speaker cable.
Press the speaker
cable into the groove.
+: White
−: Blue
Push!
Insert the wire fully.
