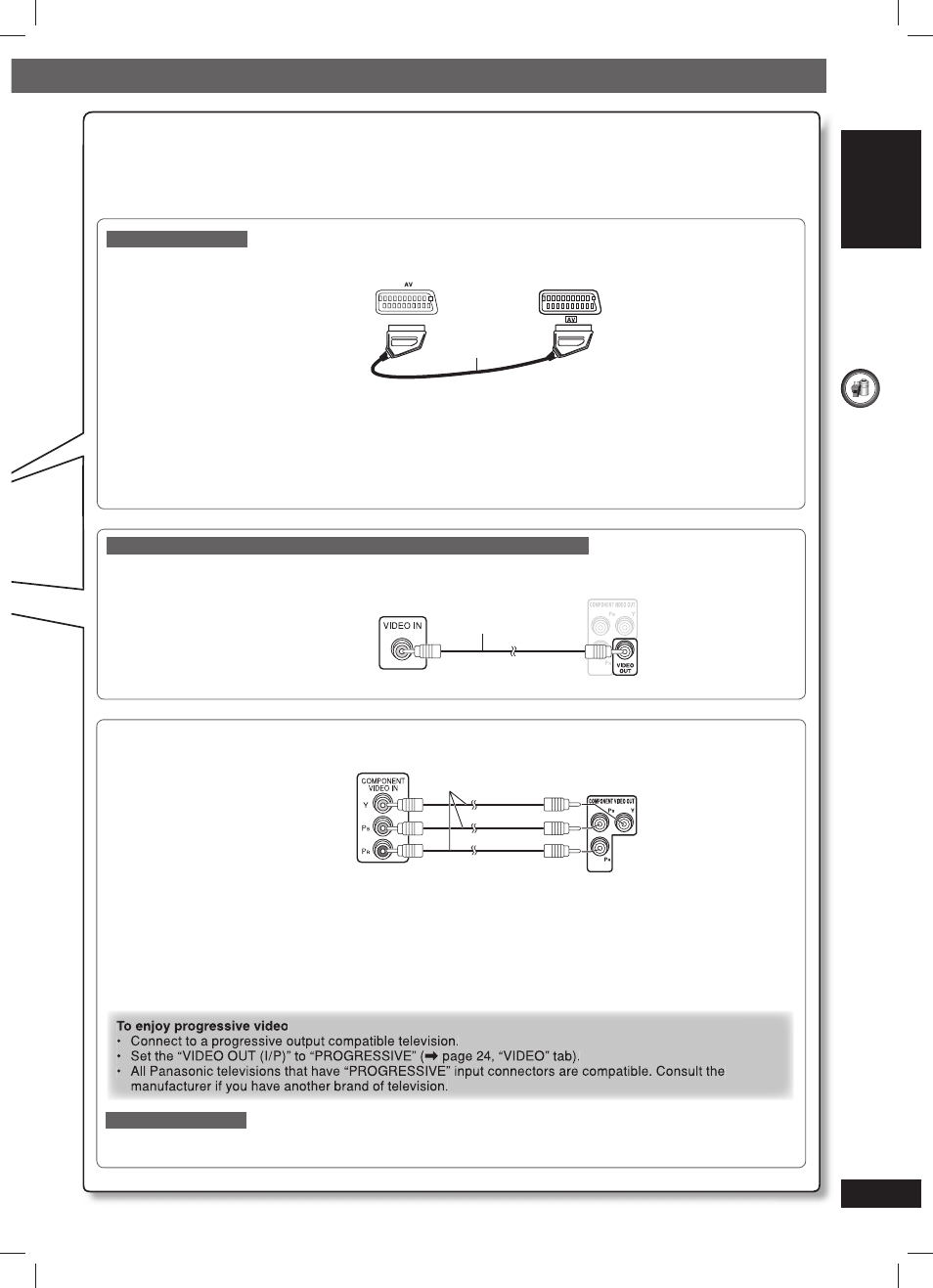

Connect to the various television terminals.
• Do not connect the unit through a video cassette recorder.
• Due to copy guard protection, the picture may not be displayed correctly.
• Turn the television off before connecting, and refer to the television’s operating instructions.
For Continental Europe
■ Television with SCART terminal
Television
(not included)
SCART cable
(not included)
Using the SCART (AV) terminal
To improve picture quality, you can change the video signal output from the SCART (AV) terminal from “VIDEO”
to either “S-VIDEO” or “RGB” to suit the type of television you are using. Select “S-VIDEO/YPbPr” or “RGB/NO
OUTPUT” from QUICK SETUP (
\ page 12).
This connection will also enable you to play audio from your television through your home theater system. Refer to
“Operating other equipment” (
\ page 32).
■ Television with COMPONENT VIDEO IN terminals
Television
(not included)
Video cables
(not included)
Using the COMPONENT VIDEO OUT terminals
These terminals can be used for either interlaced or progressive output. Connection using these terminals
outputs the color difference signals (P
B
/P
R
) and luminance signal (Y) separately in order to achieve high fi delity in
reproducing colors.
• The description of the component video input terminals depends on the television or monitor (example: Y/P
B
/P
R
,
Y/B-Y/R-Y, Y/C B /C R ).
• Connect to terminals of the same color.
For Continental Europe
• Panasonic televisions with “PROGRESSIVE” input terminals are progressive compatible. Consult the
manufacturer if you have another brand of television.
For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait
■ Television with a VIDEO IN terminal
Television
(not included)
Video cable
(included)
