12 Enjoying through External Equipment
English
59
En

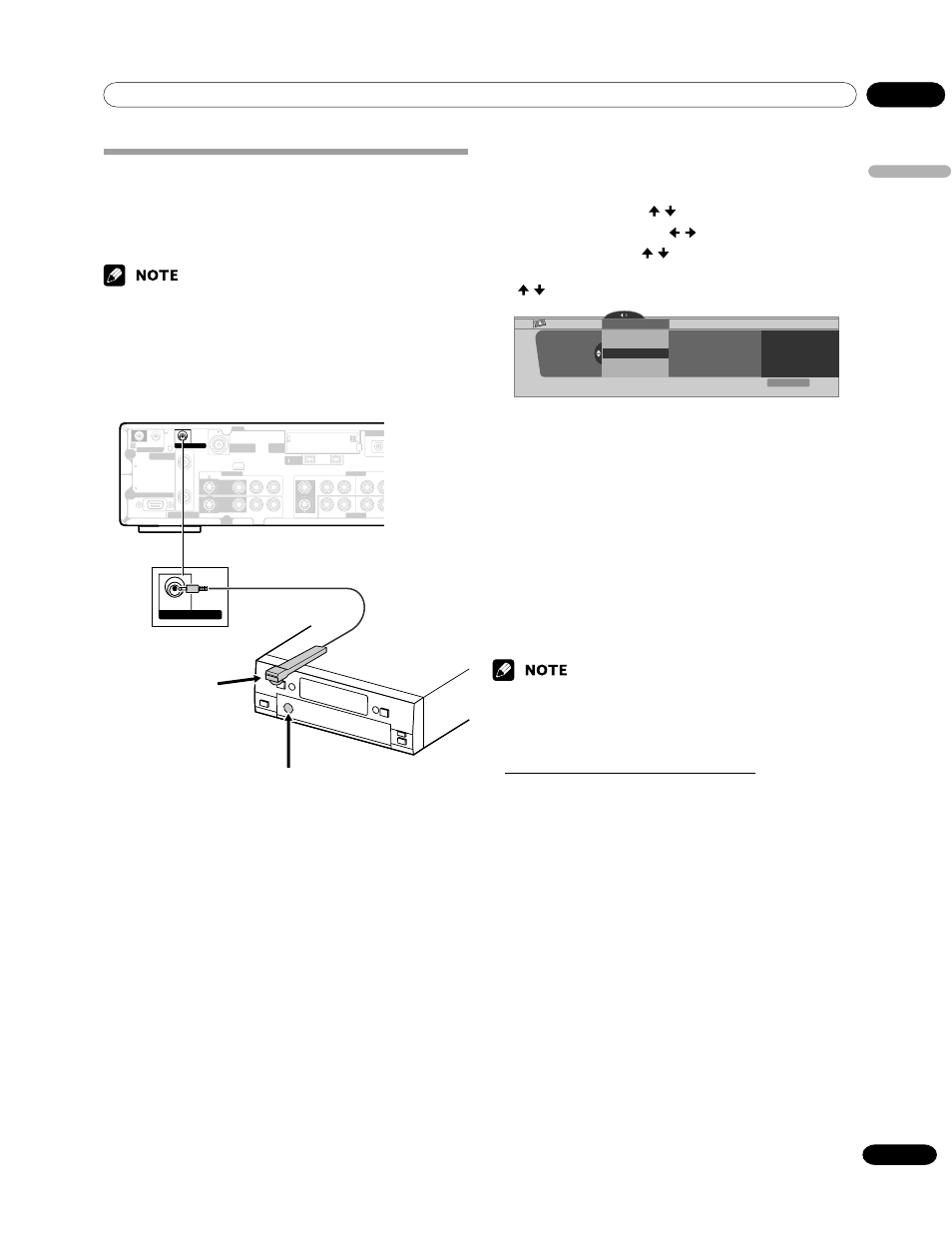

Connecting the VCR controller
Connect the supplied VCR controller to the Media Receiver. This
allows you to preset digital TV programs for recording; see page
48. When the specified time comes, the system in the standby
mode is automatically switched on and the specified TV
program is recorded using the connected VCR or DVD recorder.
• Make sure to leave the VCR power on when presetting TV programs
for recording with the VCR controller.
• Be sure to firmly connect the VCR controller to the VCR control
terminal on the rear of the Media Receiver. If you have mistakenly
connected it to the CONTROL IN or CONTROL OUT terminal, remote
control or other operations may be disabled.
Media Receiver (rear view)
VCR or DVD
recorder
(Once you have positioned the
VCR controller, secure with the
supplied tape.)
Position the light
emitting section
on the VCR
controller cable
so that it faces
the VCR.
Remote control sensor
VCR CONTROL
MONITOR OUT
VCR CONTROL Cable
CARD ANTENNA/
CABLE A IN
ANTENNA B
CONTROL
I N OUT
S-VIDEO INPUT 2
INPUT 3 S-VIDEO VIDEO
VIDEO R-AUDIO-L
R-AUDIO-L
COMPON
Y
Y
CB/
CB/
S-VIDEO R-AUDIO-L
R-AUDIO-L VIDEO
S400
DIGITAL O
OPTICA
SERVICE ONLY
INPUT 3
INPUT 1
IN
OUT
Cable
CARD
(TS)
Use the following procedure to set the manufacture of the
recording equipment:
1 Press HOME MENU.
2 Select “Tuner Setup”. ( / then ENTER)
3 Select “Recorder Setup”. ( / then ENTER)
4 Select “VCR Setup”. ( / then ENTER)
5 Select the manufacture of the recording equipment.
( / then ENTER)
VCR Setup
• XXXXX VCR Setup
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx
XXXXX
XXXXX
Exit Home Menu
Recorder Setup
• The screen for recording test appears.
6 Check that the power to the recording equipment is on,
and insert tape into the slot.
• Insert tape you think it all right to erase its contents.
The contents will be erased because Rec and Stop
codes are output in the test.
• Check that the light emitting section on the VCR
controller cable faces the recording equipment.
7 Press A to execute recording test.
• If the recording equipment fails to start and stop
recording, check and change the specified recording
equipment manufacture.
8 Press A to select “Yes, Store Setting”.
9 Press HOME MENU to exit the menu.
.
• Even if you correctly specify the manufacture of the recording
equipment, control of some models may be disabled.
• Perform the recording test when the recording equipment is not in
recording standby or is not recording.
• The recording test takes approximately 10 seconds.
• The PIONEER has been set as the factory default.
