Adjusting the Viewfinder
(The viewfinder shown in the illustration is the optional AJ-VF10P.)

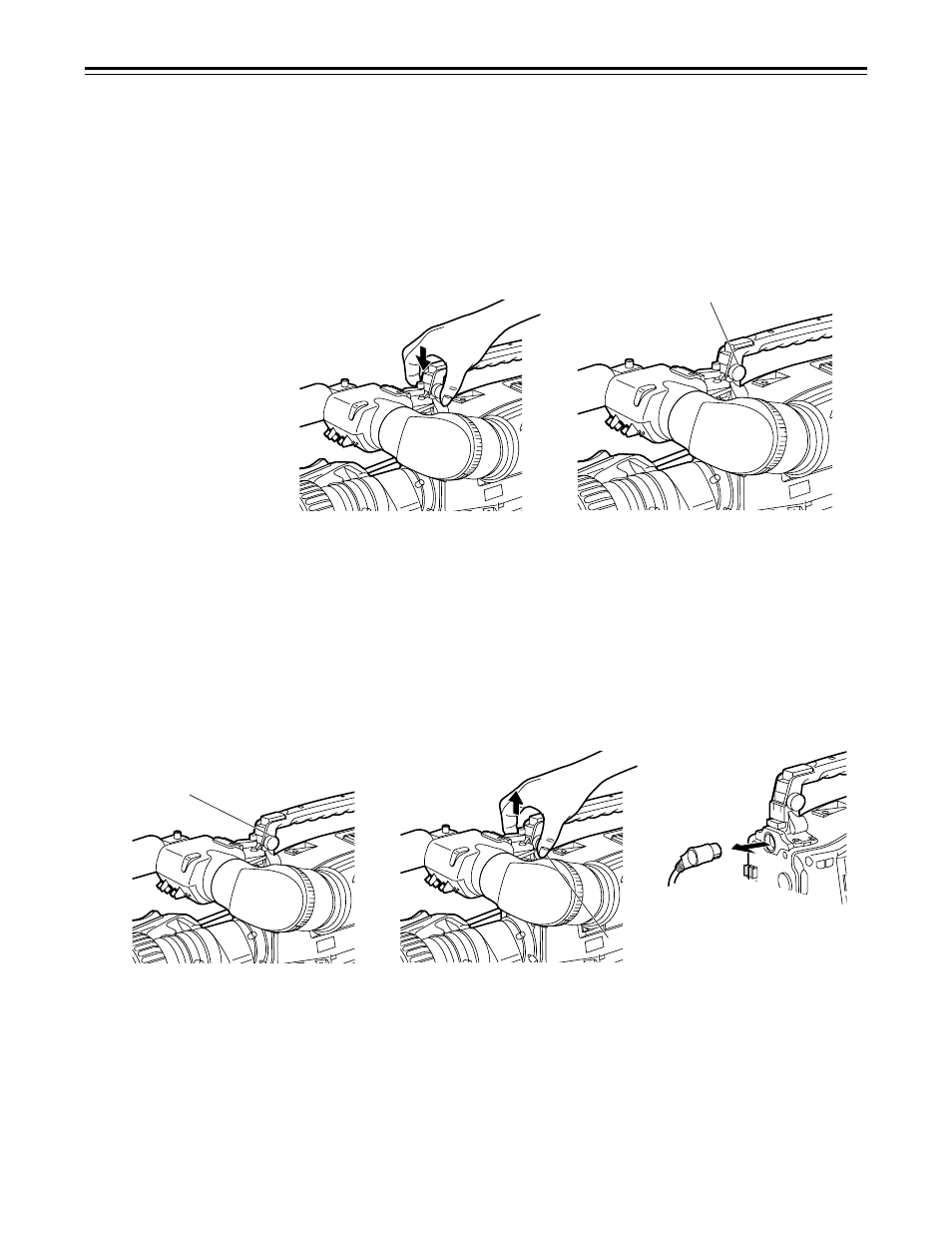

Mounting the Viewfinder
1
Press down the viewfinder.
2
Tighten the viewfinder stopper screw firmly. If it is difficult to insert the screw, press down the
viewfinder once again.
3
Connect the plug to the viewfinder connector and secure the viewfinder cable with the clamp.
| Note {
Insert the plug firmly when connecting it to the viewfinder connector.
Detaching the Viewfinder
1
Check that the POWER switch is set to OFF.
2
Disconnect the plug from the viewfinder cable connector.
|
Note
{
Use both hands to detach the viewfinder. The viewfinder may not detach smoothly with one
hand, resulting in damage to the viewfinder.
3
Loosen the viewfinder stopper screw and detach the viewfinder by pulling it straight up.
Hook your fingers here.
Stopper Screw
Pull straight up.
Stopper Screw
