25
Main Menu
(continued)

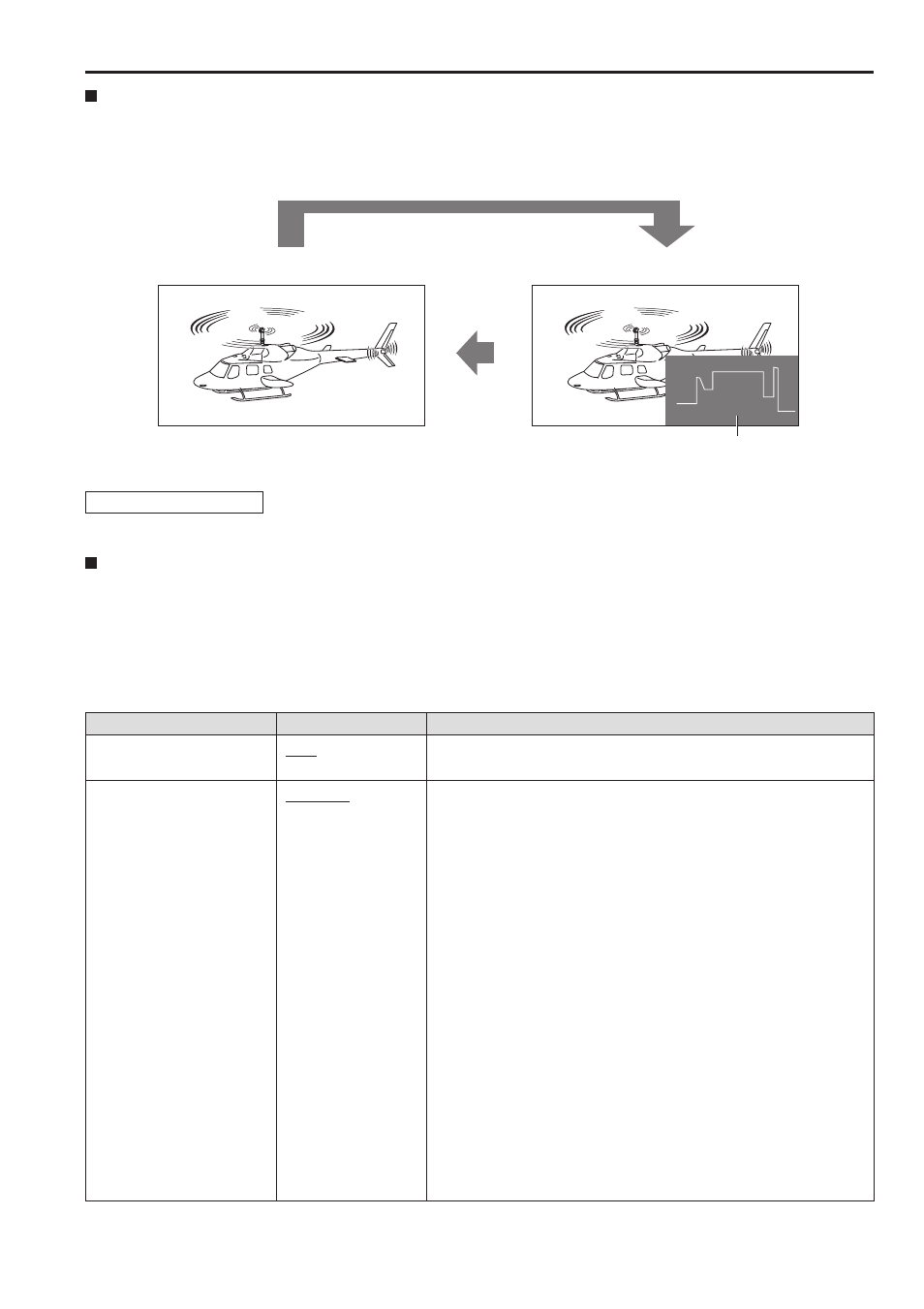

About WFM
You can display the wave form monitor using the “WFM” function.
The display changes each time you press one of the buttons, [FUNCTION1] to [FUNCTION3] (→ page 23),
assigned with the [WFM] function (To use the “WFM” function, you must assign it to one of the [FUNCTION1] to
[FUNCTION3] buttons).
Press the FUNCTION button assigned
with the WFM function once.
Normal window WFM display
Press the
same button
again.
WFM (Wave Form Monitor)
The window is displayed in 16:9 aspect.
WFM is not displayed while using the PIXEL TO PIXEL or FOCUS-IN-RED function.
About PIXEL TO PIXEL and PIXEL POS. +/–
Using the “PIXEL TO PIXEL” function, you can confirm a picture with the actual pixel count (only when the input
is an HD signal).
First, press one of the buttons, [FUNCTION1] to [FUNCTION3] (→ page 23), assigned with the “PIXEL TO PIXEL”
function to turn it “ON”. With the function on, press another one of the buttons, [FUNCTION1] to [FUNCTION3]
(→ page 23), assigned with “PIXEL POS. +” or “PIXEL POS. –”. Each time the button assigned with “PIXEL POS.
+/–” is pressed, the signal display position switches.
Restrictions on WFM
The underlined values are factory preset setting values.
Sub menu Settings Explanation
PIXEL TO PIXEL OFF
ON Used to set the display of the screen size to the input signal
size.
PIXEL POS.+∗ 1
PIXEL POS.–∗ 1
CENTER
LEFT TOP
LEFT MID
LEFT BOTTOM
MID TOP
MID BOTTOM
RIGHT TOP
RIGHT MID
RIGHT BOTTOM Used to set the signal display position when PIXEL TO PIXEL
is on.
HD signal 1080i
2
bottom left
Screen top center*
2
Screen bottom center* 2
top right
Screen right center*
2
bottom right
HD signal 720P
SD signal
∗1 PIXEL POS. + and – operate as follows.
∗2 Refer to the next page.
