11

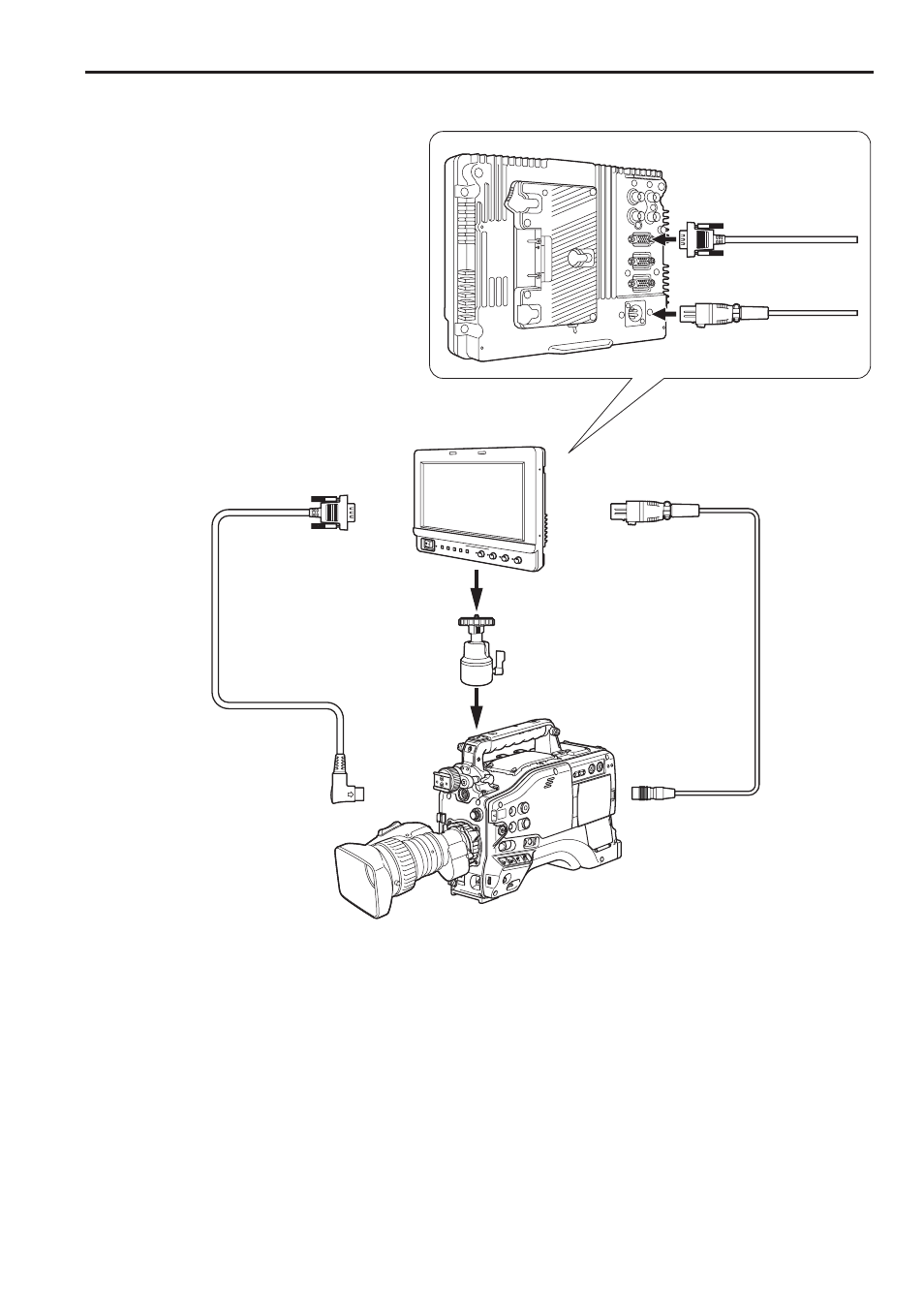

VF Function
The unit can be connected to broadcasting and business cameras made by Panasonic and used as a VF
(viewfinder).
BT-LH80W
VF cable
(Option)
DC cable
(Option)
VF cable
(Option)
Part number:
BT-CS80G DC cable∗ 1
(Option.
Included with
the BT-CS80G.)
Camera platform ∗ 2
(commercially available)
Camera side
DC OUT terminal
(1.5 A output)
Camera side
VF terminal
∗1 Broadcasting and business camera-recorders compatible with a DC power supply (output current of 1.5 A)
AJ-HDC27H
AJ-HDX900
AJ-HPX2000 / 2100
AG-HPX500 / 502
Other cameras or camera-recorders cannot be used because they have an output current of 1 A or 0.1 A.
Use a battery or external DC power supply.
Contact your vendor for details of broadcasting and business camera-recorders that will be launched in the
future.
∗2 Use a camera platform that can fully withstand the weight of the unit (1.5 kg (3.3 lb)).
