SEAT REMOVAL
You may wish to remove the seat for transportation. If you have a Versa Seat, please refer to the Versa Seat
Installation and Adjustment guide.
To remove the seat:
1. Turn the power off.
2. Make sure your Jazzy is not in freewheel mode.
3. Unplug the main wire harness behind the seat.
4. Simultaneously depress the two plungers on the front of the seat
frame while lifting the front of the seat. See figure 24.
5. Lift the seat up and gently lower it back onto the front seat towers.
6. Pull the seat forward and lift it off of the rear seat towers.
BODY SHROUD REMOVAL
The body shroud is a one-piece, molded plastic body that covers the power base frame. It helps protect the Jazzy
components from the environment. It also provides mounting points for lights and the standard light switch. You
must remove the body shroud in order to change the batteries and check the cable connections.
To remove the body shroud:
1. Turn the power off.
2. Make sure your Jazzy is not in freewheel mode. See IV. The Jazzy 1104.
3. Unplug the controller wiring harness.
4. Remove the seat.
5. Disconnect the lighting harness (if your Jazzy is equipped with lights).
6. Lift the body shroud straight up. The body shroud is attached to the metal frame by reusable fasteners. The body
shroud should lift up easily.
WARNING! Your Jazzy 1104 batteries are heavy. Refer to the specifications table. If you are unable
to lift that much weight, be sure to get help. Lifting beyond your capacity can result in personal
injury.
BATTERY REMOVAL
To remove the batteries:
1. Turn the power off.
2. Remove the body shroud.
3. Remove the battery post caps (both red and black).
4. Unscrew the wing nuts on (+) red battery terminals, one at a time.
5. Remove the (+) red battery cables from the battery posts; be sure to secure the terminals away from the batteries.
6. Loosen the wing nuts on (-) black battery terminals.
7. Remove the (-) black cables and secure the terminals away from the batteries.
8. You can now remove the batteries from your Jazzy 1104.
V I I . D I S A S S E M B L Y

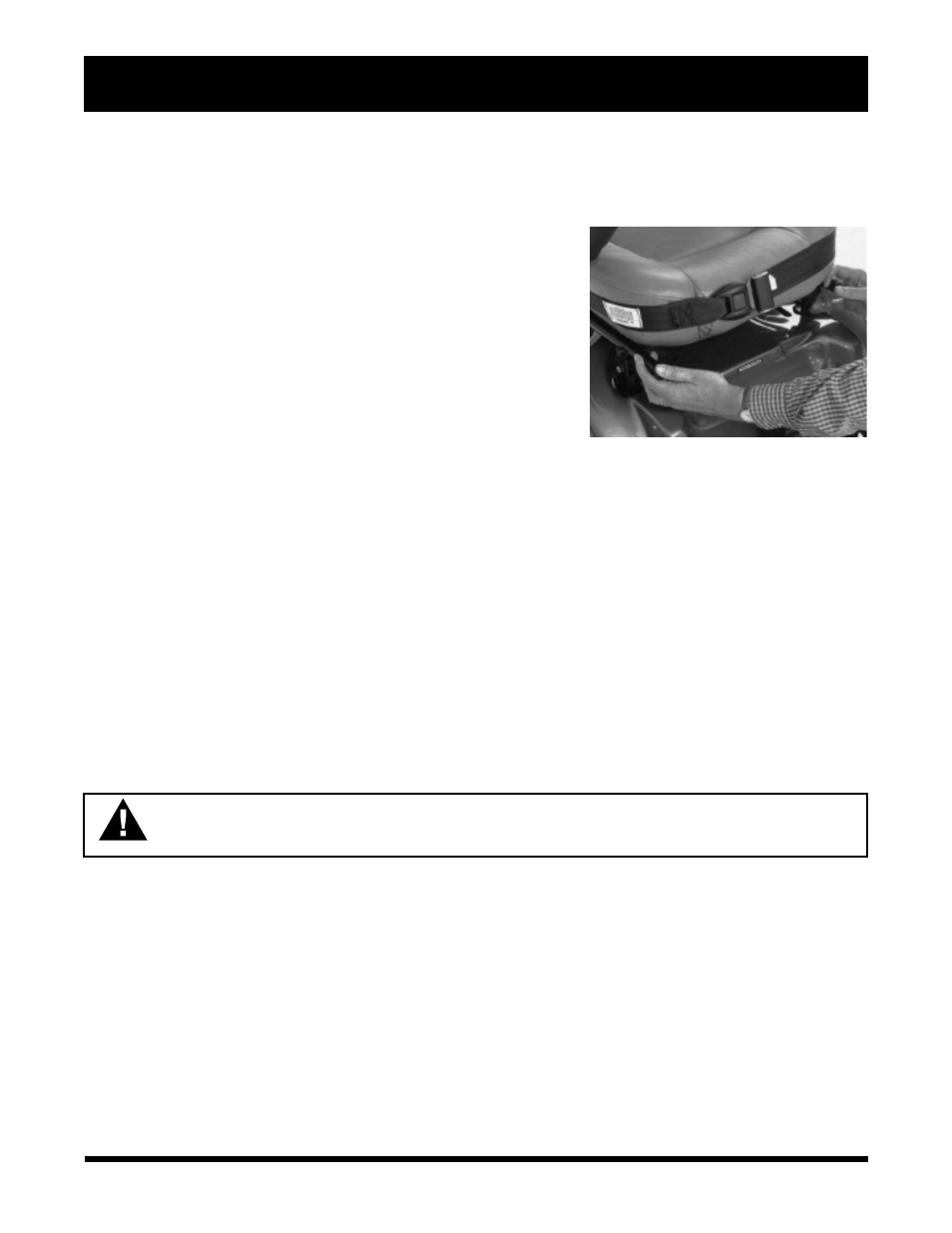

Figure 24. Removing The Seat
