V I . C O M F O R T A D J U S T M E N T S

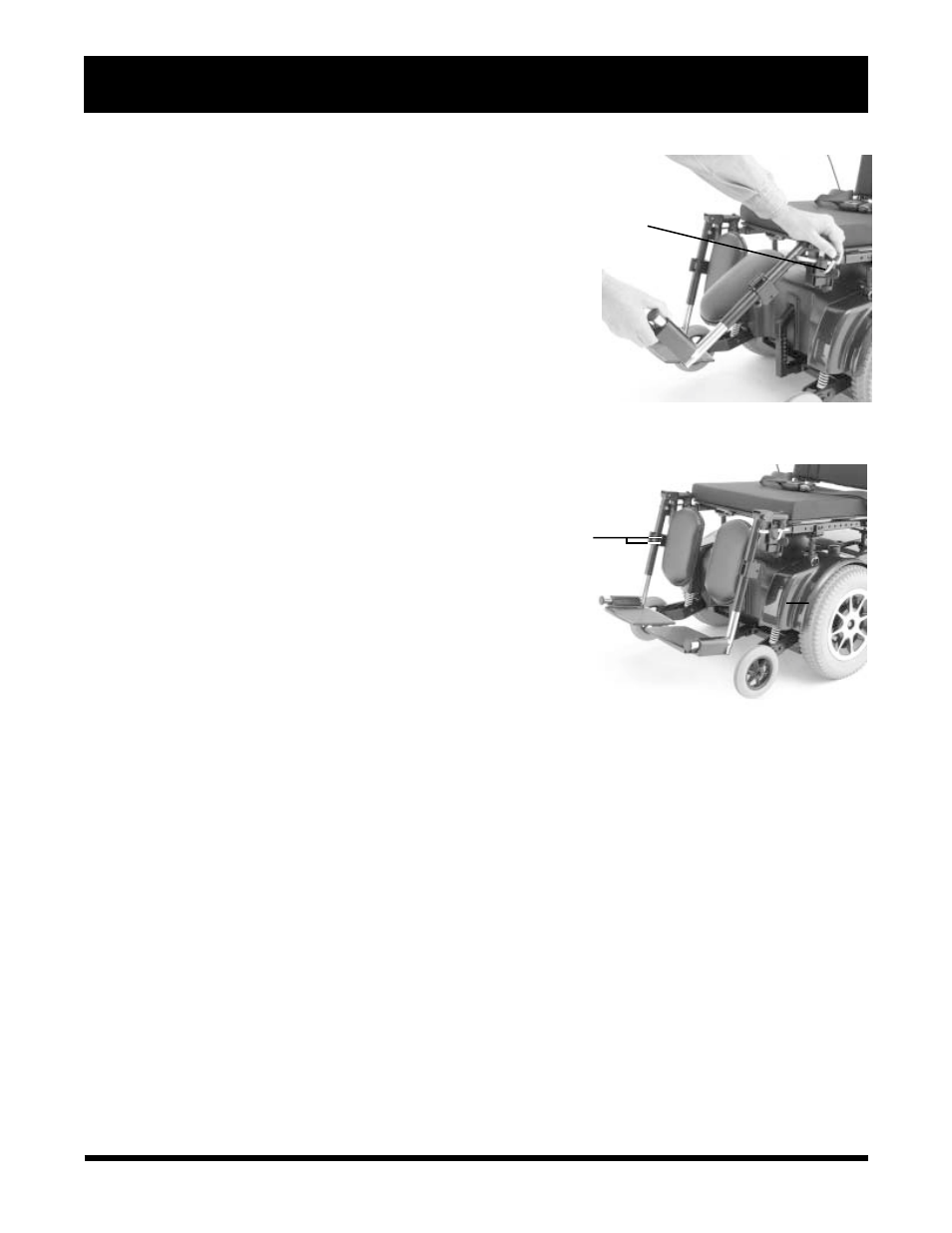

Figure 22. Elevating Leg Rests
RELEASE LEVER
Figure 23. Elevating Leg Rests
LEG REST
ADJUSTMENT
SCREWS
ELEVATING LEG RESTS OPTION
Elevating Leg Rests (ELRs) offer an infinite range of
adjustment between 0 and 70 degrees for the leg angle
and a footrest adjustment range of 15 – 20 in.
To adjust the ELR angle:
1. Press the release lever. See figure 22.
2. Move the leg rest to the desired angle.
To adjust the ELR footrest height:
1. Remove the two screws from the side of each leg
rest extension. See figure 23.
2. Loosen the bolt on the side of each leg rest
extension.
3. Slide the leg rest in or out to the desired length.
4. Tighten the bolt and reinstall the two screws on
each leg rest extension.
HIGH BACK WITH HEADREST OPTION
If your Jazzy is equipped with the deluxe high-back
seat, you can adjust the headrest height.
To adjust the headrest height:
1. Push in the headrest release button.
2. Move the headrest up or down to the desired po-
sition.
