24 www.pridemobility.com Jazzy 1104 Rev F/Feb03
V I . C O M F O R T A D J U S T M E N T S

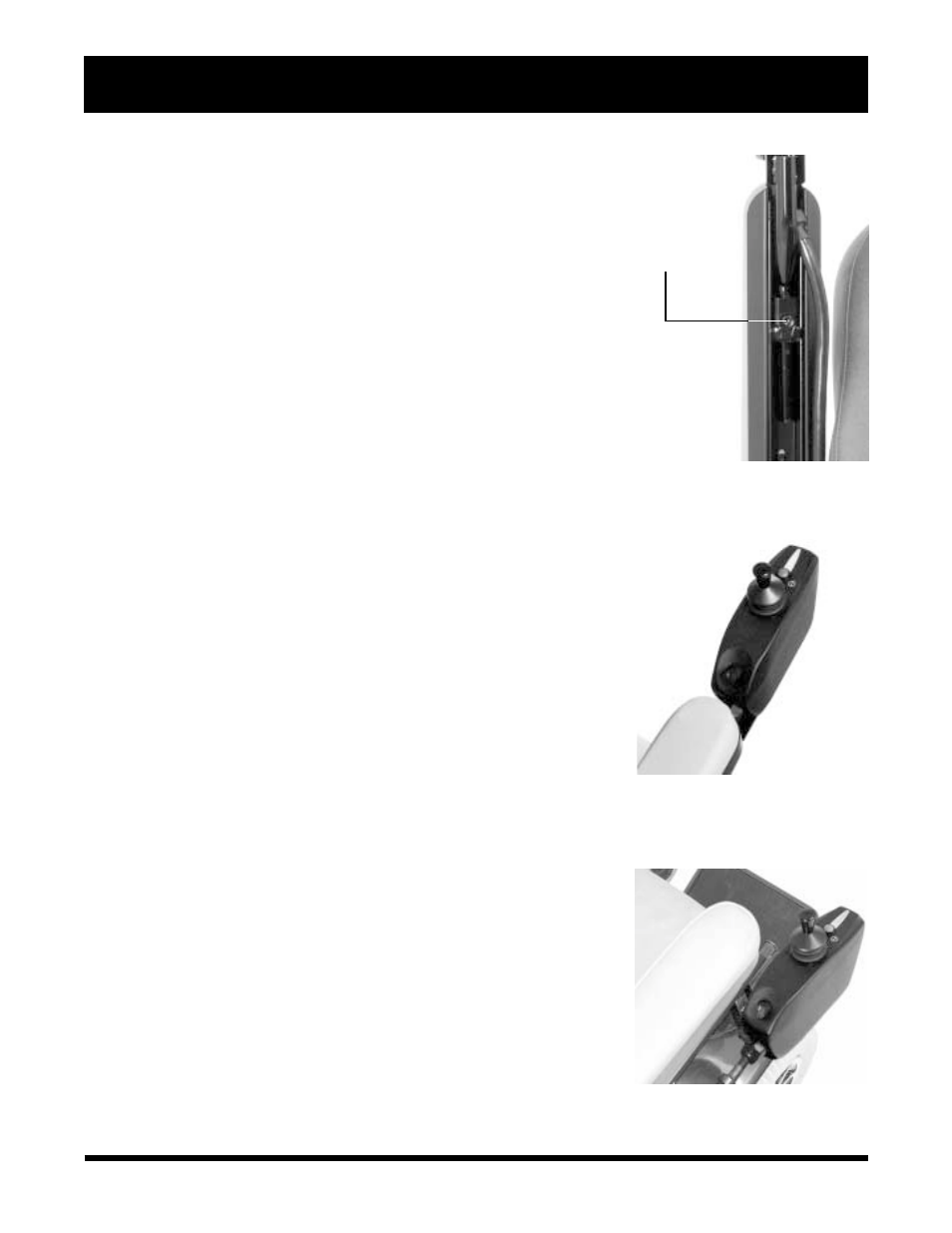

Figure 16. Joystick Extension
LOOSEN THIS
SETSCREW
TO ADJUST
JOYSTICK
Figure 18. Swing-away Joystick
(Retracted Position)
Figure 17. Swing-away Joystick
(Forward Position)
ARMREST ANGLE
You can adjust the armrest angle to fit your specific needs.
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to the
floor.
2. Use a 7/16-in. wrench to loosen the jam nut. See figure 15.
3. Use a 5/32-in. hex key to loosen the adjusting screw.
4. Turn the screw clockwise to lower the front of the armrest, or turn
the screw counterclockwise to raise the front of the armrest.
5. Lock the adjusting screw into place by tightening the jam nut.
ARMREST HEIGHT (OPTIONAL)
Your Jazzy may be equipped with height-adjustable armrests.
To change the armrest height:
1. Loosen the setscrew located underneath the armrest using a
3/16-in. hex wrench.
2. Remove the ball detent pin from the armrest.
3. Move the armrest up or down to the desired height.
4. Align the holes and reinsert the ball detent pin.
5. Retighten the setscrew.
JOYSTICK EXTENSION
The joystick control can easily slide out away from the armrest or
in toward the armrest.
To extend the joystick:
1. Use a 3/16-in. hex wrench to loosen the setscrew. See figure 16.
2. Slide the joystick mounting bracket into or out of the armrest
to the desired position.
3. Tighten the setscrew by turning it clockwise.
SWING-AWAY JOYSTICK
Your Jazzy may be equipped with a swing-away joystick. This
option enables you to move the joystick from the front of the arm-
rest to the side of the armrest, without disconnecting it. See fig-
ures 17 and 18.
JOYSTICK POSITION
The standard joystick can be mounted to the left or right side of
your Jazzy. Contact your authorized Pride provider.
