22 www.pridemobility.com Jazzy 1104 Rev F/Feb03
To install the seat:
1. Set the seat on the rear seat towers. See figure 9.
2. Push the seat back and down until the latches engage on the front seat towers. See figure 10.
3. Plug the controller cable into the connector on the utility tray. See figure 11.
4. Plug the power seat switch cable (if so equipped) into the connector on the utility tray.
5. Secure the controller cable to the armrest receiver with one or more wire ties.
6. Route the cable to ensure that the cable cannot be pinched in the seat hinge.
JOYSTICK INSTALLATION
Depending on the various configurations and options you have chosen for your Jazzy, it may have been
shipped without the joystick installed in the armrest.
To install the joystick:
1. Use a 3/16-in. hex wrench to loosen the setscrew. See figure 12.
2. Slide the joystick mounting bracket into or out of the armrest to the desired position.
3. Retighten the setscrew by turning it clockwise.
V . A S S E M B L Y

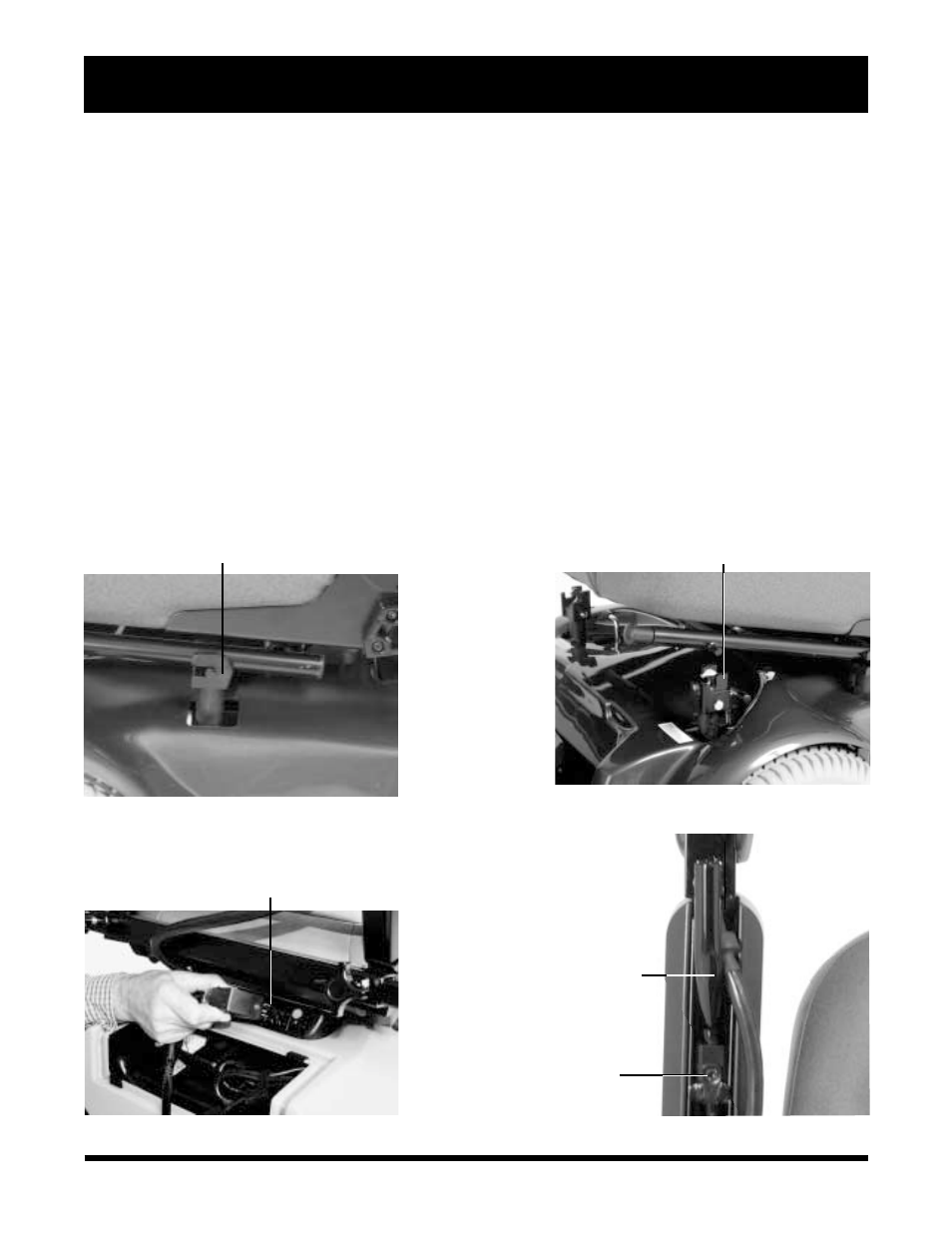

Figure 9. Rear Towers
SLIDE SEAT ONTO TOWERS
Figure 10. Front Towers
LOCK SEAT INTO PLACE HERE
Figure 11. Controller Cable
PLUG IN CONTROLLER CABLE
Figure 12. Joystick
SLIDE JOYSTICK
INTO BRACKET
SETSCREW
