Jazzy 1104 Rev F/Feb03 www.pridemobility.com 23

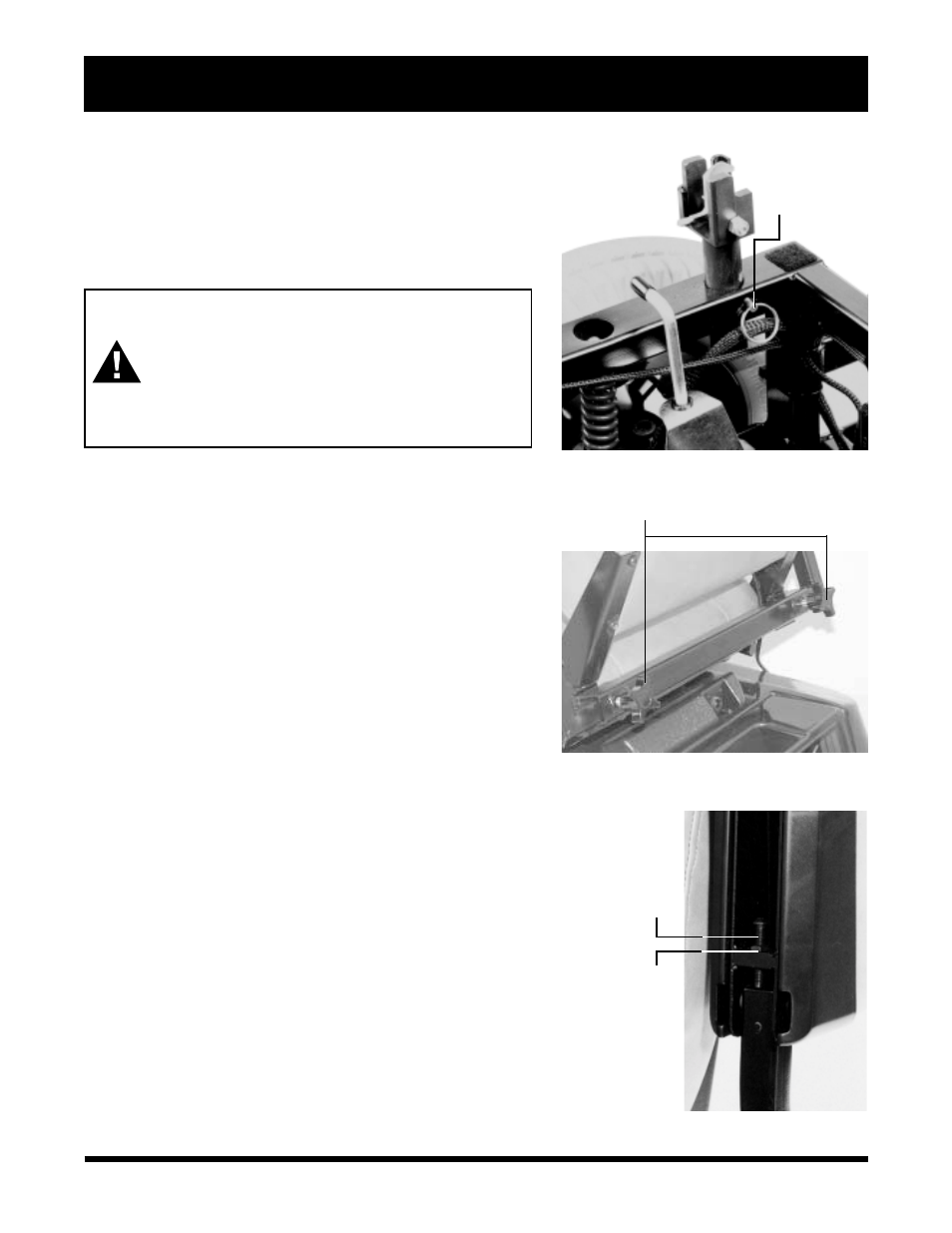

Figure 15. Armrest Angle Adjustment
TURN THIS SCREW
TO CHANGE
ARMREST ANGLE
JAM NUT LOCKS
ADJUSTMENT
SCREW IN PLACE
V I . C O M F O R T A D J U S T M E N T S
Figure 13. Seat Tower Ball Detent Pin
EACH SEAT
TOWER HAS A
BALL DETENT PIN
LOOSEN KNOBS TO MOVE ARMREST
Once you are familiar with your Jazzy’s operation, you may
find the need to adjust your seating position. There are some
adjustments you can make to increase your comfort, such as
seat height and angle, armrest height and angle, footrest height
and angle, and joystick position.
SEAT HEIGHT AND ANGLE
You can change the seat height by one of two ways: either
manually or automatically.
To change the seat height:
1. Remove the seat. See VII. “Disassembly” in this manual.
2. Remove the shroud.
3. Remove the ball detent pin from each seat tower. See
figure 13.
4. Raise or lower each seat tower to the desired position.
5. Install the ball detent pin into each seat tower.
6. Reinstall the shroud.
7. Install the seat.
To change the seat angle:
You can change the seat angle by either raising or lowering
only one set of seat towers (front or rear).
ARMREST WIDTH
To change the armrest width:
1. Locate the two knobs on the armrest receiver bracket. See
figure 14.
2. Loosen the knobs and slide the armrests in or out to the
desired width.
3. Tighten the knobs.
Figure 14. Armrest Width
WARNING! If your Jazzy 1104 was config-
ured at your authorized Pride provider or ser-
vice center, please consult your health care
professional before changing the seat posi-
tion or making any other adjustment. Some
adjustments may degrade your Jazzy’s per-
formance and safety by changing its center
of gravity.
