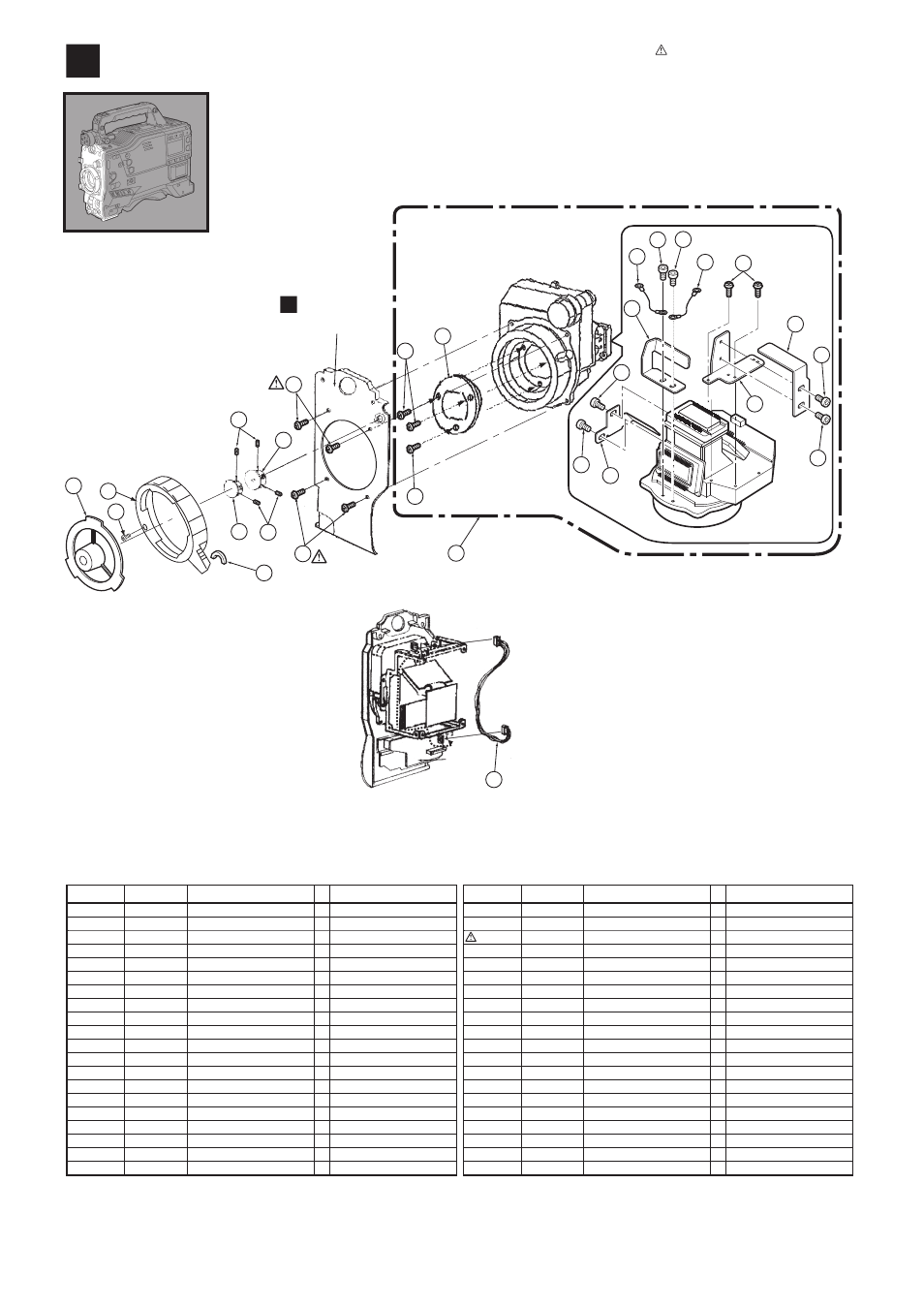

FRONT CASE
SECTION
52
52
57
57
11
17
4
5
21
20
60
53
53
F
18
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
CAMERA ASS'Y (VEQ4535) H-51 XQN2+C4FJ SCREW 2
H-52 XSB3+6FJK SCREW 4 H-2 VEE1C32 ND/CC FILTER CABLE ASS'Y 1
H-53 XXEV26W3FP HEX SCREW 4 H-4
VGU8686 FILTER KNOB (ND) 1 H-57 XQS2+A4FJK SCREW 3 H-5
VGU8687 1 FILTER KNOB (CC)
H-11 VYQ3863 HEAD OPTICAL ASS'Y 1 H-59 XYN26+F6FJ SCREW 6
H-61 XQN2+A4FJK SCREW 1
H-29 VEE2804 GND CABLE 2
H-14 VMA0T71 HEAT SINK (R) 1
H-15 VMA0T72 HEAT SINK (G) 1
H-16 VMA0T73 HEAT SINK (B) 1
H-17 VXQ1446 LPF ASS'Y 1
H-18 VDS0169 MOUNT CAP 1
H-20 VDW1228 MOUNT RING 1
H-21 VMA0N88 PIN GUIDE 1
H-23 VMA0U87 HEAT SINK BASE 1
CAMERA ASSEMBLY (2)
PRT-10
(Page PRT-8)
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.
