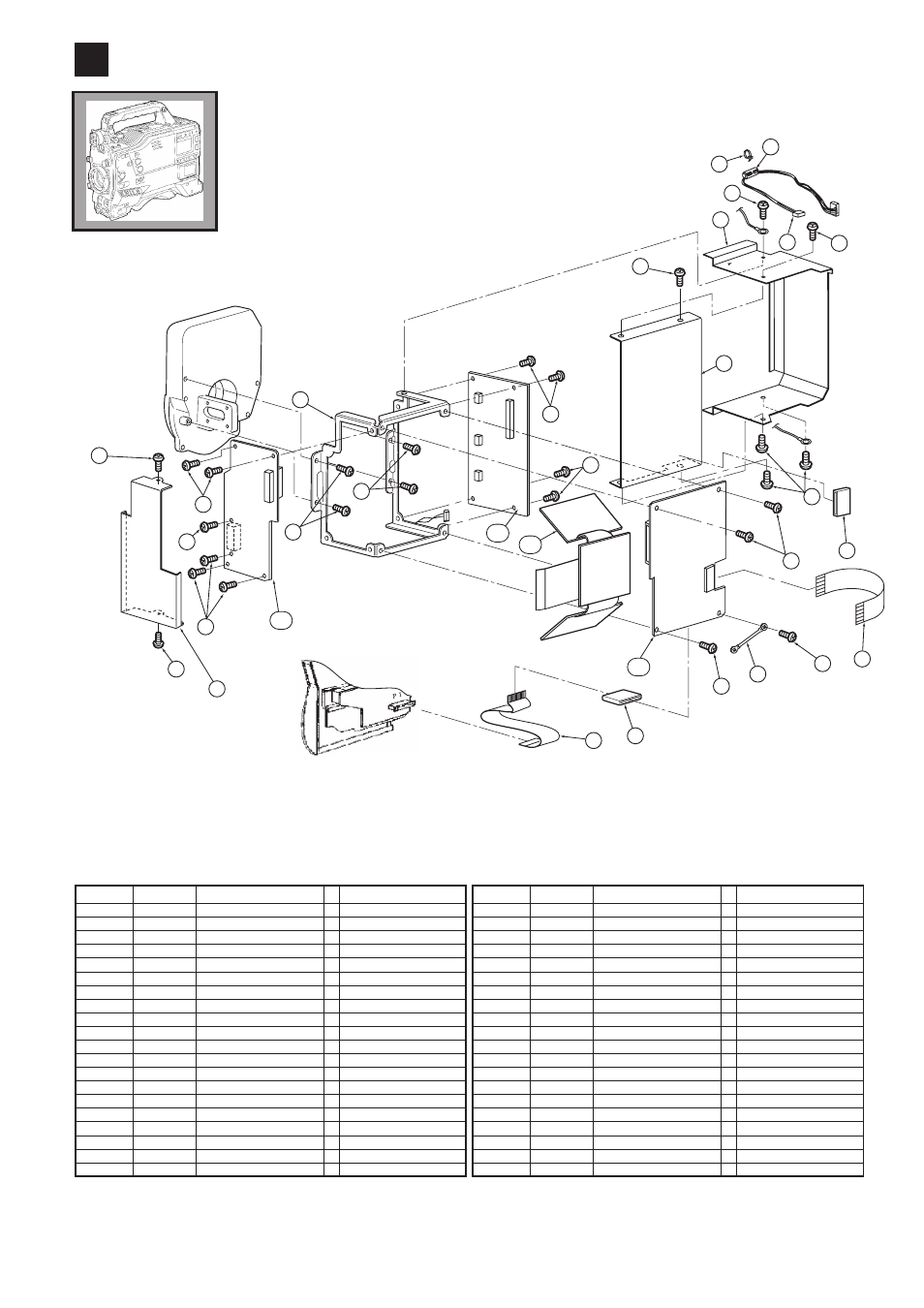

CAMERA ASSEMBLY (1)
PRT-9
H
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
CAMERA ASS'Y (VEQ4535)
H-3 VEE0X28 EARTH CABLE 1
H-6 VMP8675 P.C.BOARD HOLDER ANGLE 1
H-31 VWJ10G8037L1 SENSOR FFC 1
H-32 J0KG00000001 FERRITE CORE 1
H-33 VJF1158 BIND 1
H-34 VEE1C34 PREAM CABLE ASS`Y 1
H-9 VWJ14G8065L0 FRONT PULSE FFC 1
H-E1 VEP20B25C CCD SENSOR P.C.BOARD 1
H-E2 VEP23650A DRIVE P.C.BOARD 1
H-12 VSC5864 SHIELD CASE (DRIVE) 1
H-E3 VEP23653A PULSE P.C.BOARD 1
H-13 VSC5865 SHIELD CASE (PULSE) 1
H-22 J0KD00000070 FERRITE CORE 1
H-E5 VEP23652A PRE AMP P.C.BOARD 1
H-25 J0KD00000101 FERRITE CORE 1
H-26 VSC5866 SHIELD CASE (PREAMP) 1
H-51 XQN2+C4FJ SCREW 2
H-54 XYN26+C4FJ SCREW 6
H-55 XYN26+J6FJ SCREW 16
H-56 XYN3+J6FJ SCREW 1
H-60 XWC3BFJ WASHER 3
H-50 XQN2+B25FJ SCREW 2
6
51
50
13
22
E2
E5
55
55
54
55
55 34
33
32
55
55
55
31
55
3
9
25
E3
55
55
55
E1
12
E only
55
55
26
