34

www.pridemobility.com

Jazzy Select 14 Series

V I I . C A R E A N D M A I N T E N A N C E

Battery Replacement

A battery wiring diagram is printed on a decal located on the front battery tray. See VI. “Batteries and Charging”

for correct battery specifications.

MANDATORY! Battery posts, terminals, and related accessories contain lead and

lead compounds. Wear goggles and gloves when handling batteries and wash hands

after handling.

WARNING! The batteries in your power chair should only be serviced or replaced by

an authorized Pride Provider or a qualified technician.

WARNING! Do not replace batteries when seat is occupied.

WARNING! Power chair batteries are heavy. See specifications table. If you are

unable to lift that much weight, be sure to get help. Use proper lifting techniques and

avoid lifting beyond your capacity.

WARNING! Do not mix old and new batteries. Always replace both batteries at the

same time.

Follow these easy steps for a quick and safe repair for both pneumatic and solid tires:

1. Turn off the power to the controller.

2. Set the power chair up on blocks.

3. If you are changing a pneumatic tire, completely deflate it before removing the wheel.

4. Remove the drive wheel nut and washer from the axle. See figure 20.

5. Pull the wheel off the axle.

6. Remove the screws that fasten the two rim halves together. See figure 21.

7. Remove the old tube from the pneumatic tire and replace it with a new tube or replace the entire assembly if

it is a solid tire.

8. Screw together the two rim halves.

9. Slide the wheel back onto the axle. Make sure that the key is in the axle slot.

WARNING! Failure to ensure that the axle key is properly installed into the axle slot when

mounting the wheel can result in electronic brake failure, personal injury, and/or product

damage.

10. Reinstall the drive wheel nut and washer onto the axle and tighten.

WARNING! Make sure both the nut and washer are reinstalled and secured properly.

11. Inflate pneumatic tires to the psi/bar/kPa air pressure rating indicated on each tire.

12. Remove the power chair from the blocks.

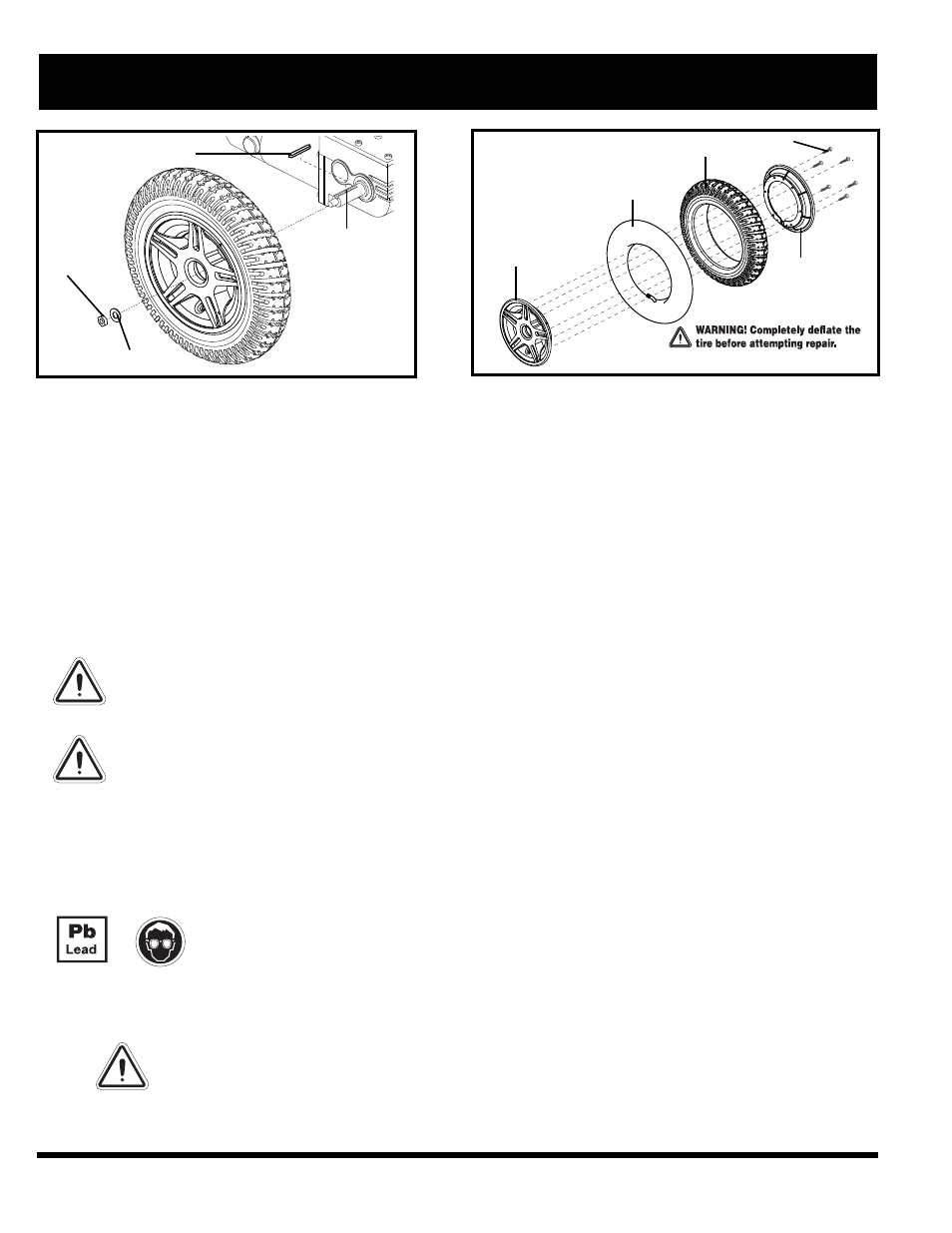

Figure 21. Jazzy Select 14 Series Drive Wheel Disassembled

TIRE

REAR RIM
HALF

FRONT
RIM HALF

SCREWS

DRIVE WHEEL
NUT

DRIVE WHEEL WASHER

Figure 20. Jazzy Select 14 Series Drive Wheel

TUBE

AXLE KEY

AXLE SLOT
