V . C O M F O R T A D J U S T M E N T S

Manual Recline Seatback Adjustment

If your power chair is equipped with a reclining seat, you can

adjust the seatback angle with the seatback release lever. The

lever is located on the right side of the seat base.

To adjust the recline angle:

1. Pull up on the seatback release lever.

2. Lean forward or rearward to the desired position.

3. Release the lever.

Seatback Angle Adjustment

If your power chair is equipped with an adjustable seatback,

you can adjust it to four different angles: 90°, 102°, 105°, or

107°.

To adjust the seatback angle:

1. Remove the adjusting screws from each seat hinge. See

figure 13.

2. Set the seatback at the desired angle.

3. Reinstall the adjusting screws to each seat hinge and

tighten.

Armrest Width Adjustment

You can change each armrest’s width independently of the

other.

NOTE: Changing the armrest width may increase the over-

all width of your power chair.

To change the armrest width:

1. Locate the two armrest knobs on each side of the armrest

receiver bracket. See figure 13.

2. Loosen the knobs.

3. Slide the armrests in or out to the desired width.

4. Tighten the knobs.

Armrest Height Adjustment

To change the armrest height:

1. Loosen the setscrews located on the armrest receiver.

See figure 13.

2. Raise or lower the armrest to the desired height.

3. Tighten the setscrews to secure the armrest.

Armrest Angle Adjustment

To change the armrest angle:

1. Lift the armrest straight up so that it is perpendicular to

the floor. See figure 13.

2. Loosen the jam nut.

3. Turn the adjusting screw to raise or lower the front of the

armrest.

4. Tighten the jam nut to secure the adjusting screw into place.

ARMREST KNOB

JAM NUT

ARMREST ANGLE
ADJUSTING
SCREW

SEATBACK ANGLE
ADJUSTING
SCREW

ARMREST
HEIGHT
ADJUSTING
SETSCREWS

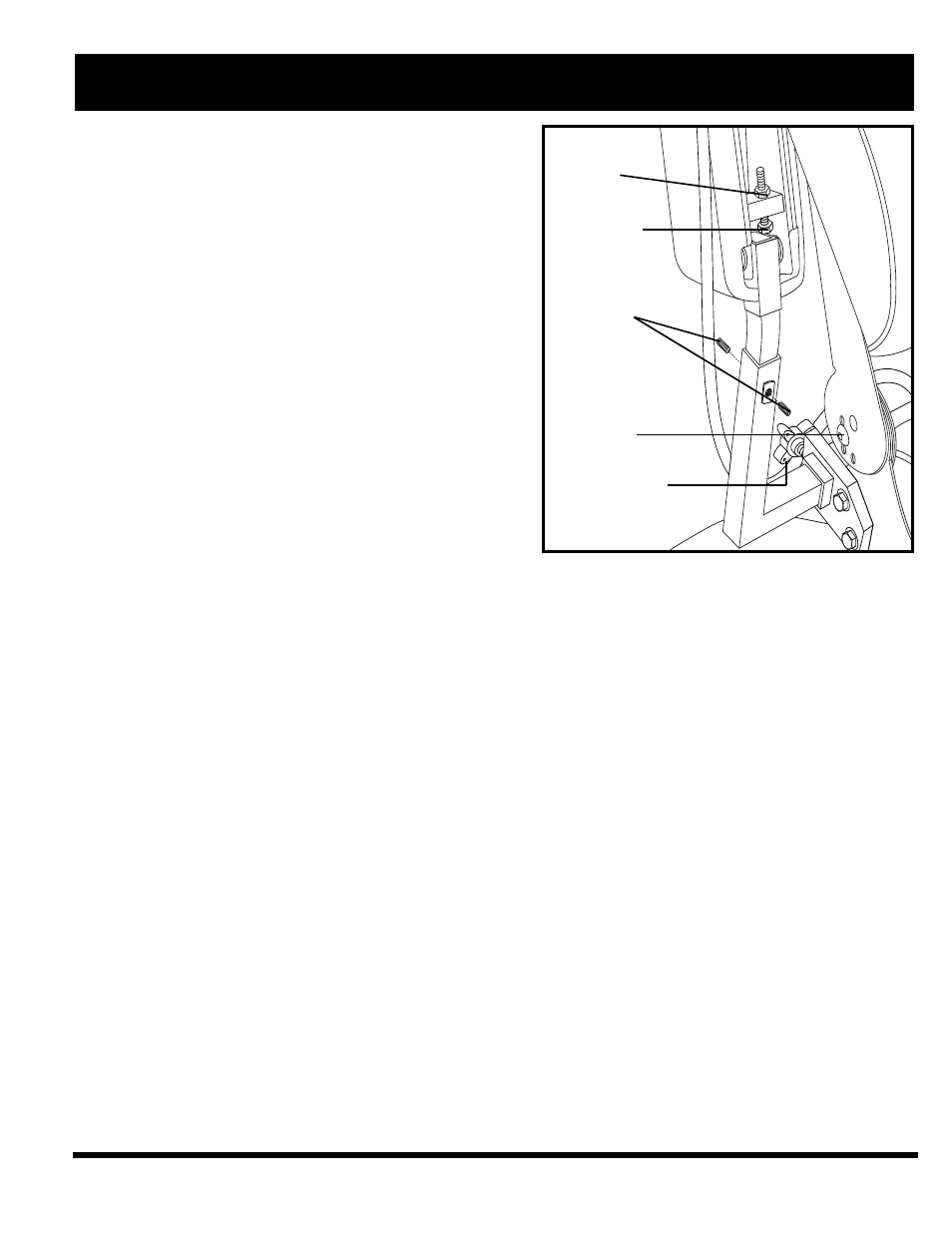

Figure 13. Seatback and Armrest Adjustments
