V . C O M F O R T A D J U S T M E N T S
Foot Platform Angle Adjustment
You can adjust the angle of the foot platform with a
wrench. See figure 15.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the adjustment
screw.
2. Turn the adjustment screw to raise or lower the
front of the foot platform.
Swing-away Footrests
Swing-away Footrests (SFRs) enable you to rotate the
footrests to the side before you transfer onto or off of
your power chair. See figure 16.
To rotate the SFRs:
1. Push in the release lever.
2. Rotate the SFRs.
To adjust the SFR length:
1. Remove the two adjustment screws from the back
of each footrest extension.
2. Slide the footrest up or down to the desired length.
3. Reinstall the two adjustment screws.
Elevating Leg Rests
Elevating Leg Rests (ELRs) offer an infinite range of
adjustment for the leg angle and a footrest adjustment
range of 12-19 in. (30.48-48.26 cm). See figure 17.
To rotate the ELR:
1. Push in release lever A.
2. Rotate the ELRs.
To adjust the ELR angle:
1. Push down release lever B.
2. Move the leg rest to the desired angle.
To adjust the ELR length:
1. Remove the two adjustment screws from the back
of each leg rest extension.
2. Slide the leg rest up or down to the desired length.
3. Reinstall the two adjustment screws.

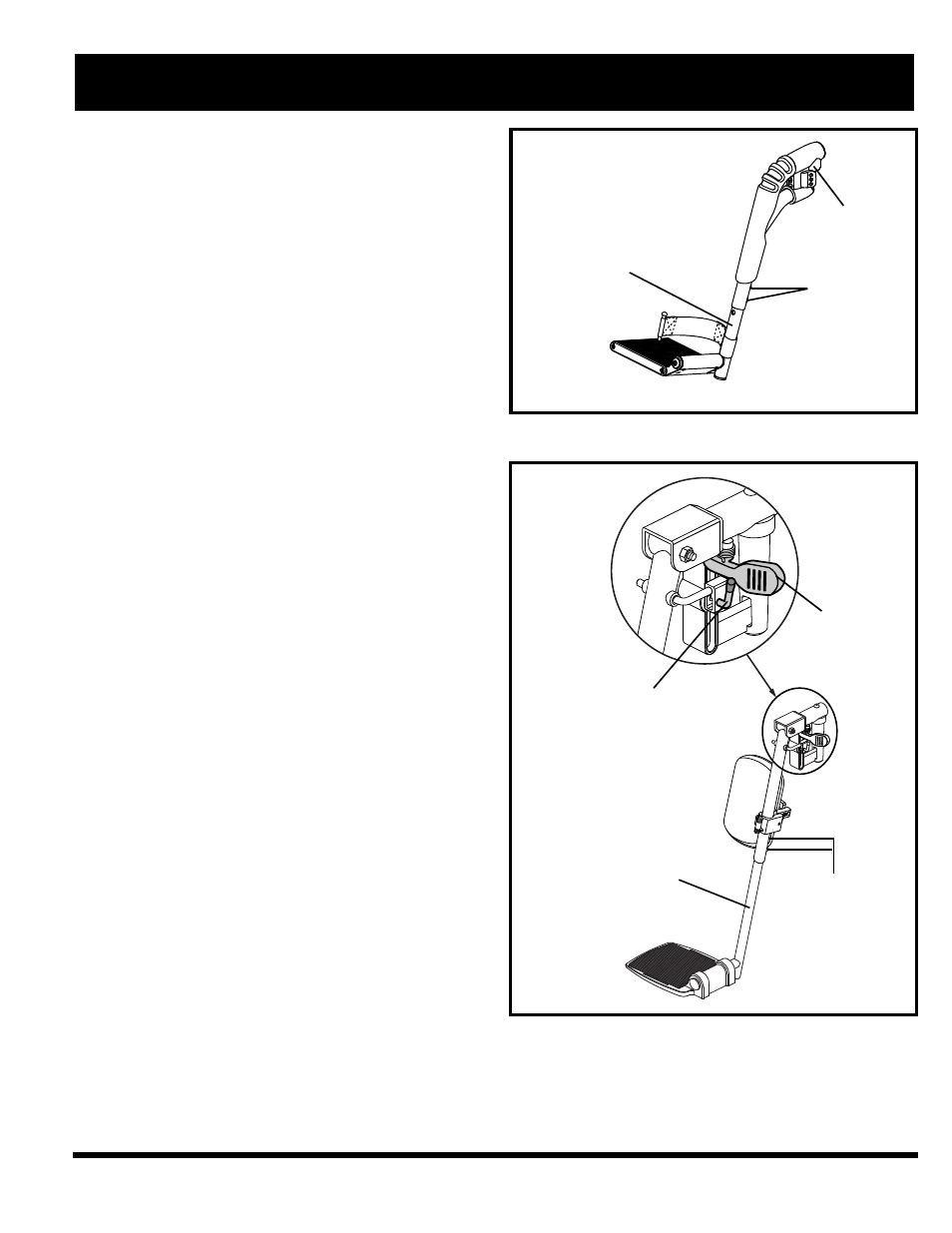

Figure 16. Swing-away Footrests
SFR RELEASE LEVER
ADJUSTMENT
SCREWS
RELEASE LEVER B
Figure 17. Elevating Leg Rests
RELEASE LEVER A
LEG REST
EXTENSION
ADJUSTMENT
SCREWS
FOOTREST
EXTENSION
