24

www.pridemobility.com

Jazzy Select 14 Series

V . C O M F O R T A D J U S T M E N T S

SETSCREW

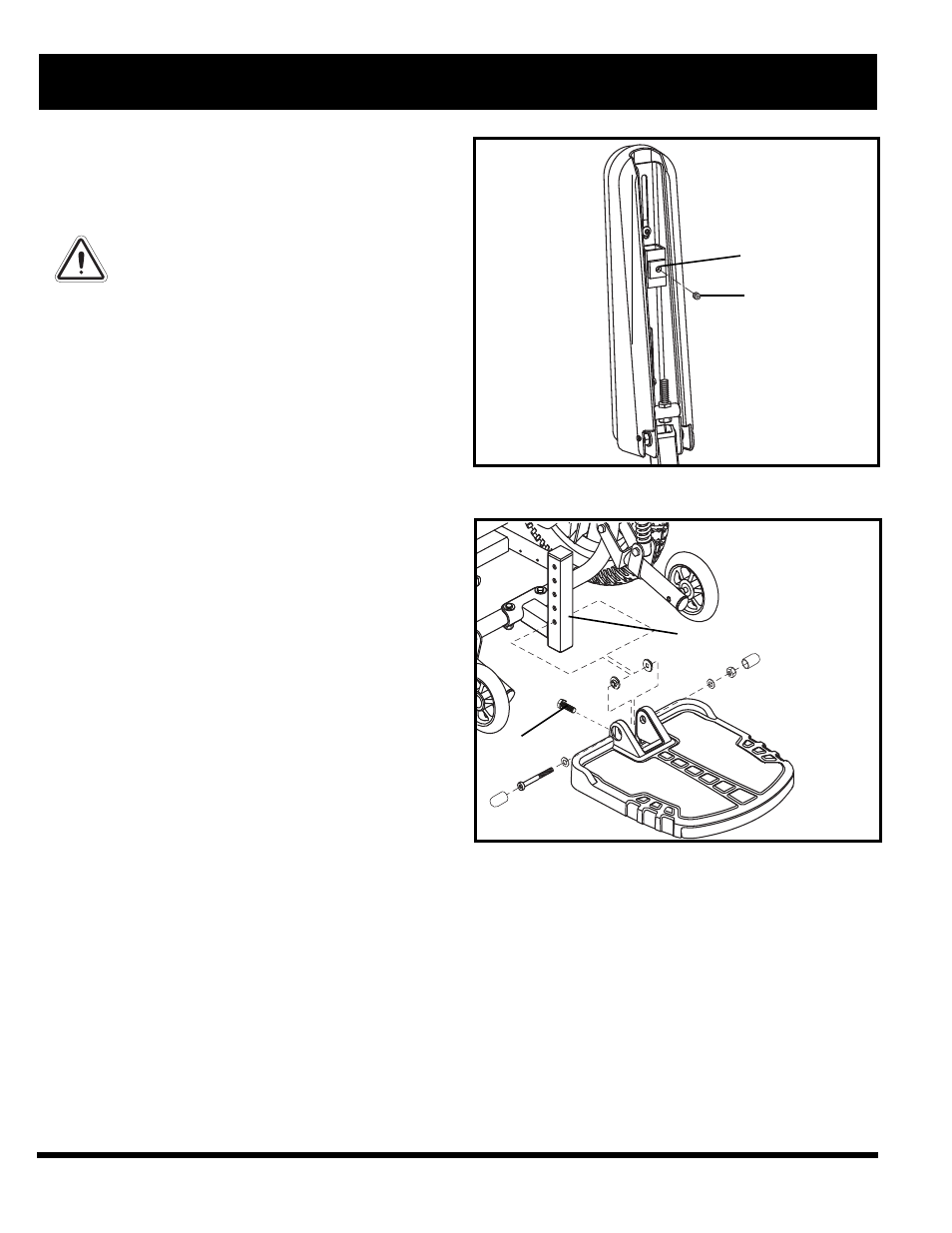

Figure 14. Underside of Armrest

Figure 15. Foot Platform Adjustment

FOOT PLATFORM BRACKET

ADJUSTMENT
SCREW

CONTROLLER
BRACKET

Controller Position

You can move the controller in toward or out away from

the armrest, or change the position of the controller for

either left-hand or right-hand use.

WARNING! Do not place the controller

harness so that it can be pinched in the

seat frame or the power base frame.

To extend the controller:

1. Flip up the armrest so it is perpendicular to the floor.

2. Loosen the setscrew on the controller bracket. See

figure 14.

3. Slide the controller into or out of the armrest to the

desired position.

4. Tighten the setscrew to secure the controller.

To change the controller position:

1. Turn off the power to the controller.

2. Unplug the controller connector from the power

base.

3. Remove any wire ties securing the controller harness

to the armrest.

4. Flip up the armrest so it is perpendicular to the floor.

5. Loosen the setscrew on the controller bracket.

6. Slide the controller out of the armrest.

7. Loosen the setscrew in the other armrest.

8. Place the controller in the other armrest.

9. Tighten the setscrew in both armrests.

10. Route the controller harness to the back of the power

base and plug in the controller.

11. Secure the controller harness to the armrest with wire

ties. See figure 11.

NOTE: If your power chair is equipped with a Specialty

Seat or Synergy Seat, refer to the controller adjustment

information contained in separate manuals.

Foot Platform Height Adjustment

The foot platform height is easily adjusted to several

heights.

To raise or lower the foot platform:

1. Remove the hardware from the foot platform bracket

as shown in figure 15.

2. Reposition the foot platform to the desired height.

3. Reinstall the hardware.
