28

www.pridemobility.com

Jazzy Select 14 Series

V I . B A T T E R I E S A N D C H A R G I N G

Battery Break-in

To break in new batteries for maximum efficiency:

1. Fully recharge any new battery prior to its initial use. This brings the battery up to about 90% of its peak

performance level.

2. Operate your power chair throughout the house and yard. Move slowly at first, and do not travel too far until

you become accustomed to the controls and break in the batteries.

3. Give the batteries another full charge of 8 to 14 hours and operate your power chair again. The batteries will

now perform at over 90% of their potential.

4. After four or five charging cycles, the batteries will top off at 100% charge and last for an extended period.

Frequently Asked Questions (FAQs)

How does the charger work?

The battery charger takes the standard electrical outlet voltage of 120 VAC (alternating current) and converts it

to 24 VDC (direct current). The power chair batteries use direct current to run your power chair. When the battery

voltage is low, the charger works harder to charge the battery. As the battery voltage approaches full charge, the

charger does not work as hard to complete the charging cycle. When the battery is fully charged, the amperage

from the charger is nearly at zero. This is how the charger maintains a charge but does not overcharge the battery.

Can I use a different battery charger?

You should use the charger supplied with the power chair. It is the safest, most efficient tool to charge the batter-

ies. We do not recommend using other types of chargers (e.g., an automotive battery charger).

NOTE: Your power chair’s charger will not operate after the batteries have been discharged to nearly 0

voltage. If this happens, call your authorized Pride Provider for assistance.

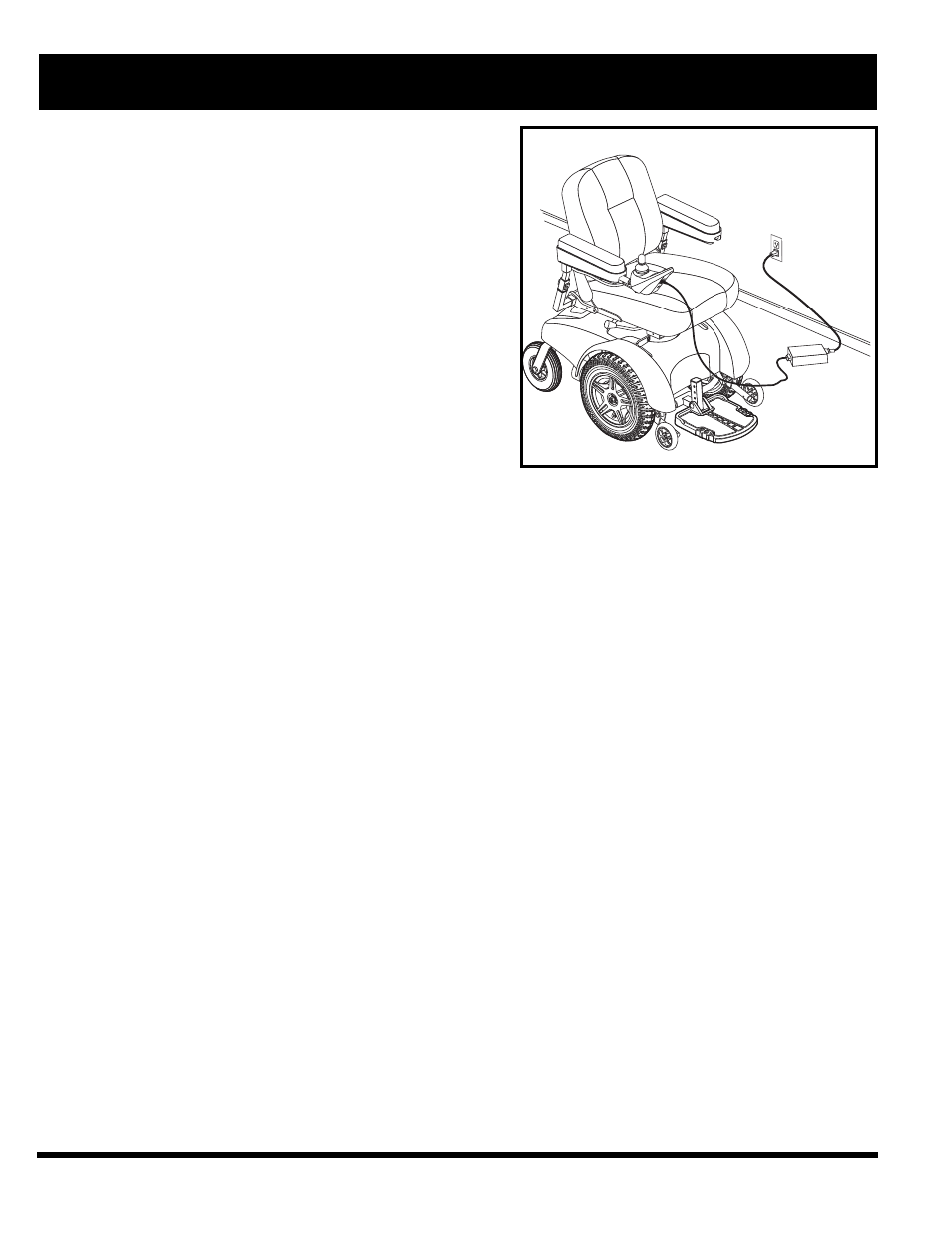

Figure 19. Off-board Battery Charging

To charge the batteries with the off-board charger:
1. Position your power chair next to a standard electrical

outlet. See figure 19.

2. Turn off the power to the controller and engage the man-

ual freewheel lever(s) in the drive position. See III.
“Your Power Chair.”

3. Plug the off-board charger into the off-board charger

socket on the controller.

4. Plug the off-board charger into the electrical outlet. See

figure 19.

NOTE: The LED lights on the charger indicate different

charger conditions at various times: charger power on,

charging in progress, and charging complete. Refer to the

manual supplied with the charger for a complete explana-

tion of those indicators.

5. When the batteries are fully charged, unplug the off-

board charger from the electrical outlet and then from the

controller.
