clear channel timing (without byte integrity preservation) over the modem
link. The 1082/F is capable of handling either network timing or modem
timing, thereby realizing network extension or network replacement con-
figurations. Clock jitter is attenuated according to G.823.
The Model 1082 is capable of point-to-point distances up to 5 miles using
24 AWG wire. The Model 1082 supports internal, external or receive
loopback clocking.
2.3 1082 SNMP MANAGEMENT SOLUTIONS
The Model 1082/F is SNMP manageable when connected to a rack-
mounted Model 1092ARC (see Figure 1). SNMP management is enabled
through a 1001MC rack management card located in the Patton Electronics
Rack System..

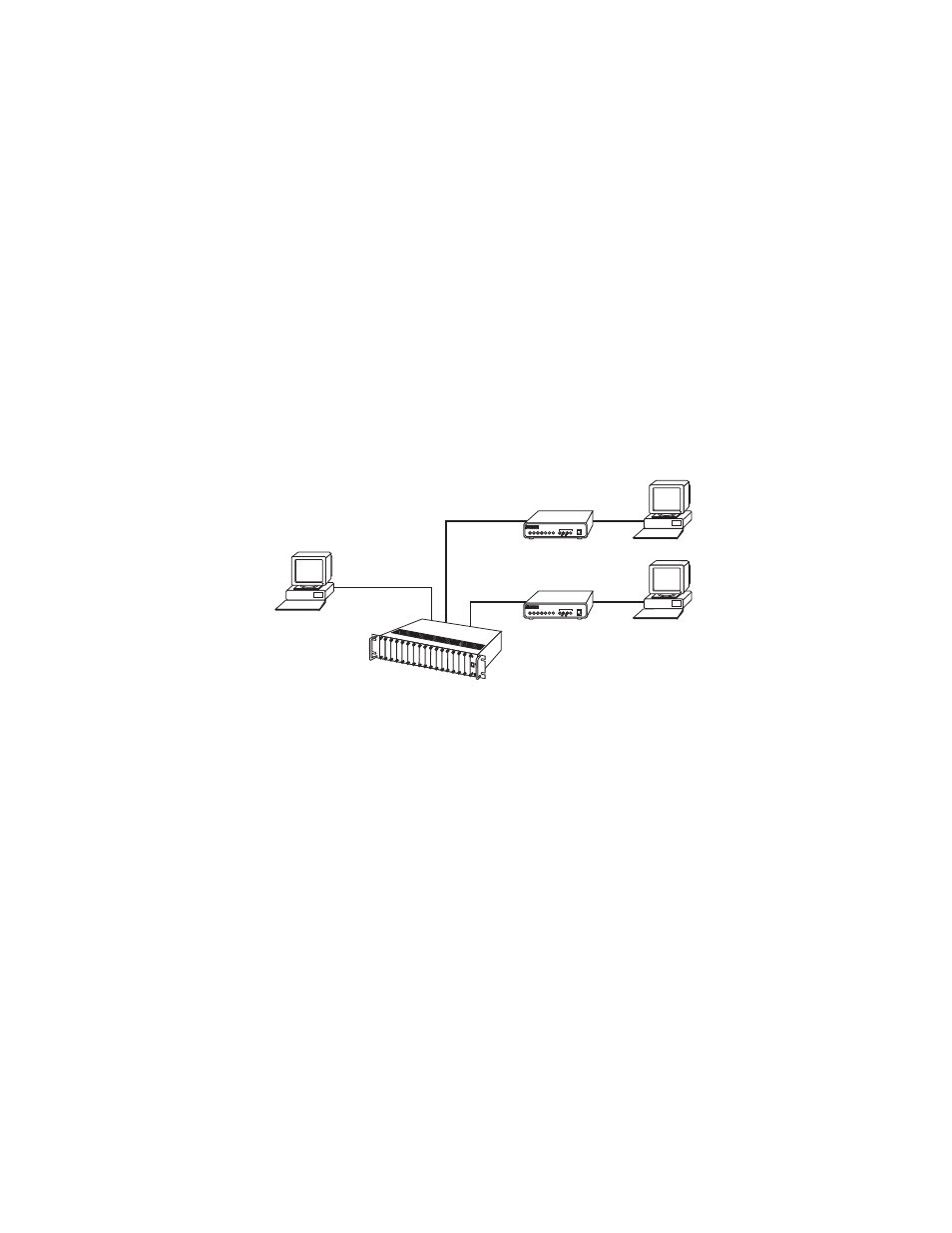

Figure 1. Typical application
HTTP/HTML Management
The 1001MC maintains HTML pages that can be viewed through a Web
browser. You can display remote statistics and configure Model 1082
parameters simply by entering the 1001MC’s IP address into the browser.
2.4 SYSTEM DESCRIPTION
This section describes the features that the entire system (G.703 interface,
combined with the modems) will support.
Note The “smoothed” clocks referred to in this section indicate that a
phase-locked VCO is used to create a jitter-free clock that is
locked to a source clock.
10Base-T
connection
to 1001MC
Management
Station
Rack-mounted
1092ARCs
2B1Q
connections to
remote 1082s
Model 1082
Model 1082
