4.2 CONNECTING POWER
The Model 1082 (all versions) are available with Universal AC (100–
240VAC), 120VAC, 230VAC or -48VDC power options. This section
describes these options.
Universal AC Power (100–240 VAC)
The Model 1082 uses a 5VDC, 2A universal input 100-240VAC, power
supply (center pin is +5V). The universal input power supply has a male
IEC-320 power entry connector. This power supply connects to the
Model 1082 by means of a barrel jack on the rear panel. Many interna-
tional power cords are available for the universal power supply (Refer to
Appendix B, “Model 1082 Factory Replacement Parts and Accessories”
on page 27 for country-specific power cords.
The Model 1082 powers up as soon as it is plugged into an AC outlet—
there is no power switch.The Universal AC supply is equipped with a
male IEC-320
DC Power
The 36-60 VDC DC to DC adapter is supplied with the DC version of the
Model 1082. The black and red leads plug into a DC source (nominal
48VDC) and the barrel power connector plugs into the barrel power sup-
ply jack on the rear panel of the 1082. (See Figure 9).

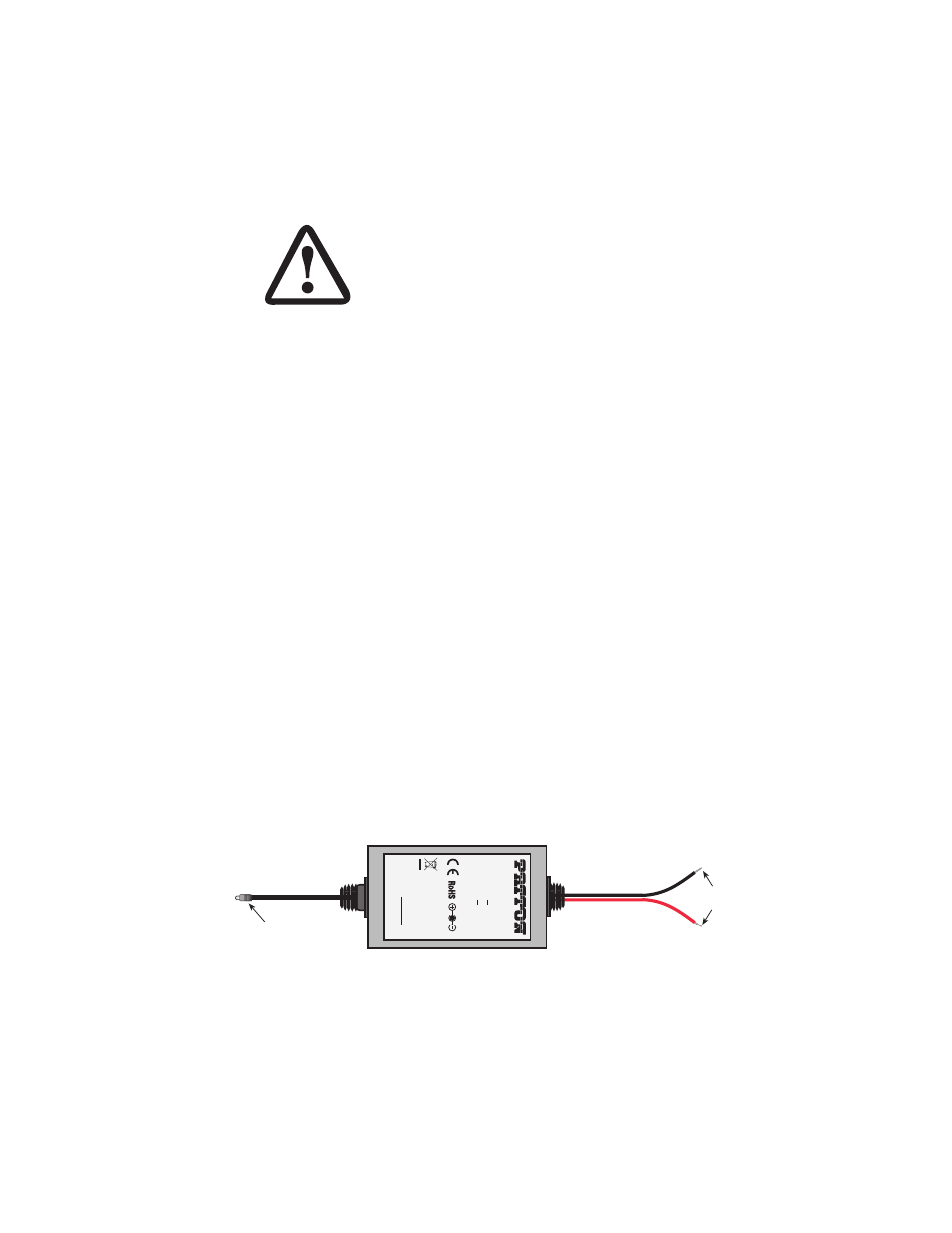

Figure 9. Connecting DC power to the 48V-PSM3 DC power supply
Important
Connection of the Patton 1082/F to a CSU DTE requires a
crossover twisted pair cable. Connection of the 1082/F to
a
PCM network requires a straight through twisted pair
cable. If you need more assistance with cable selection
and preparation, contact Patton Technical Support at
(301) 975-1007 . Additional assistance at our website,
http://www.patton.com , or at our e-mail address at
[email protected]
To Power
Supply Jack
To -48VDC
Source
-Vin
+Vin
SWITCHING POWER SUPPL
Y
MODEL
: SYD1
106-0505
INPUT
: 36-60V 0.2A
MAX
OUTPUT
: +5V 1.0A
OUTPUT
POWER : 5W MAX
S/N
: G01234567890 MADE IN CHINA
BY SUNNY
Black lead (-V)
Red lead (+V)
Barrel power connector
