4.0 INSTALLATION
Once the Model 1082 has been configured, it is ready to connect to the
twisted pair interface, to the 64K co directional interface, and to the
power source. This section tells you how to make these connections.

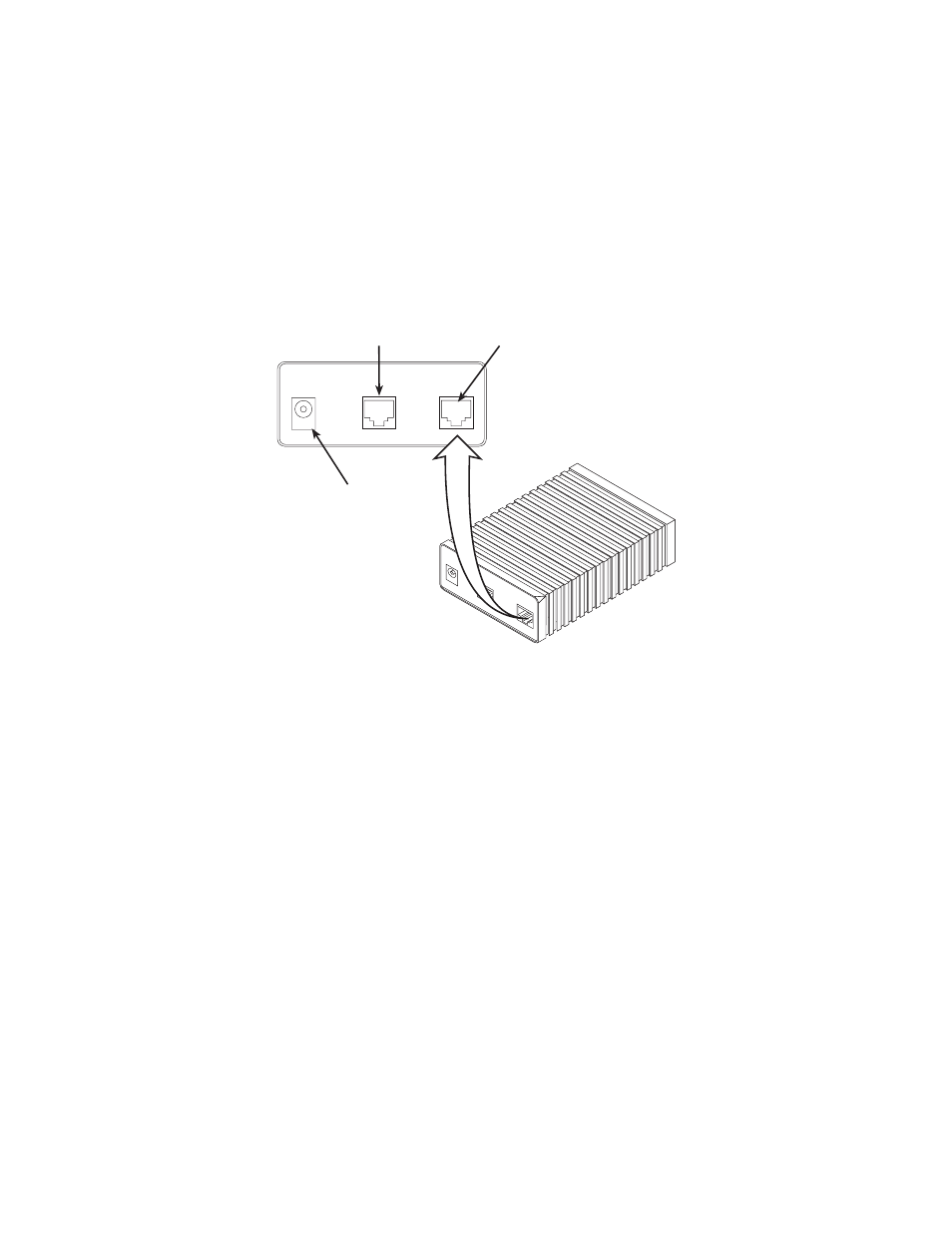

Figure 6. Model 1082/F Rear View
4.1 CONNECTING THE TWISTED PAIR INTERFACE
The Model 1082 supports communication between two DTE devices at
distances to 5 miles (8 km) over 24 AWG (.5mm) twisted pair wire. Two
things are essential:
These units work in pairs. Both units at the end of the twisted pair DSL
span must be set for the same DTE rate (64 kbps).
To function properly, the Model 1082 needs one twisted pair of metallic
wire. This twisted pair must be unconditioned, dry, metallic wire, between
19 (.9mm) and 26 AWG (.4mm) (the higher number gauges will limit dis-
tance). Standard dial-up telephone circuits, or leased circuits that run
through signal equalization equipment, or standard, flat modular tele-
phone type cable, are not acceptable.
511E
Line
Power
Made in the USA
Interface
ON
OFF
|
O Line
Line interface
Power Interface
Made in the USA
64 kbps co-
directional interface
Power input
connector
