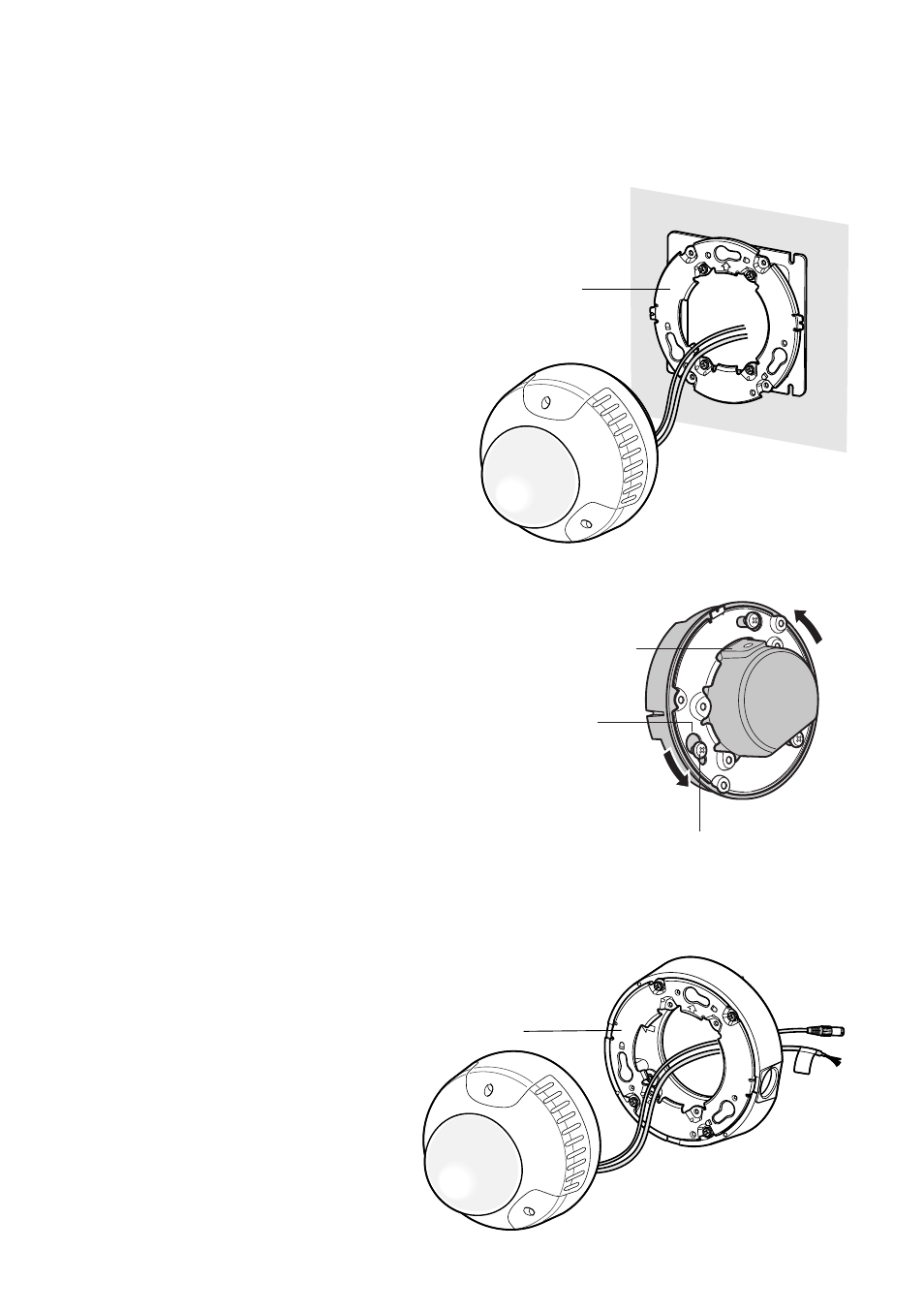

■ How to mount the camera
1. Connect the power cable and the BNC plug of the video output cable. (Refer to p. 23
Connections.)
2. Secure the camera with four attachment fix-
ing screws.
3. Fit the protrusion at the rear of camera unit in
the dent of camera attachment.
Protrusion
Rear screw
Screw hole of
camera attachment
4. Hook the rear screws on the screw holes of
camera attachment, and turn the camera unit
clockwise to fix the camera unit and camera
attachment.
Dent
TOP
Dent
3. Fit the protrusion at the rear of camera unit in
the dent of camera attachment.
