Identify the Components

The VS15 display provides easy access to all controls and peripheral ports. Check
the following illustrations of the front and back panels to identify the display
controls and ports.

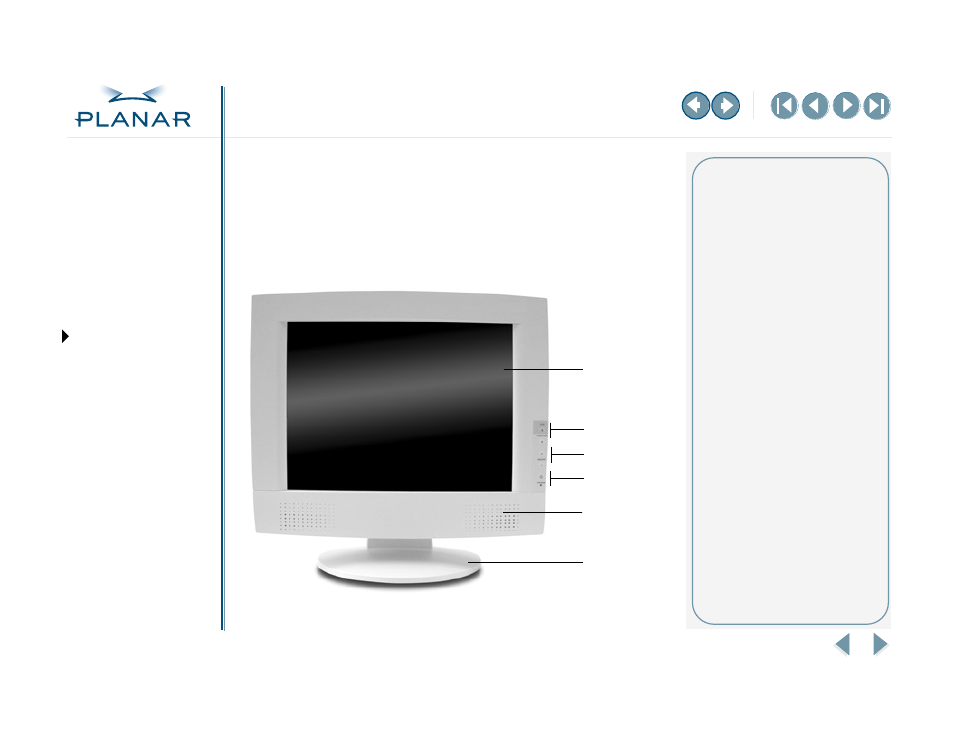

Front panel

MORE

1

2

3

4, 5

6

7

Legend

1 LCD screen

A 15-inch diagonal active-matrix
LCD panel. The panel can produce
most display standards from 640 x
480 VGA to 1024 x 768 XGA.

2 Function UP and DOWN buttons

UP activates the OSD menu and
navigates the OSD main menu;
DOWN navigates the submenus.

3 Adjust PLUS and MINUS buttons

Controls to change the value of
the selected icon.

4 Power switch

Depress this button for 2 seconds
to turn the display on/off.

5 Power ON Indicator

The LED indicator is illuminated
when the power is on and blinks
when the display is in power-
saving mode.

6 Stereo speakers

Built-in amplifier and stereo
speakers for sound.

7 Desk stand

Flat-surface support for the
display. The stand allows you
to tilt the screen to various
viewing angles.
