8
English

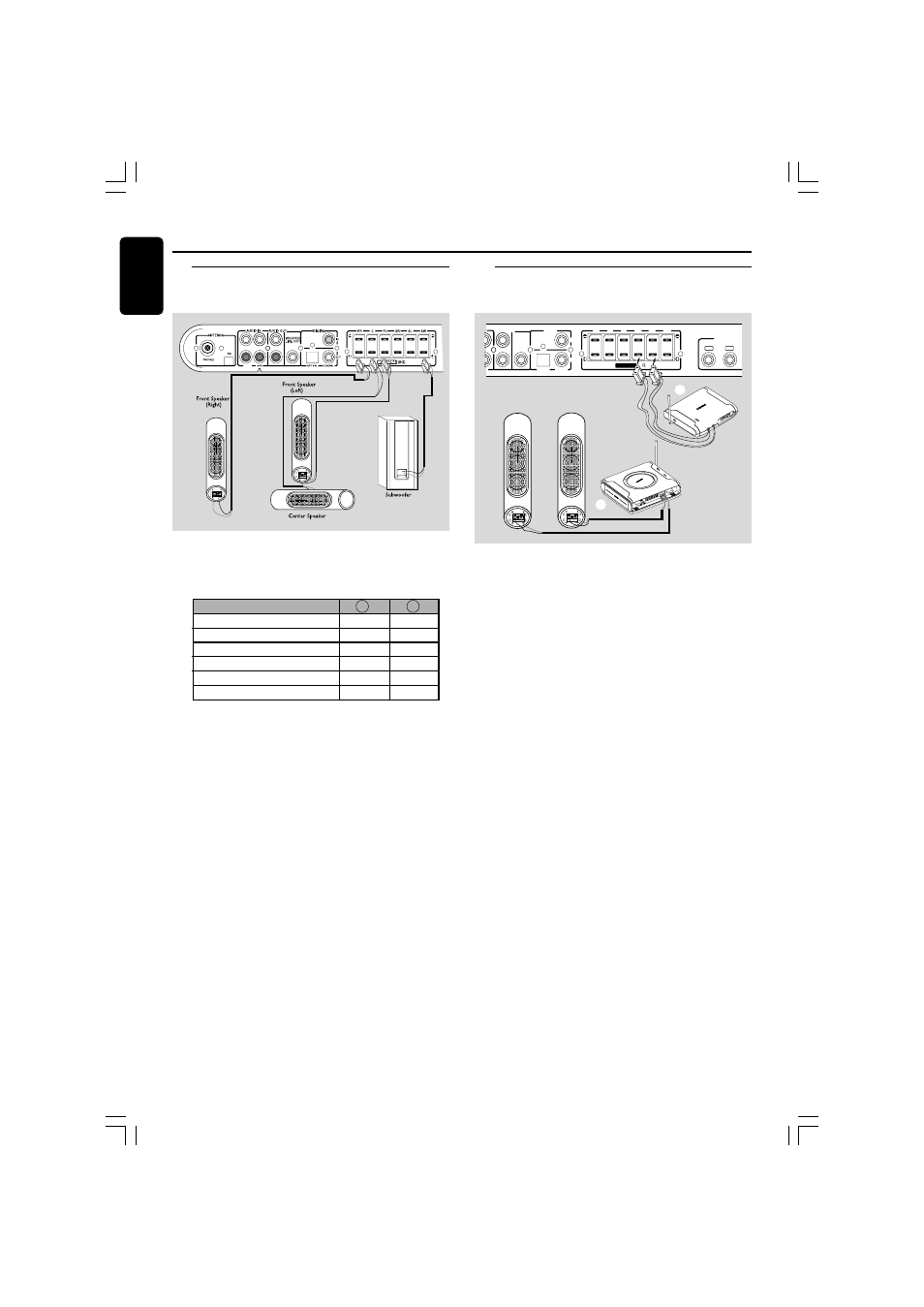

Step 2: Connecting speakers
and subwoofer
Connect the supplied speaker system using the supplied
speaker cables by matching the colours of the jacks and
speaker plugs. Fully insert the plugs of speaker wire into the
jacks on the DVD system.
Notes:
–
Ensure that the speaker cables are correctly connected.
Improper connections may damage the system due to short-
circuit.
–
Do not connect more than one speaker to any one pair of
+/- speaker jacks.
–
Do not connect speakers with an impedance lower than
the speakers supplied. Please refer to the SPECIFICATIONS
section of this manual.
Speakers / Subwoofer
Front Left (L)
Front Right (R)
Center
Surround (Rear) Left (L)
Surround (Rear) Right (R)
Subwoofer
Connections
black
black
black
black
black
black white
red
green
blue
grey
purple
❋
Step 3: Connecting AD905W
Wireless System
1 Connect the supplied Surround Speaker system using the
supplied speaker cables to the speaker jacks on the
AD905WA WIRELESS RECEIVER by matching the
colours of the jacks and speaker plugs. Extend the
RECEIVER antenna.
2 Connect the AD905WT WIRELESS
TRANSMITTER’s speaker cables to the speaker jacks on
the DVD system. Extend the TRANSMITTER antenna.
Notes
–
Adjust the position of the antennas for optimal reception.
– Position the antennas as far as possible from your TV, VCR
or other radiation sources to prevent unwanted interference.
–
To prevent unwanted noise, do not place the AD905W
wireless system too close to the DVD system, AC power
adapter, TV or other radiation sources.
Rear Speaker
(Surround Left)
Rear Speaker
(Surround Right)
AD905WA
WIRELESS RELEIVER
AD905WT
WIRELESS TRANSMITTER
AUDIO OUT
WOOFER
LINE OUT
(8 )
SPEAKERS
FR SL SR SW C FL
OUT
OPTICAL COAXIAL
DIGITAL
COMPONENT
VIDEO OUT IN
4 1
Pr/Cr Pb/Cb
1
2
C ONNECTIONS
✒
TV/AV
