12
English
Connections
C
ONNECTIONS

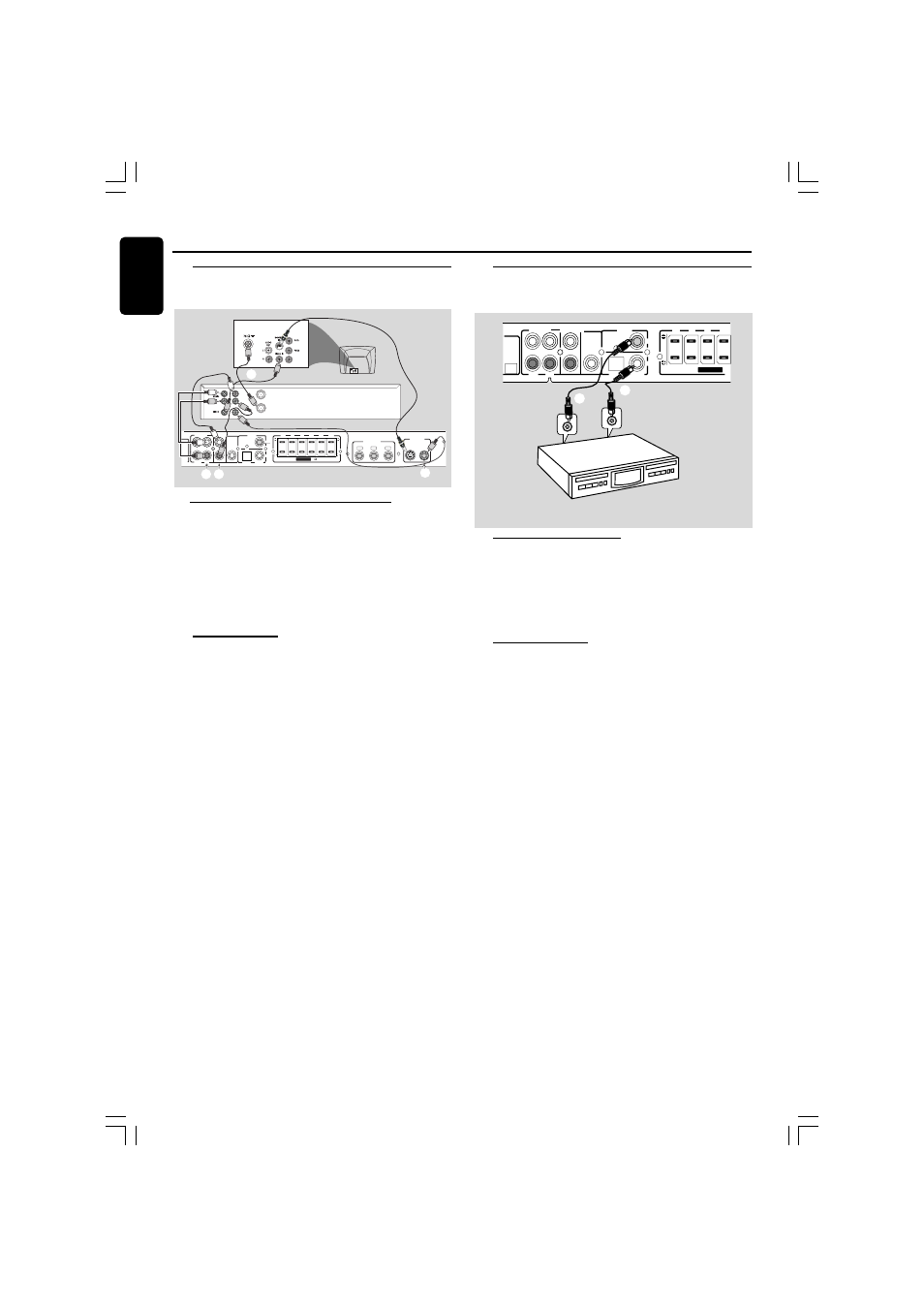

Step 7: Connecting a VCR or
Cable /Satellite Box
Viewing and listening to the playback
1 Connect the VCR or Cable/Satellite Box to the TV as
shown.
2 Connect the DVD system’s AUDIO IN-AUX jacks to the
AUDIO OUT jacks on the VCR or cable / satellite box.
Before starting operation, press AUX/DI on the remote to
select “
AUX-ANA” in order to activate the input source.
Recording DVDs
Some DVDs are copy-protected. You cannot record or
dub protected discs using a VCR.
3 Connect the DVD system’s VIDEO jack to the VIDEO IN
jack on the VCR.
4 Connect the DVD system’s AUDIO OUT jacks to the
AUDIO IN jacks on the VCR. This will allow you to make
analogue stereo (two channel, right and left) recordings.
To view DVD playback while recording. You must connect
the DVD system to your TV using the Pr Pb Y or the S-
VIDEO connection.
Step 8: Connecting digital
audio equipment
Listening to the playback
1 Connect the DVD system’s DIGITAL IN jack to the
DIGITAL OUT jack on a digital audio device.
Before starting operation, press AUX/DI on the remote to
select “
AUX-DIG” in order to activate the input source.
Recording (digital)
2 Connect the DVD system’s DIGITAL OUT
(COAXIAL or OPTICAL) jack to the DIGITAL IN jack
on a digital recording device (DTS-Digital Theatre System
compatible, with a Dolby Digital decoder, for example).
Before starting operation, set the DIGITAL OUTPUT
according to the audio connection. See page 19, Setting the
Sound - Digital Output.
Notes:
–
Always refer to the owner’s manual of the other equipment
for complete connection and use details.
DIGITAL IN
DIGITAL OUT
AUDIO IN
AUX
TV/AV
AUDIO OUT
WOOFER
LINE OUT
AM
SPEAKERS
FR
SR
C
FL
OUT
OPTICAL
COAXIAL
DIGITAL
IN
(for exampler)
CD Recorder
1
2
Rear of TV
(example only)
Y
ANT IN
TO TV
VCR or
Cable/Satellite
Box
OUT
IN
AUDIO IN
AUX
TV/AV
AUDIO OUT
WOOFER
LINE OUT
S-VIDEO
VIDEO OUT
VIDEO
(8 )
SPEAKERS
SPEAKERS
FR
SL
SR
SW
C
FL
OUT
OPTICAL
COAXIAL
DIGITAL
IN
1
2 4
3
COMPONENT
VIDEO OUT
Pr/Cr
Pb/Cb
Y
75 V
L
R
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
Pr/Cr
Pb/Cb
