AD905W Wireless System
The AD905W accessory gives you the option for wireless
speaker connection.
Please check you have all the supplied parts for your
AD905W wireless set:
– 1 x AD905WT WIRELESS TRANSMITTER
– 1 x AD905WA WIRELESS RECEIVER
– 1 x 14V adapter
– 1 x table stand

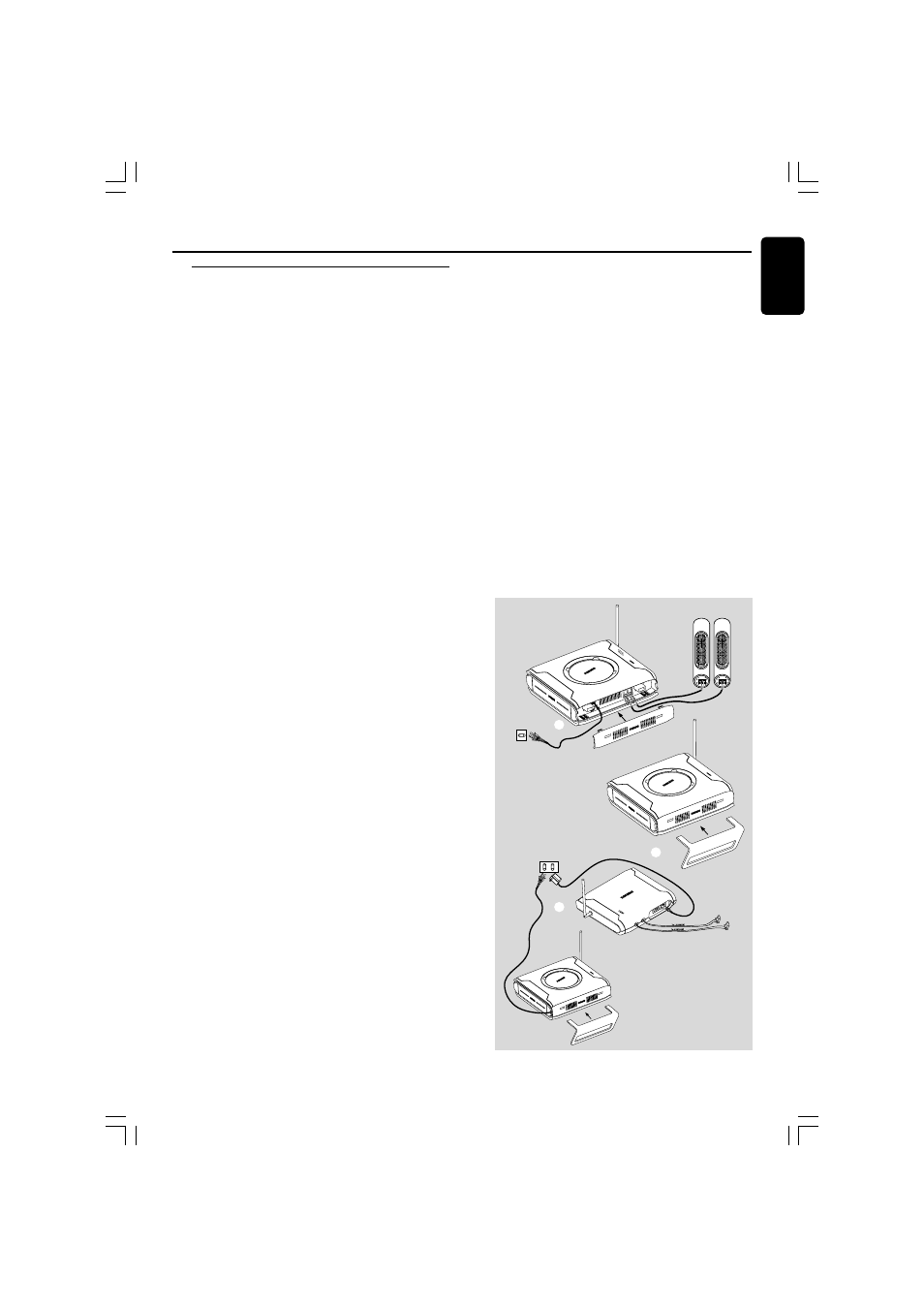

1 Remove the PHILIPS cover from the AD905WA WIRELESS
RECEIVER as shown in Fig. 1, to access the connection
terminal. Connect your rear speaker terminals with the
corresponding color terminals on the AD905WA
WIRELESS RECEIVER
2 Insert the table stand into the brackets as shown in Fig.2.
3 Connect the AD905WA WIRELESS RECEIVER power cord
to your power supply.
4 Check / adjust the AD905WA WIRELESS RECEIVER OFF-
ON switch to the ON position (see Fig.1).
➜ The AD905WA
WIRELESS RECEIVER power indicator
lights up green.
5 Connect the 14V power adapter to the AD905WT
WIRELESS TRANSMITTER and power supply as shown in Fig.
3.
6 Make sure you position both the AD905WT WIRELESS
TRANSMITTER and AD905WA WIRELESS RECEIVER at least
2 meters apart.
7 Connect and carefully match the AD905WT WIRELESS
TRANSMITTER inputs to the corresponding surround
speaker jacks on your LX3750W DVD system.
➜ The AD905WT
WIRELESS TRANSMITTER power
indicator lights up red.
8 Check and adjust the 4-channel toggle switch on the
AD905WT
WIRELESS TRANSMITTER and AD905WA
WIRELESS RECEIVER (CHANNEL SELECTOR switch),
so that both units are using the same channel.
9 On your LX3750W DVD system, play an audio source
and activate the surround sound mode option. Adjust the
volume to reproduce surround sound in the rear speakers.
10 Extend the antenna vertically on both the AD905WT
WIRELESS TRANSMITTER and AD905WA WIRELESS
RECEIVER to improve reception. Check the antennas are
safely positioned without obstruction.
To ensure quality sound production and
transmission
● Place both the AD905WT
WIRELESS TRANSMITTER and
1
2
4 1
3
AD905WA WIRELESS RECEIVER off the ground
(recommended minimum height of 30cm).
● Avoid placing the AD905WT
WIRELESS TRANSMITTER too
close to your DVD receiver, AC power adapter, TV or other
electrical equipment as it may cause electrical interference.
● In case of sound distortion, please select another channel
for both the AD905WA WIRELESS RECEIVER and
AD905WT WIRELESS TRANSMITTER . The distortion could
be the result of interference caused by other equipment
using same frequency channel in your house or
neighbourhood.
Notes
–
After you switch off your DVD system, the AD905WT
WIRELESS TRANSMITTER automatically enters standby mode and
the red power indicator eventually comes out. On receiving an
incoming audio signal from your DVD system again, the
AD905WT
WIRELESS TRANSMITTER automatically powers up.
– When the AD905WA WIRELESS RECEIVER enters the Eco-
power standby mode, the power indicator lights up red.
Connections
C ONNECTIONS
