Repair Instructions
42. Removing and fitting the needle thread tension
Removal:
z
Remove the needle thread tension.
z

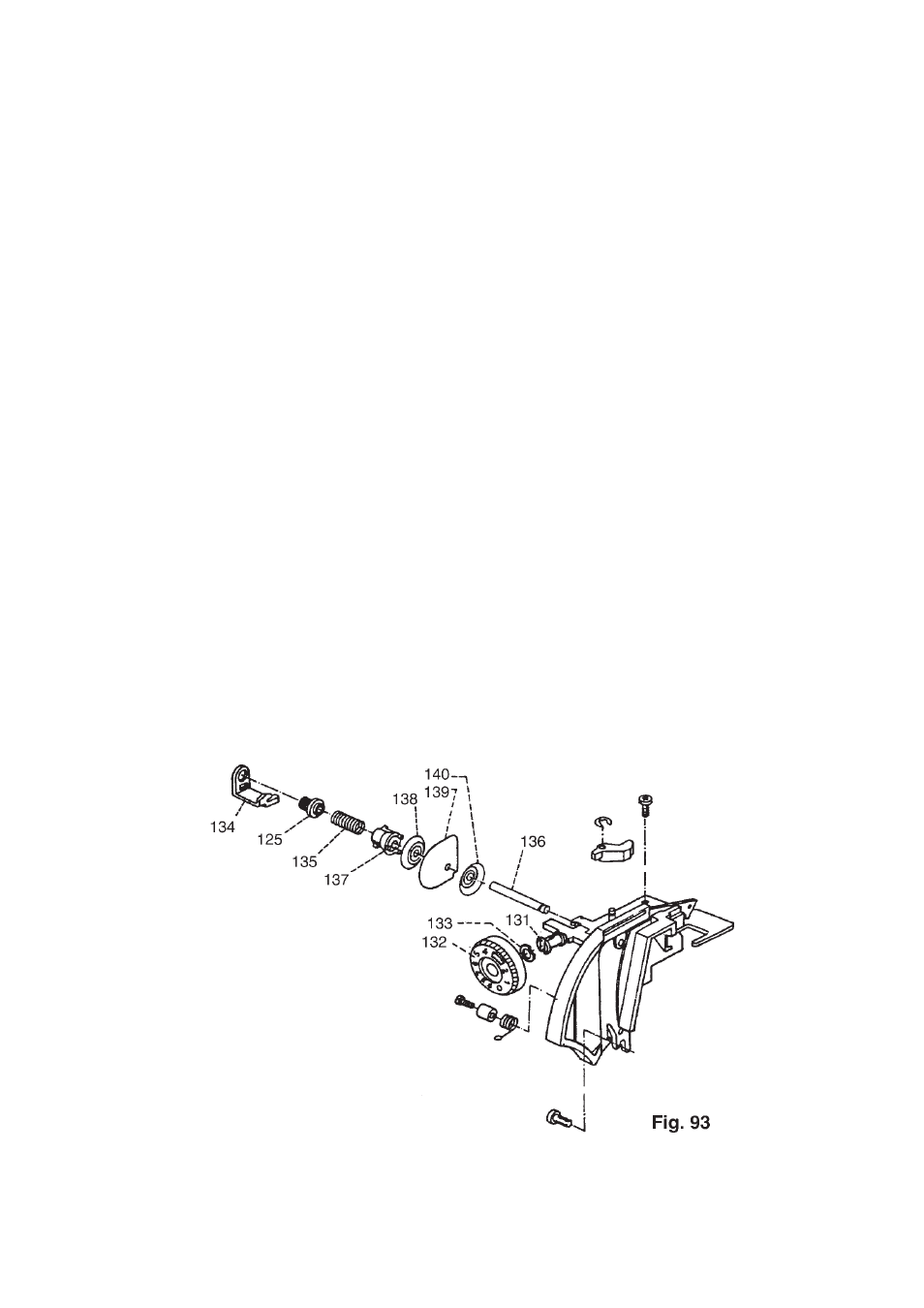

Press the two plastic noses 131 together and remove tension dial 132 (fig. 93).
z
Remove spring disk 133.
z
Turn knurled nut 125 out of guide 134.
z
Remove guide 134.
z
Remove knurled nut 125 and pressure spring 135.
z
Pull out or knock out cemented tension stud 136 complete with pressure piece 137 and the three tensi-
on disks 138, 139 and 140.
Fitting:
z
Insert tension stud 136 with the three tension disks and fit pressure piece.
z
Cement tension stud into the mounting plate with Onmivit-Rapid.
z
Push pressure spring 135 and knurled nut 125 onto tension stud 136.
z
Insert guide 134 with its right side and fully screw in knurled nut 125.
z
Push on adjustment dial 132 making sure that the guide nose is in contact with the outer surface of the
curve.
z
Install the needle thread tension.
z
Adjust the needle thread tension according to section 35.
