Pfaff 1540 - Manual (Page 50)

48

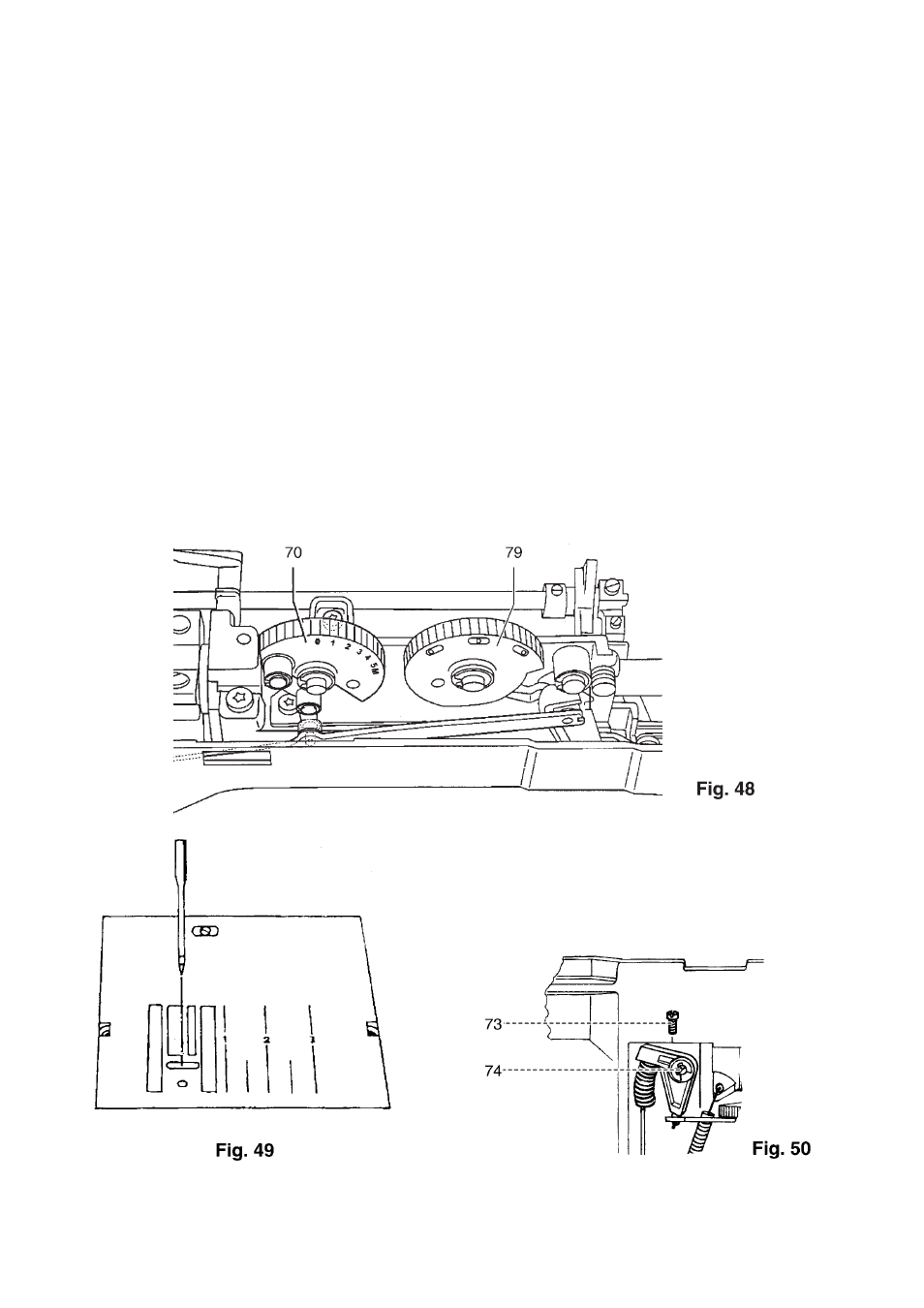

24. Basic position of setting eccentric for the sideways needle position on Pfaff 1540
Requirement:
In its basic position the setting eccentric must point upwards at a position approx. 45 degrees towards the
left (fig. 47).
Adjustment:
z Set stitch width adjustment dial 70 to "0" (fig. 47).
z Set needle position adjustment wheel 79 to "center".
z Press straight stitch and zigzag stitch button.
z Loosen screw 73 (fig. 49).
z Rotate setting eccentric 74 upwards and 45 degrees to the left.
z Rotate setting eccentric 16 to the left and to the right, until the needle is centered in the needle
slot (fig. 48).
z Tighten screw 73.
