15. Replacing the zigzag-stitch unit on Pfaff 1520 - 1530
Removal:
z
Disconnect the machine's mains plug.
z
Remove the housing covers as described in this manual.
z

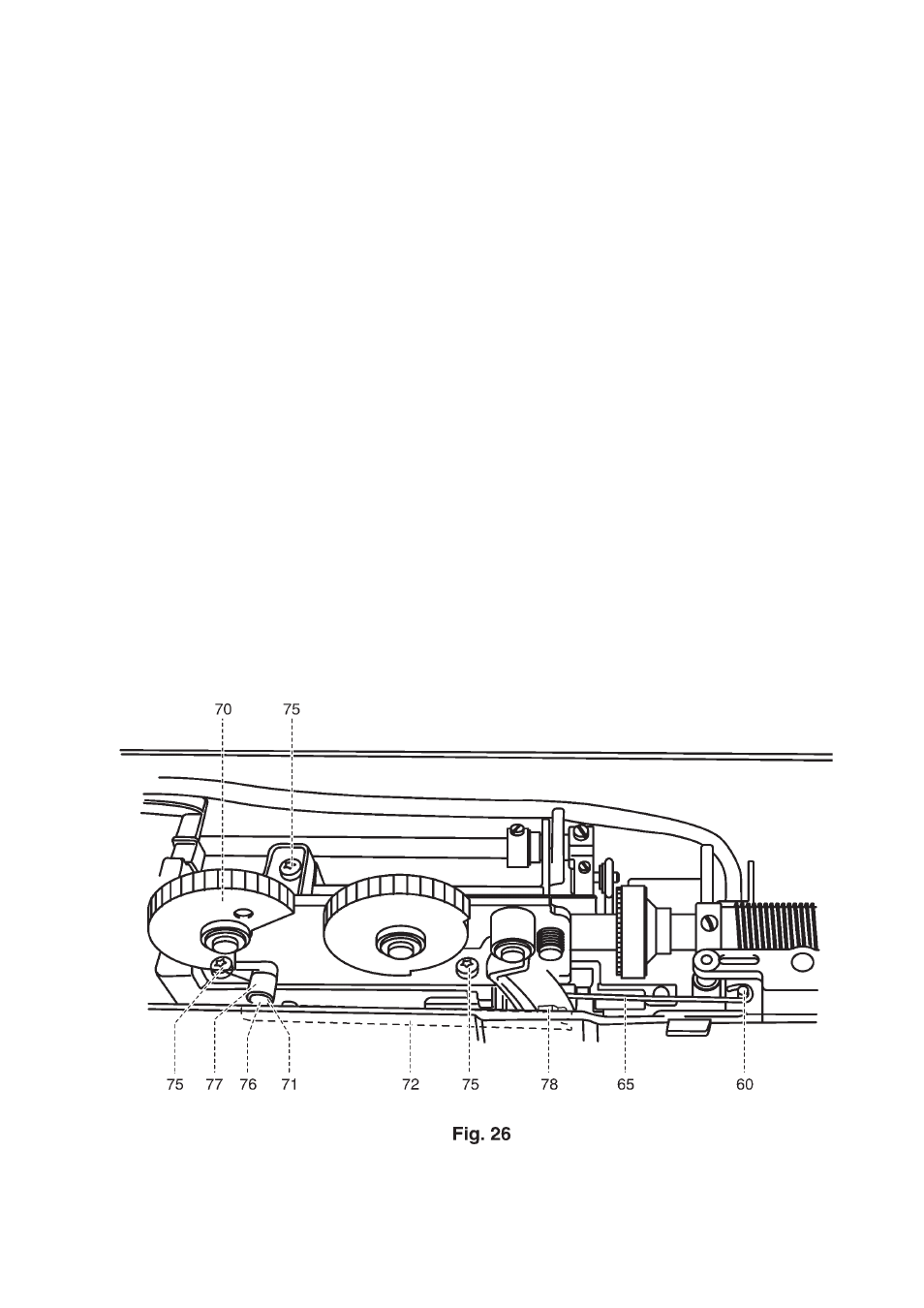

Set stitch width adjustment dial 70 to "0" (fig. 26).
z
Remove circlip 71 from connecting rod 72.
z
Remove circlip 60.
z
Remove connecting rod 65.
z
Remove fastening screws 75.
z
Carefully remove the zigzag unit from the machine.
Fitting:
z
Insert bolt 76 of connecting rod 72 into joint piece 77 of the zigzag unit (fig. 26).
z
Fit the zigzag unit in the machine inserting at the same time connecting rod 72 with sliding block 78
into the crank.
z
Position the zigzag unit parallel to the arm shaft and gently tighten fastening screws 75.
z
Refit circlip 71.
z
Insert connecting rod 65.
z
Refit circlip 60.
