Installing the single – 48 vdc power supply, V power supply, refer to, Figure 2-9 – Paradyne 3160 User Manual
Page 30: Installing the single – ā 48 vdc power supply, Procedure
Installation
2-6
3160-A2-GB21-80
March 1999
1
2
3
4
5
6
BLACK
RED
GREEN
WHITE
ORANGE
BLUE
GROUND
+ 24 VDC RETURN
+ 24 VDC SOURCE
99-14298-02
X
X
X
DSU/CSU POWER
PLUG
TO CUSTOMER-SUPPLIED BATTERY
Figure 2-9.
+24 Vdc Power Supply Pinouts
Installing the Single –
ā48 Vdc Power Supply
To install the DSU/CSU using a single source – 48 Vdc SELV power supply, refer
to
and use the following procedure.
"
Procedure
To install the – 48 Vdc single source power supply:
1. Connect the black and red wires to the – 48 Vdc return source.
2. Connect the green wire to a suitable ground.
3. Connect the orange and blue wires to the –
ā
48 Vdc input source.
4. Cut the white wire off at the outer insulation.
5. Plug the power connector into the DSU/CSU.
1
2
3
4
5
6
BLACK
RED
GREEN
WHITE
ORANGE
BLUE
– 48 VDC INPUT
99-14299-02
X
GROUND
DSU/CSU POWER
PLUG
TO CUSTOMER-SUPPLIED BATTERY
– 48 VDC RETURN

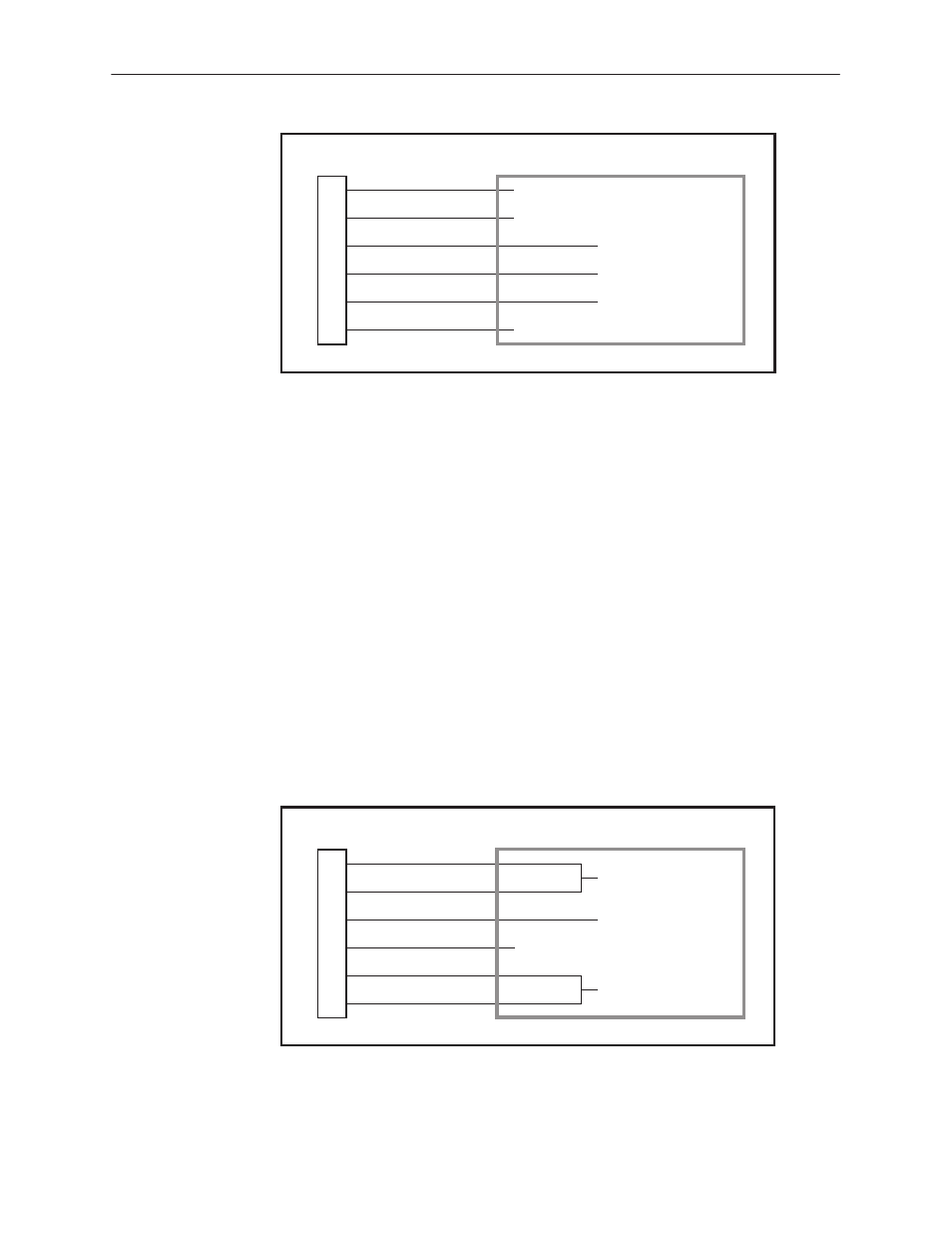

Figure 2-10.
– 48 Vdc Single Source Power Supply Pinouts
