Maintenance
4-27 3160-A2-GB21-80 March 1999

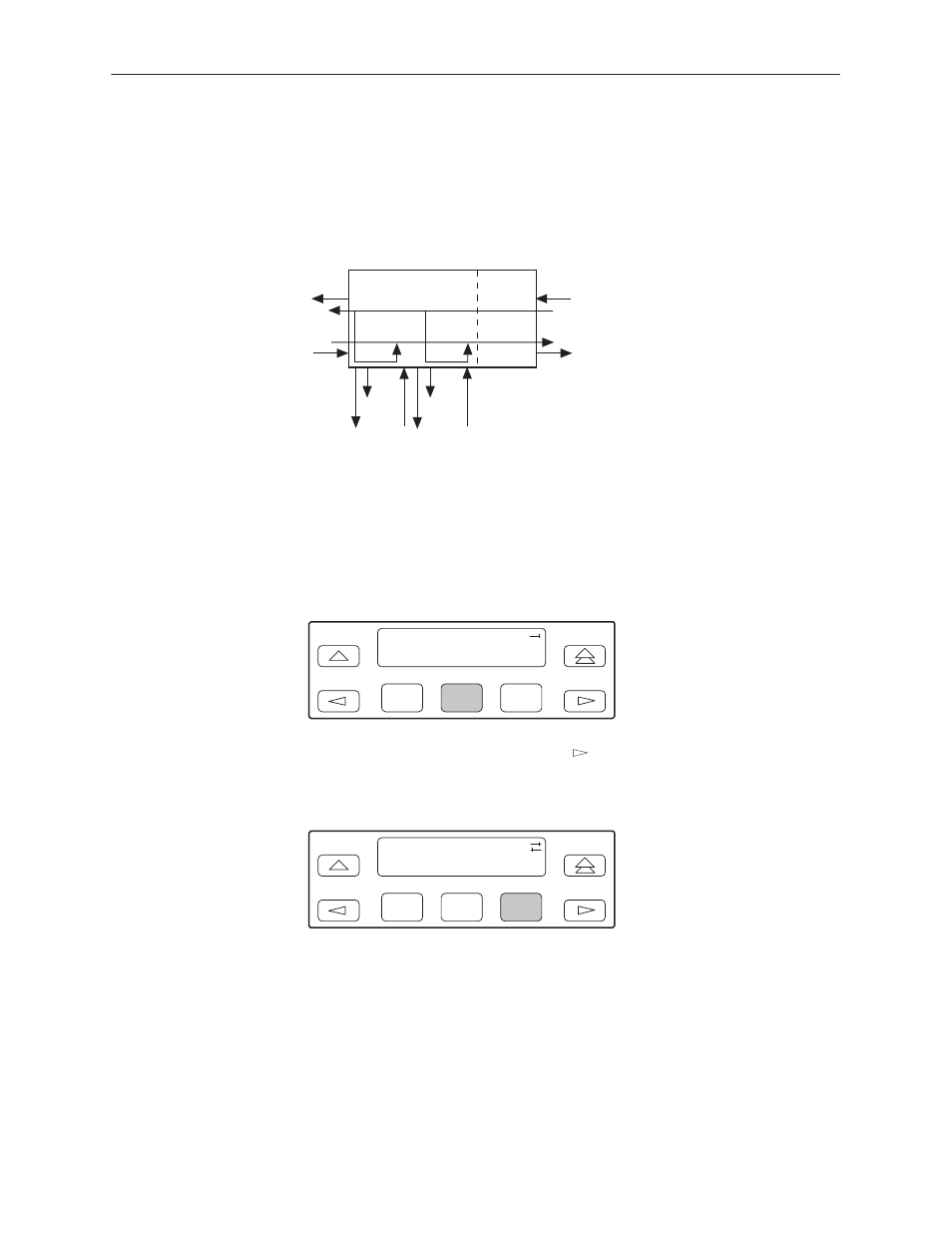

Starting a Data Channel Loopback
The Data Channel Loopback command (DCLB) loops the data received from the
network interface, for all DS0 channels allocated to the selected port, back to the
network. The loopback occurs after the data passes through the port circuitry but
before it is sent out the data port.
496-14315-02
CSU DSU
NETWORK
INTERFACE
DTE
(DSX-1)
DCLB DCLB
PORT 1 PORT 2
ALL 1s ALL 1s
"
Procedure
To perform a Data Channel loopback:
1. From the top-level menu screen, select Test.
2. From the Test screen, select Lpbk.
F1
Test:
Rlpbk Lpbk
Ptrns
F2 F3
3. From the Loopback screen, press the key until the DCLB selection
appears on the screen.
4. Select DCLB.
F1
Loopback:
DLB
RLB DCLB
F2 F3
