Maintenance
4-31 3160-A2-GB21-80 March 1999
Sending Test Patterns
Use the Send command to start transmission of a test pattern.
Only one test pattern can be active at a time on one port. Table 4-9 lists the valid
send test pattern combinations. Valid combinations are identified by YES.
"
Procedure
To send a test pattern:

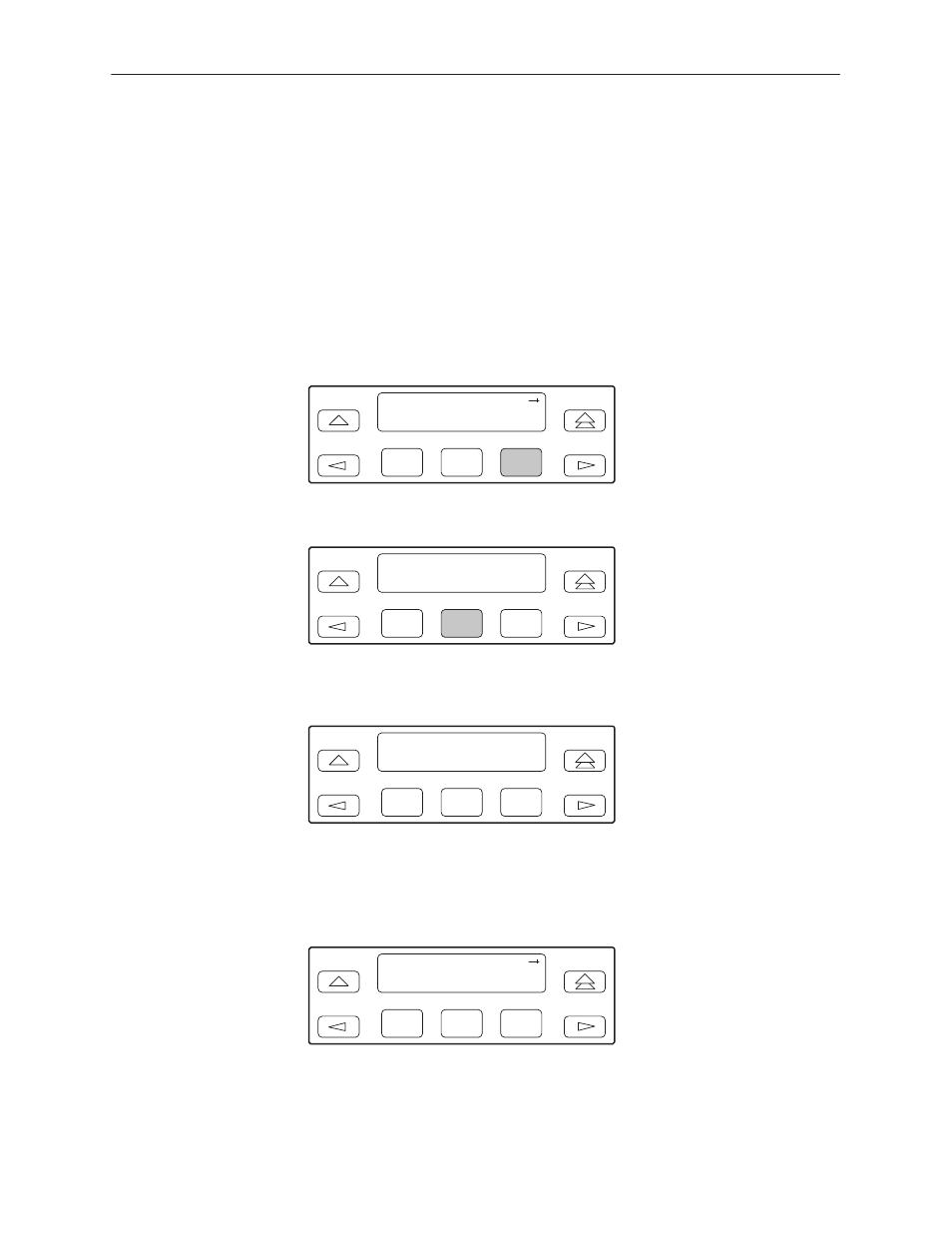

1. From the top-level menu screen, select Test.
2. From the Test screen, select Ptrns.
F1
Test:
Rlpbk Lpbk
Ptrns
F2 F3
3. From the Patterns screen, select Send.
F1
Patterns:
Abort
Send Mon
F2 F3
4. From the Patterns Send screen, press F1 to send a QRSS pattern, F2 to
send a 1-in-8 pattern, F3 to send a 511 pattern.
F1
Patterns: Send
QRSS
1in8 511
F2 F3
If you send a 1-in-8 pattern, skip Step 5.
5. From the Send screen, press the Function key that corresponds to network or
the port for which you want to send a test pattern. Use the scroll keys, if
necessary. (NET does not appear for the 511 pattern.)
F1
Send: Name
NET Prt1 Prt2
F2 F3
