Install the FastTrak Card
The FastTrak TX2200 or TX2300 Serial ATA RAID card fits into any available
PCI slot on your PC's motherboard (below):
•
32-bit PCI slot (must be PCI 2.2 or 2.3 compliant)
• The 32-bit portion of a 64-bit PCI or PCI-X slot
1. Remove the cover of your system.
2. Install the FastTrak Serial ATA RAID card into the open PCI slot.
Note
The FastTrak TX Series RAID Controller card is a PCI Plug-n-Play
(PnP) device. No changes are necessary in the motherboard
CMOS/BIOS Setup for resources or drive types in most
applications.

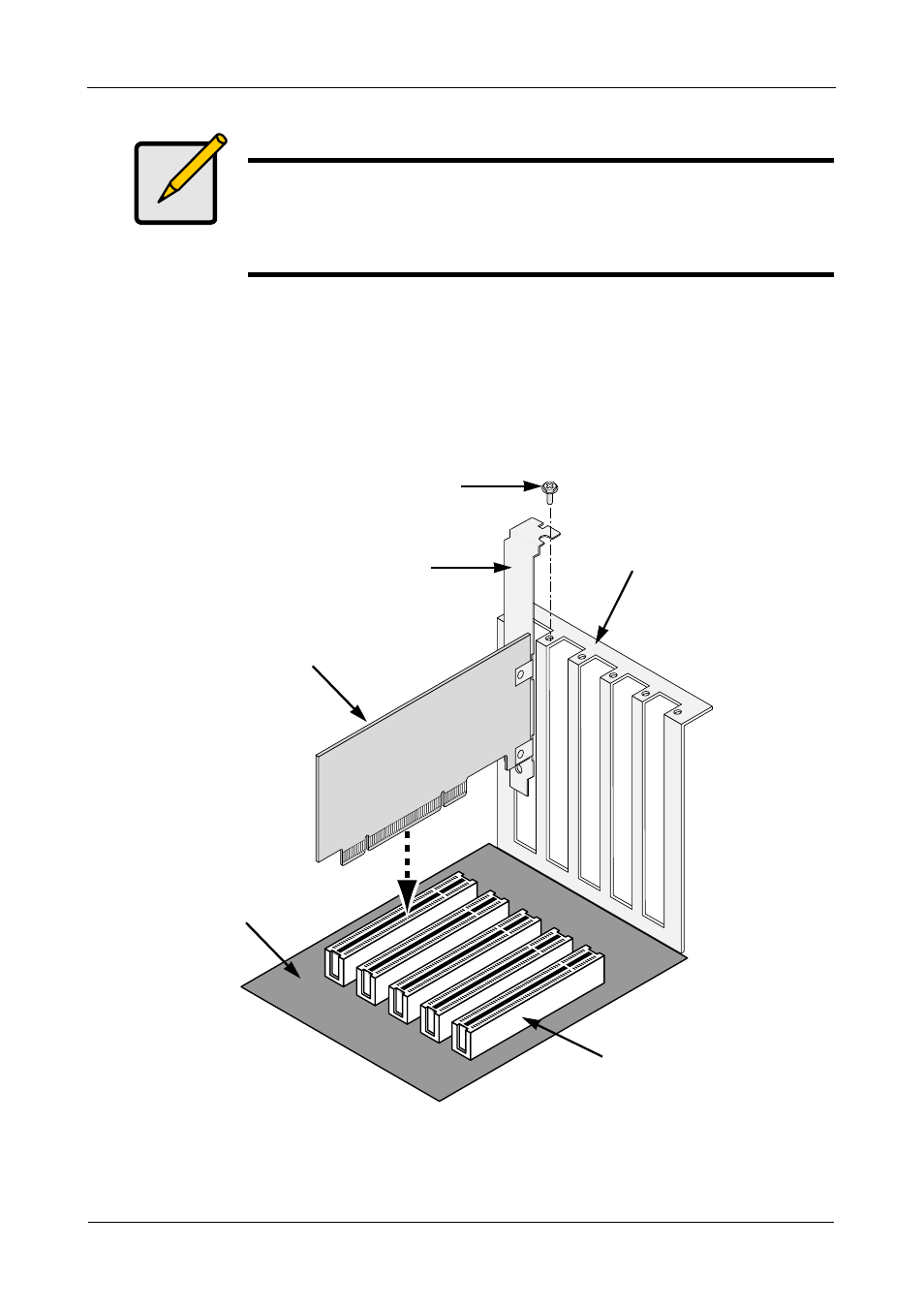

Bracket
Attaching screw
FastTrak Serial
ATA RAID card
PCI slots
Motherboard
System frame
