Chapter 4: FastBuild™ Utility
33
View Drive Assignments

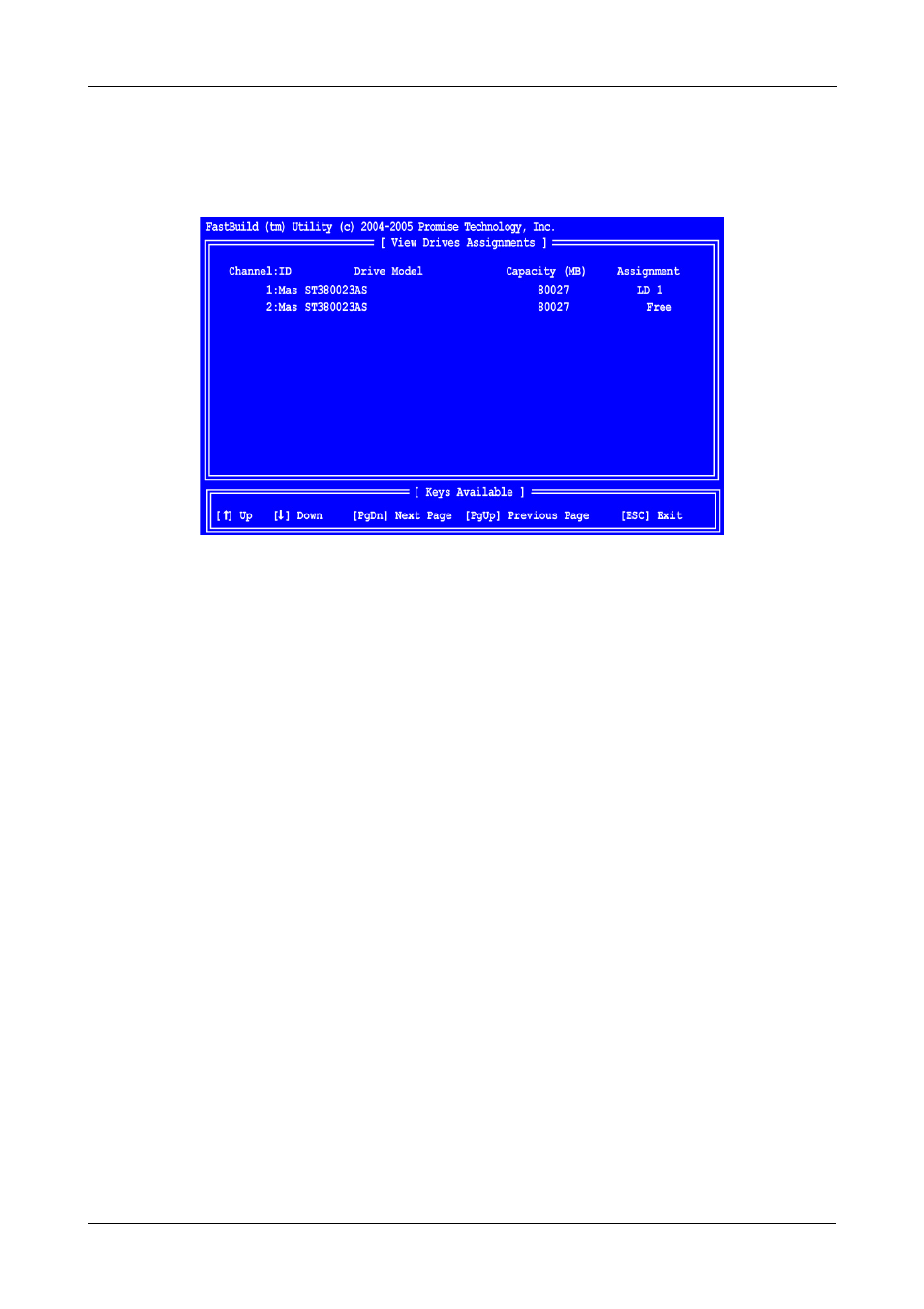

From the Main Menu screen, press 1 to see the View Drive Assignments screen
(below).
This screen reports physical (disk) drive assignments and provides the following
information:
Channel: ID – Shows the FastTrak Controller channel ID (1 and 2) to which a
particular disk drive is attached.
Drive Model – Identifies the manufacturer, model, and model number (if
applicable) of each disk drive.
Capacity (MB) – Reflects the capacity in MB (megabytes) of the disk drive.
Assignment – This field identifies the logical drive to which the disk drive
belongs. LD 1 means logical drive 1. JBOD also appears as LD on this screen.
Unassigned drives are labeled Free. Unassigned drives may also be used to
create a new logical drive at any time.
