13
English
P-SCAN
ON OFF
Pb
DIGITAL
OUT
DIGITAL
IN
AUX
IN
TV
IN LINE
OUT
AUDIO VIDEO
OUT
CVBS
S-VIDEO
FM ANTENNA
MW
L
R
Y
AUDIO
OUT
Pr/Cr
Pb/Cb
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
AUDIO OUT Pr/Cr
Pb/Cb
Y
S-VIDEO IN
VIDEO IN
COMPONENT VIDEO IN
1
Pr
2
SURROUND
CENTER
FRONT
L
R
SL
SR
C
SUB-WOOFER
3

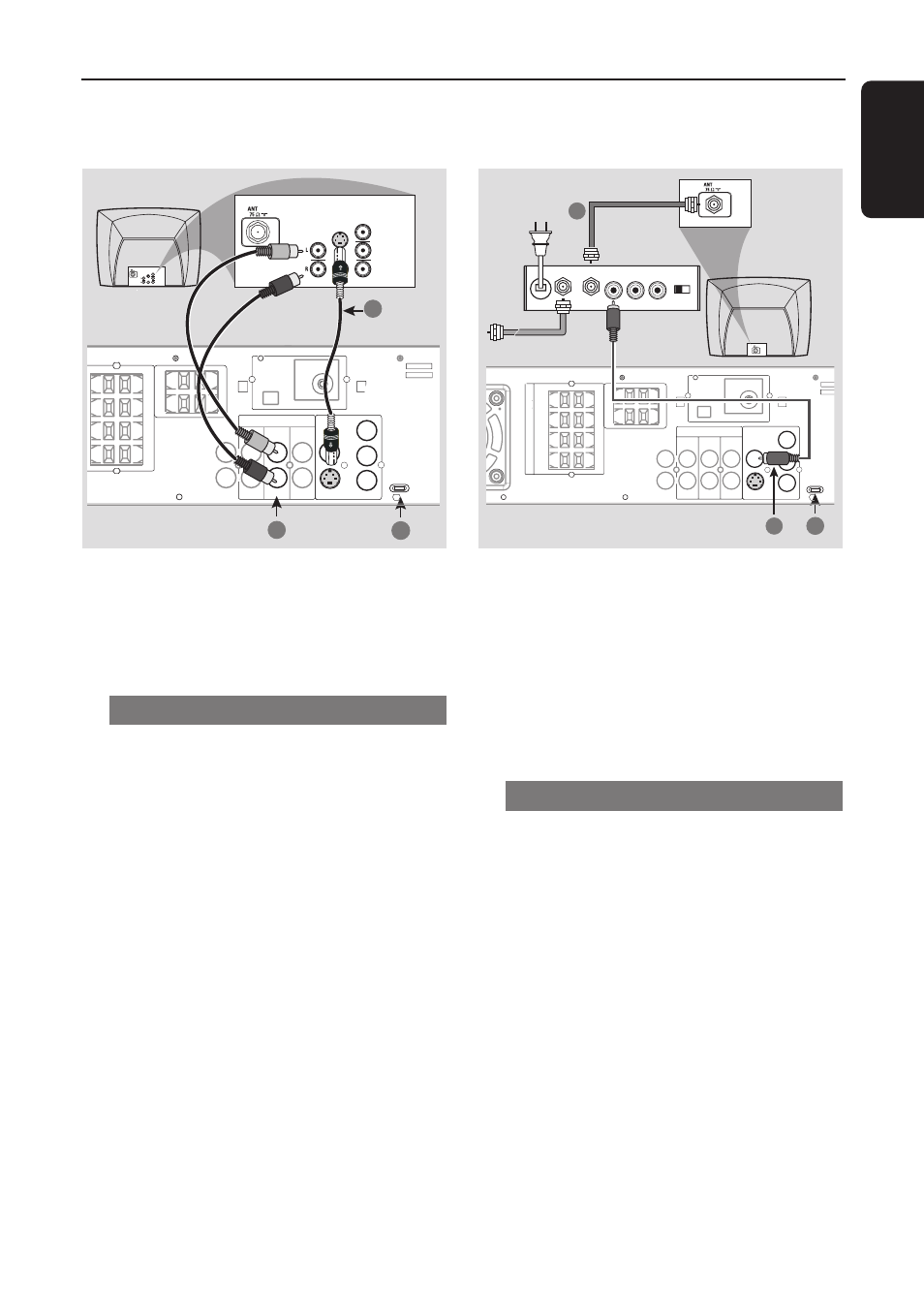

Connections
IMPORTANT!
– If your TV only has a single Antenna In
jack (or labelled as 75 ohm or RF In),
you will need an RF modulator in order
to view the DVD playback on the TV.
See your electronics retailer or contact
Philips for details on RF modulator
availability and operations.
Using an accessory RF modulator
1
Use the composite video cable (yellow) to
connect the DVD system’s CVBS jack to the
video input jack on the RF modulator.
2
Use the RF coaxial cable (not supplied) to
connect the RF modulator to your TV’s RF
jack.
3
Set the P-SCAN switch to ‘OFF.’
IMPORTANT!
– S-Video connection provides better
picture quality. This option must be
available on your TV.
Using S-Video jack
1
Use the S-video cable (not supplied) to connect
the DVD system’s S-VIDEO OUT jack to the
S-Video input jack (or labelled as
Y/C or S-VHS) on the TV.
2
To hear the TV channels through this DVD
system, use the audio cables (white/red) to
connect TV IN (L/R) jacks to the
corresponding AUDIO OUT jacks on the TV.
3
Set the P-SCAN switch to ‘OFF.’
Pb
DIGITAL
OUT
DIGITAL
IN
AUX
IN
TV
IN LINE
OUT
AUDIO VIDEO
OUT
CVBS
S-VIDEO
FM ANTENNA
MW
L
R
Pr
Y
AUDIO IN
R L VIDEO
IN
TO TV INT IN
CH3 CH4
1
2
SPEAKER SYSTEMS
SURROUND
CENTER
FRONT
L
R
SL
SR
C
SUB-WOOFER
3
P-SCAN
ON OFF
RF coaxial cable to TV
Antenna or Cable
TV signal
Back of RF Modulator
(example only)
