Connections
Step 3: Connecting speakers
and twin subwoofer
P-SCAN
ON OFF
Pr
Pb
Y
DIGITAL
OUT
DIGITAL IN
AUX
IN
TV
IN LINE
OUT
AUDIO VIDEO
OUT
CVBS
S-VIDEO
FM ANTENNA
MW
L
R
~ AC MAINS
SPEAKER SYSTEMS
SURROUND
CENTER
FRONT
L
R
SL
SR
C
SUB-WOOFER
L
R
110V
127V
220V
240V
VOLTAGE SELECTOR
front speaker
with subwoofer
stand (right)
front speaker
with subwoofer
stand (left)
Surround speaker
(right)
Surround speaker
(left)
Centre
speaker

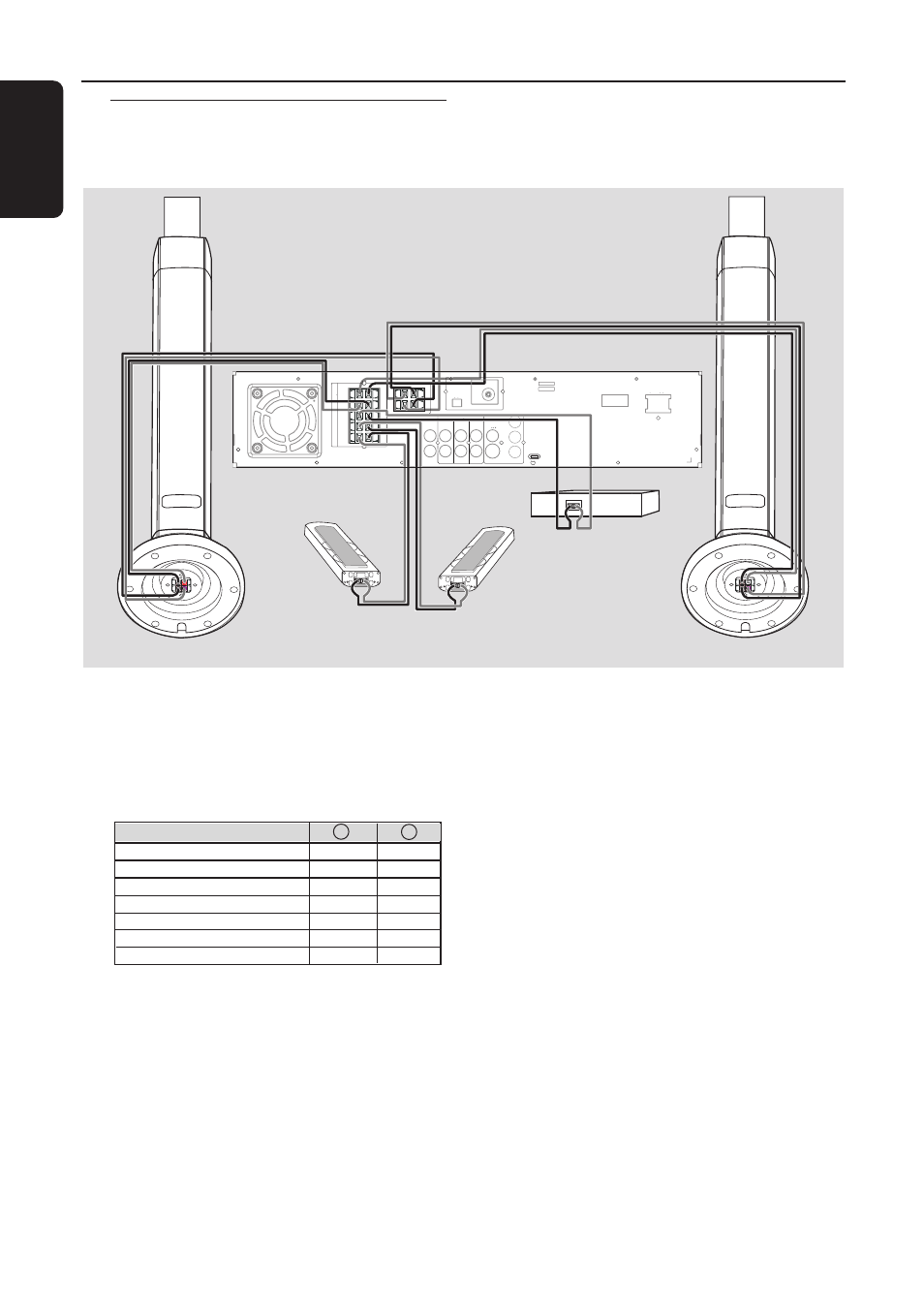

Connect the supplied speaker systems using
the supplied speaker cables by matching the
colours of the jacks and speaker cables.
Fully insert the stripped portion of the speaker
wire into the jacks.
Speakers / Subwoofer - +
Front Left (FL) (L) black white
Front Right (FR) (R) black red
Center (C) black green
Surround Left (SL) black blue
Surround Right (SR) black gray
Subwoofer (L) black purple
Subwoofer (R) black purple
Notes:
– Ensure that the speaker cables are correctly
connected. Improper connections may damage the
system due to short-circuit.
– Do not connect more than one speaker to any
one pair of
+/- speaker jacks.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
