4.1 Mounting

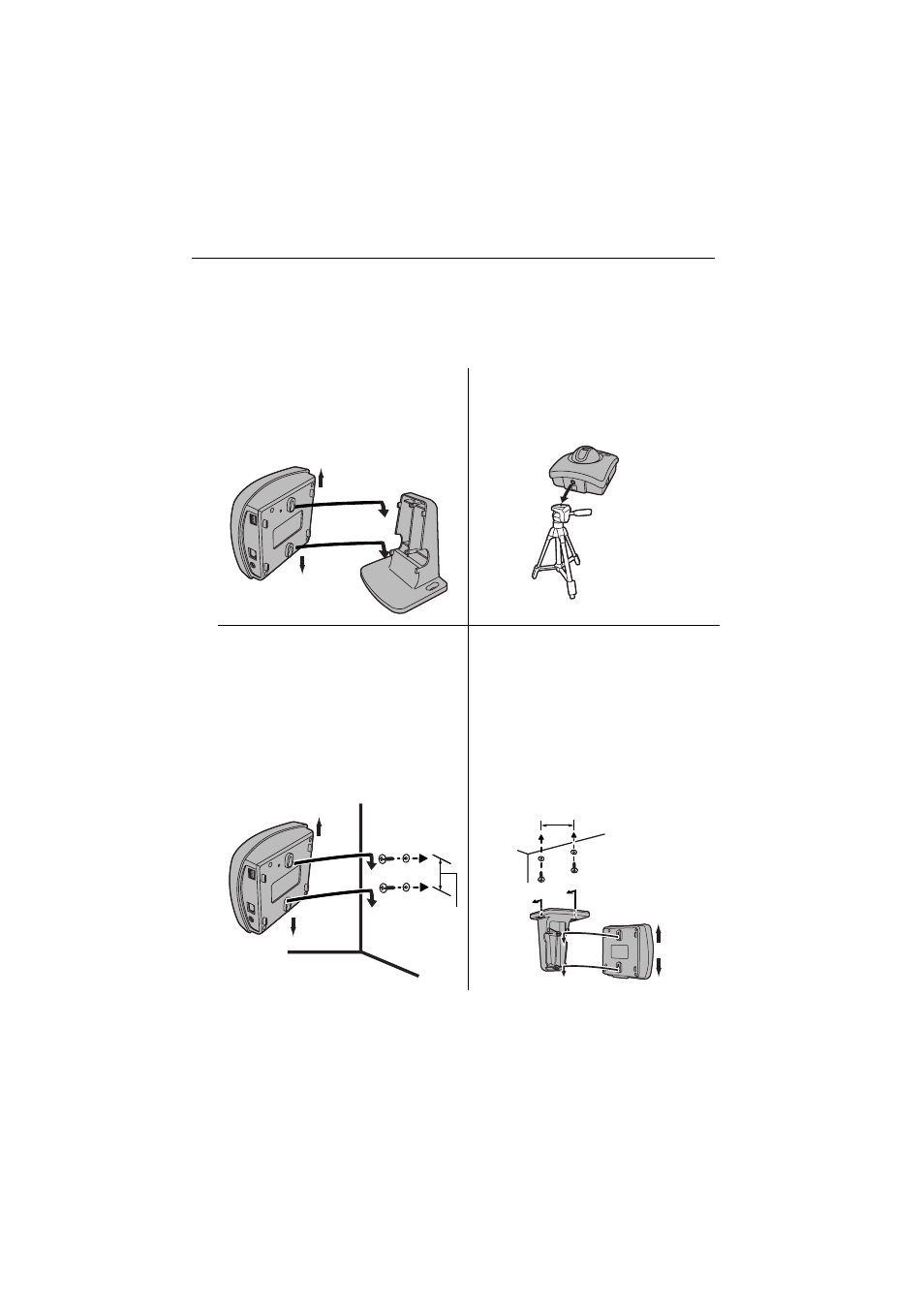

Four ways of mounting are shown in the following figures. Confirm the top and
bottom of Network Camera when mounting.
b), c): Fix the unit tightly by sliding it.
Camera Stand Mounting
Fix Network Camera to the Camera
Stand.
Tripod Mounting
Attach Network Camera to the tripod by
using the tripod bolt.
Wall Mounting
a) Screw the two screws
(accessories) into the wall. The
distance of two screws should
be 70 mm (2.75 inches).
b) Fix Network Camera to the
screws.
Ceiling Mounting
a) Screw the two screws
(accessories) into the ceiling.
The distance of two screws
should be 76 mm (2.99 inches).
b) Fix Network Camera to the
Camera Stand.
c)
Fix Camera Stand to the screws.
bottom
top
70 mm
(2.75 inches)
a)
b)
bottom
top
76 mm (2.99 inches)
a)
c)
b)
bottom
top
