Preparation
7
VQT1C60

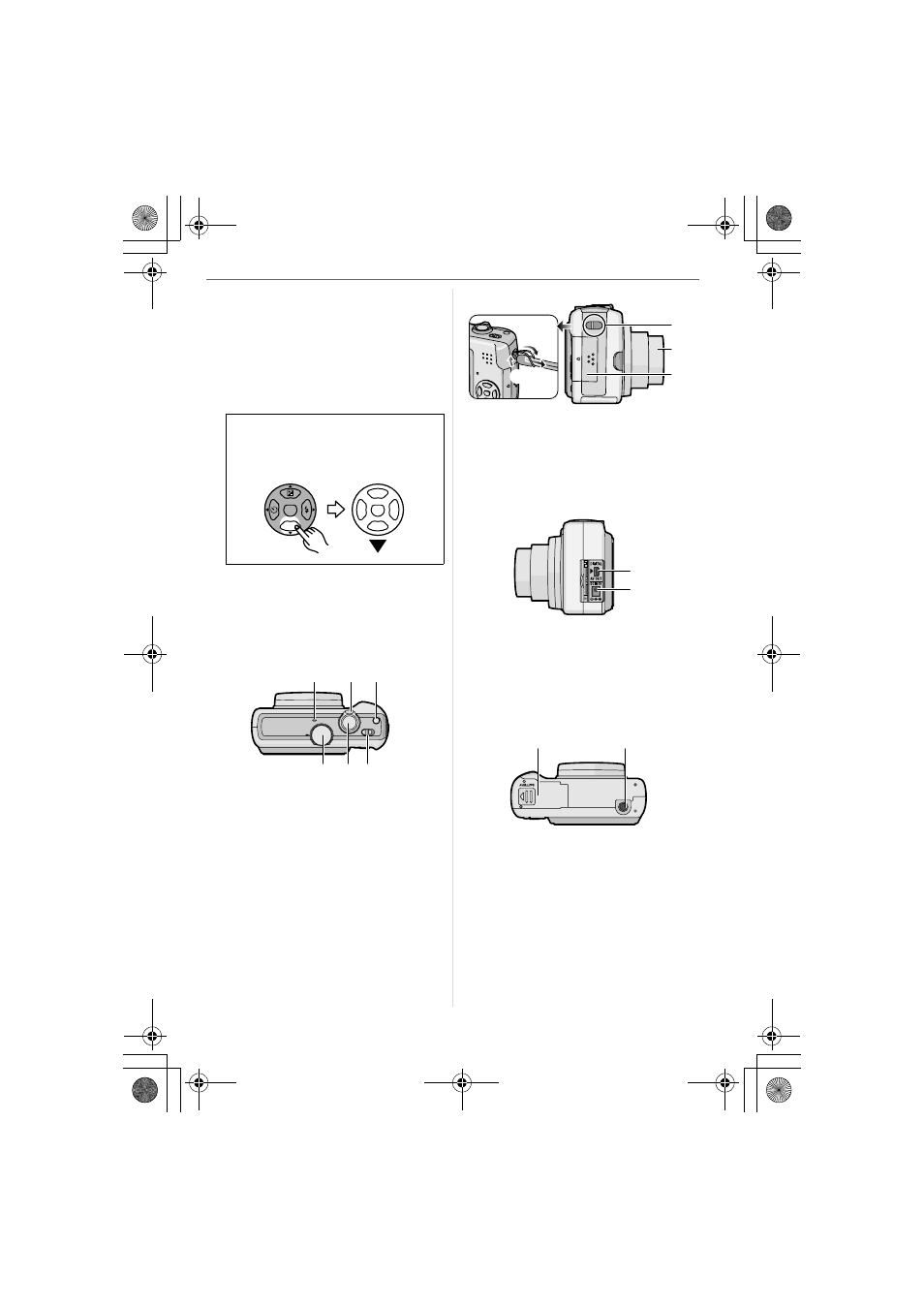

6 Cursor buttons
2/Self-timer button (P39)
4/[REV] button (P29)
1/Flash setting button (P36)
3/Exposure compensation (P40)/White
balance fine adjustment (P57)/Backlight
compensation in simple mode button
(P26)
7 [MENU/SET] button (P18)
8 [DISPLAY] (P33)/[HIGH ANGLE] (P35)
button
9 [FUNC] (P55)/Delete (P30) button
10 Microphone (P49)
11 Zoom lever (P26)
12 [E.ZOOM] button (P27)
13 Mode dial (P16)
14 Shutter button (P22, 49)
15 Camera ON/OFF switch (P8, 15)
16 Strap eyelet
• When detaching the strap, untie the
knot in the string with a pointed object
and then detach it.
17 Lens barrel
18 Card door (P13)
19 [DIGITAL/AV OUT] socket
(P79, 82, 86)
20 [DC IN] socket (P79, 82)
• Always use a genuine Panasonic AC
adaptor (DMW-AC6G; optional).
21 Battery door (P13)
22 Tripod receptacle
• When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
In these operating instructions,
operations using the cursor button
are described with illustrations below.
e.g.: When you press the
4 button
REV
MENU
SET
10 11 12
13 15 14
16
18
17
2 1
19
20
21 22
