Page 9
1. Introduction and Installation
9
For assistance, please visit http://www.panasonic.com/help
N
Station keys
L
To use the one-touch dial feature (page 44, 45).
O
{
Broadcast}
L
To send a document to multiple parties (page 46).
P
{
Manual Broad}
L
To send a document to multiple parties by storing
using the dial keypad (page 46).
Q
{
Lower}
L
To select stations 4–6 for the one-touch dial
feature (page 44, 45).
R
Navigator key
L
To select desired settings.
L
To adjust the volume (page 21).
L
To search for a stored item (page 45).
S
{
Set}
L
To store a setting during programming.
T
{
Monitor}
L
To initiate dialing.
When you press {Monitor} while receiving a call,
you will be able to hear the other party, but the
other party will not be able to hear you.
U
{
Black}
L
To copy a document in monochrome (page 36).
L
To scan a document in monochrome (push scan)
(page 32).
L
To send or receive a fax (page 43, 49).
V
{
Color}
L
To copy a document in color.
L
To scan a document in color (push scan).
W
{
Stop}
L
To stop an operation or programming session.
L
To erase a character/number.

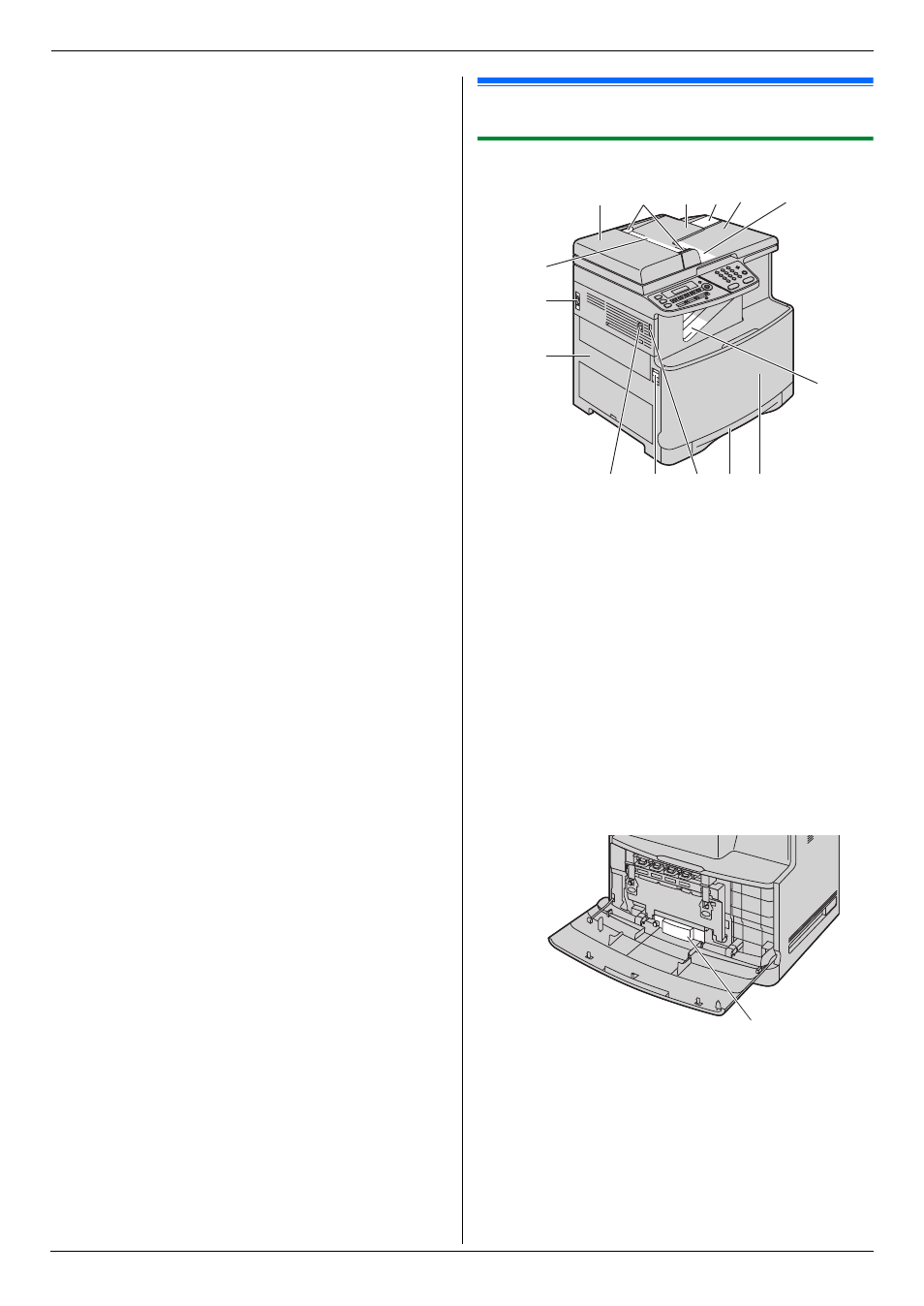

1.4 Overview
1.4.1 Front view
*1 The unit can hold up to approximately 100 sheets of
printed paper. Remove the printed paper before the
recording paper exit becomes full.
*2 The waste toner cartridge stores toner that is
discharged during printing. See page 106 for
information on the waste toner cartridge life.
1 ADF (Automatic Document Feeder) cover
2 Document guides
3 Document tray
4 Document tray extender
5 Document cover
6 Document exit
7 Document entrance
8 Power switch
9 Left cover
j Handset unit (optional) connection jack
k Left cover open lever
l Handset cord holder
m Standard input tray
n Front cover
o Recording paper exit
p Waste toner cartridge (pre-installed inside the
unit)
1 2
o
6
5
4
8
7
9
j k l m n
3
p
