Connecting Input Devices
A PC or notebook computer as well as video devices can be connected to the projector at the same
time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital
still cameras. Check the user manual of the connecting device to confirm it has the appropriate output
connector.

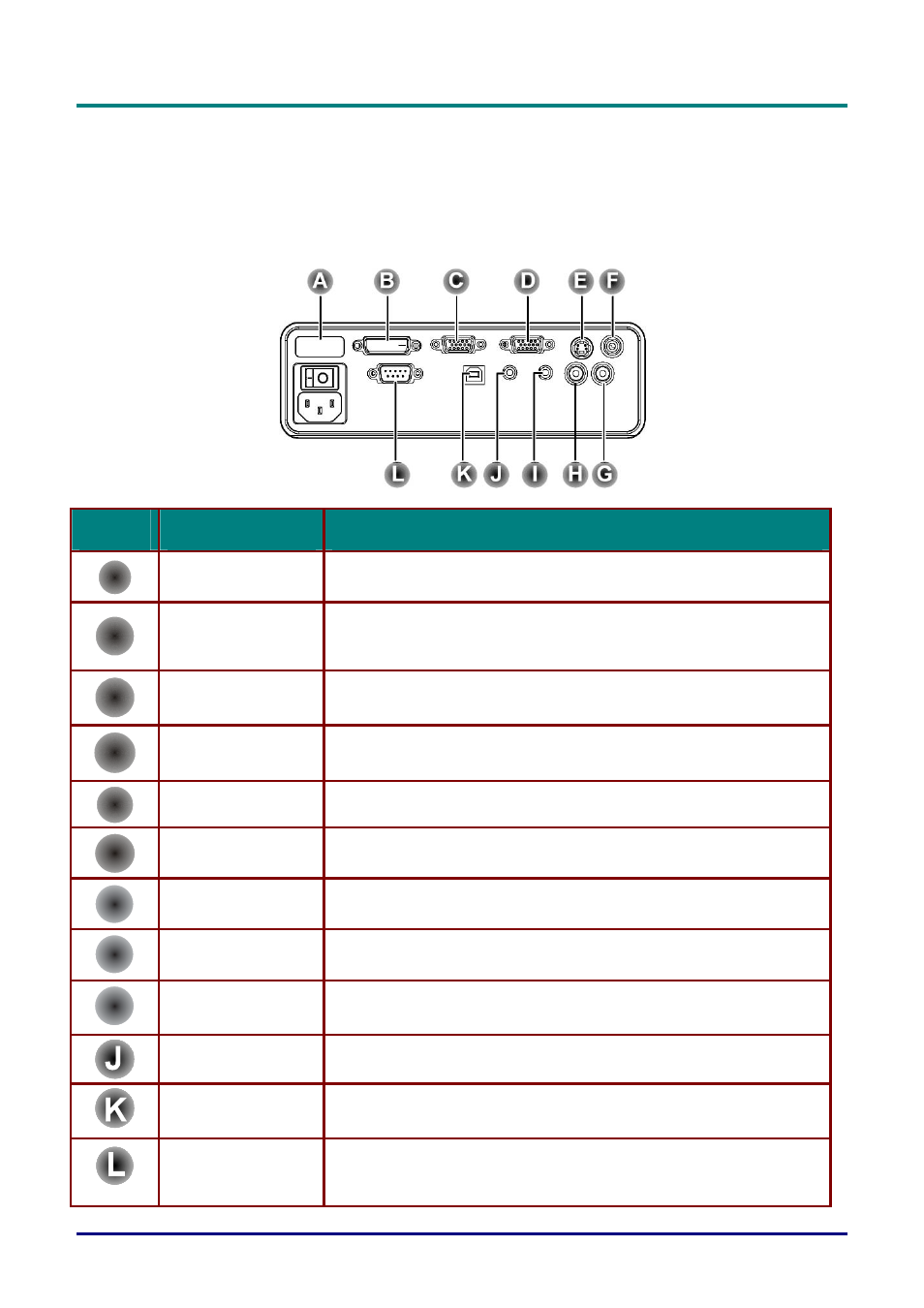

I TEM L ABEL D ESCRIPTION
A Rear IR Receiver for IR signal from remote control.
B DVI-D
(For PR5020 only)
Connect DVI-D cable (not supplied) from a computer.
C
VGA in Connect a VGA cable (supplied) from a computer.
D VGA out Connect a VGA cable (not supplied) to a monitor.
E
S-video Connect S-video cable (not supplied) from a video device.
F
Video Connect a composite video cable (supplied) from a video device.
G
Audio in-R Connect the audio cable (supplied) from an audio input device.
H
Audio in-L Connect the audio cable (supplied) from an audio input device.
I
– 11 –
Audio-in Connect an audio cable (supplied) from the computer’s audio-out connec-
tor.
Audio-out Audio loop-thru
USB Connect the supplied USB cable (supplied) from a computer for USB
mouse function and firmware upgrades.
RS-232
(For PR5020 only)
Reserved for installation control.
