DLP® Projector – User’s Manual

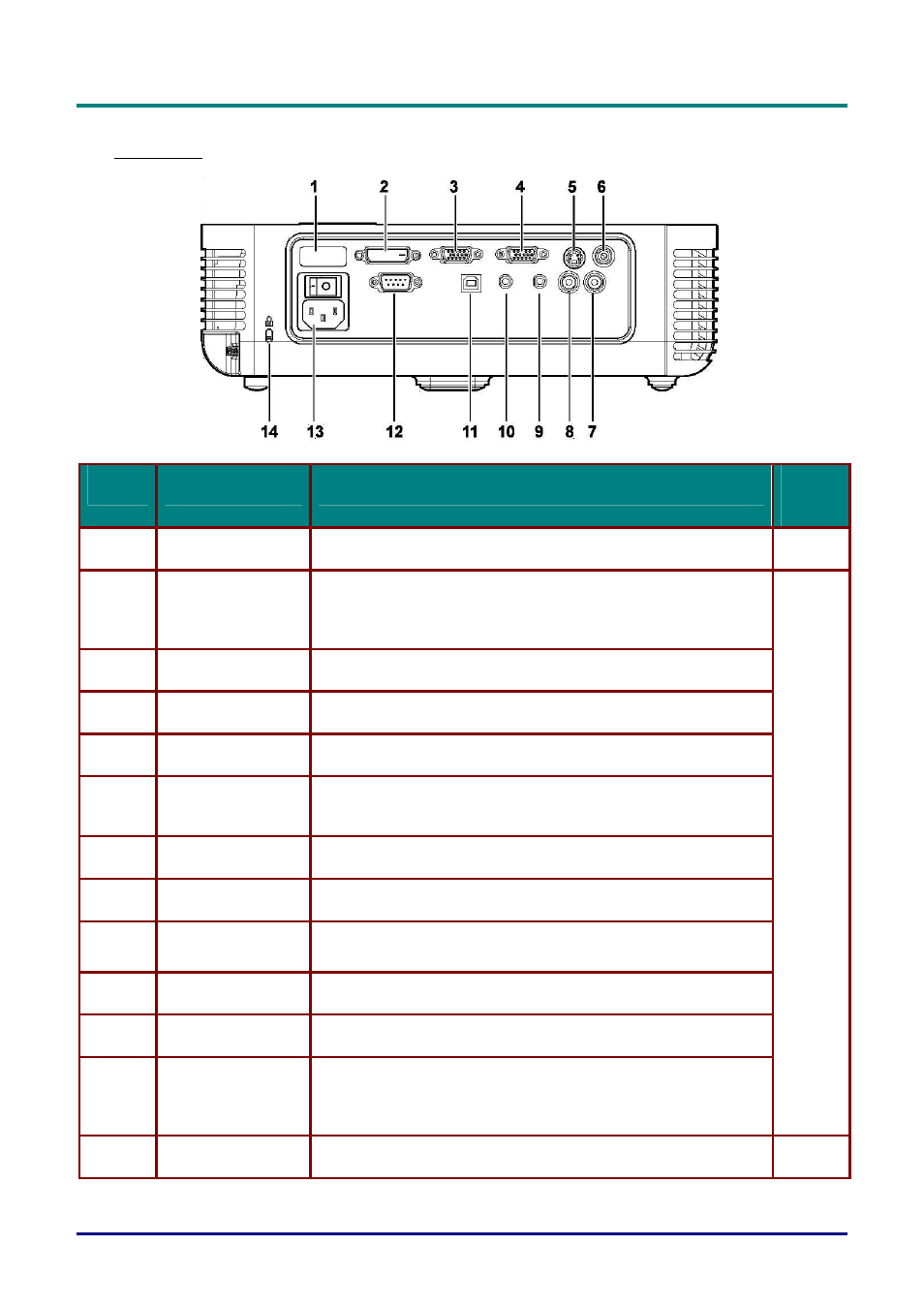

Rear view
I TEM L ABEL D ESCRIPTION S EE
PAGE :
1.
Rear IR receiver Receiver for IR signal from remote control 7
2. DVI-D
(For PR5020 only)
Connect a DVI-D cable (not supplied) from a computer
3.
VGA IN Connect a VGA cable (supplied) from a computer
4.
VGA OUT Connect to a monitor (not supplied)
5. S-video Connect the S-video cable (not supplied) from a video device
6. Video Connect a composite video cable (supplied) from a video de-
vice.
7. Audio in-R Connect the audio cable (supplied) from an audio input device.
8.
Audio in-L Connect the audio cable (supplied) from an audio input device.
9.
Audio-in Connect an audio cable(supplied) from the computer’s audio-out
connector.
10. Audio-out Audio loop-thru
11. USB Connect the USB cable (supplied) from a computer
12.
RS-232
(For PR5020 only)
Installation control
11
13. Power Connect the power cord (supplied) 13
