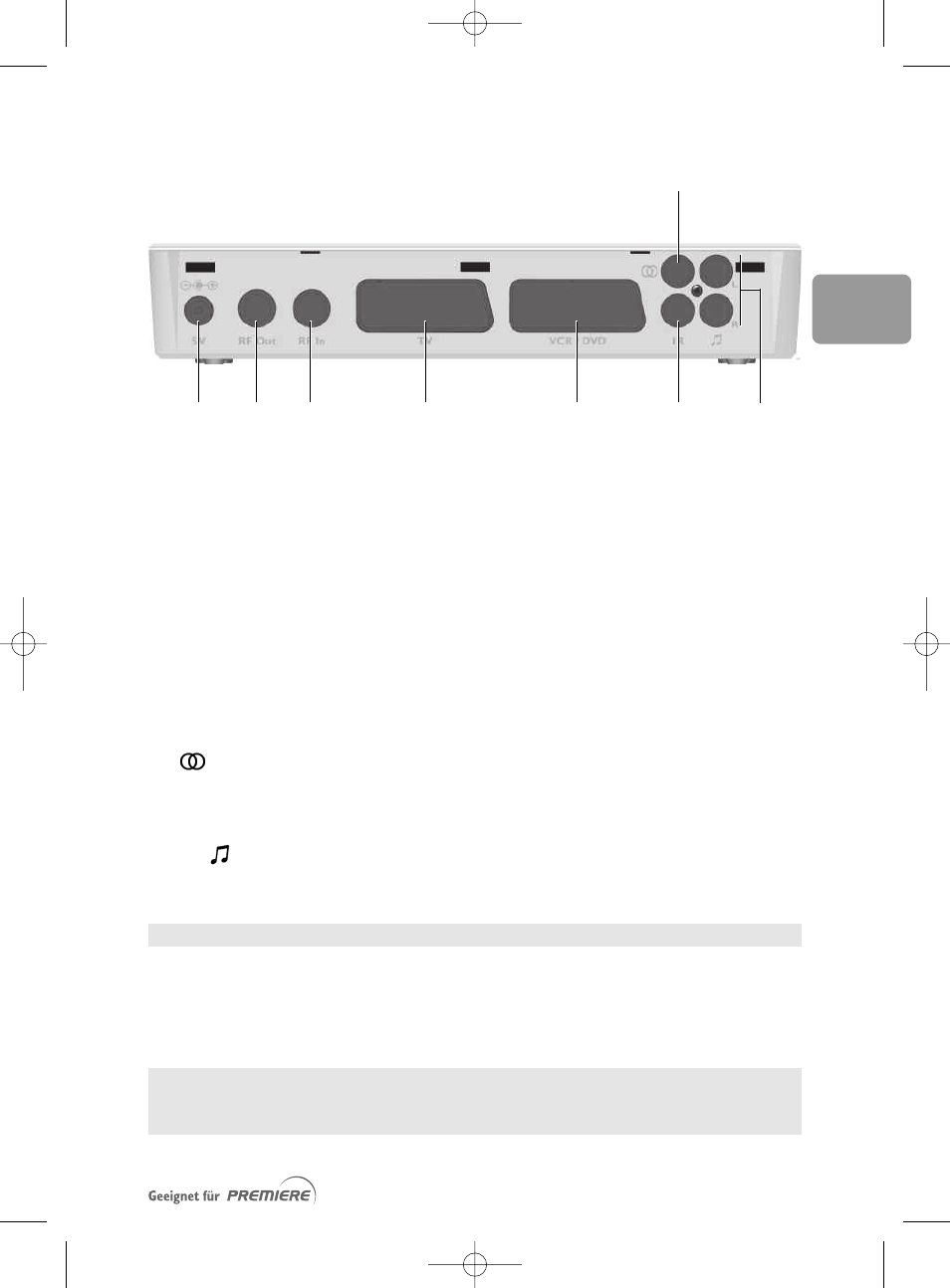

1.2 Rear panel
1 5V (*):
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Socket used to connect the power cord.
2 RF Out (*):
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF output used to connect your receiver to a
VCR/TV set to watch analogue channels only, or
to connect another receiver.
3 RF In (*):
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF input used to connect the antenna cord from
the wall socket. Refer to chapter Connecting
your Digital-Receiver.
4 TV (*):
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SCART (1) socket used to connect your TV set.
5 VCR/DVD (*):
. . . . . . . . . . . . . . . . . . . . . . .
SCART (1) socket used to connect your video
recorder or DVD player/recorder.
6 (*):
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Digital audio cinch output used to connect your
HiFi/audio receiver system.
7 IR
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Not active on this receiver system.
8 L/R (*):
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Left/Right analogue audio cinch outputs used to
connect your HiFi/audio receiver system.
The label showing the type and serial number is underneath the receiver.
(1) SCART is also called Euroconnector or Peritel.
* Safety Extra Low Voltage
Note: if you consider using a video projector, refer to its user manual for the best
video format to feed it. If necessary, refer to paragraph System Settings to properly
set the TV/VCR SCART output.
W T Q E R U I
Y
