Mobile IP Community Name: PLANET (it must be identical for all nodes in the same
mesh network)
Mobile Location Register Address: 10.16.1.7 (the IP address assigned in Gateway VPN
Server screen)


Step 4: Reboot the Relay

Step 5: MAP-2105 Configuration:

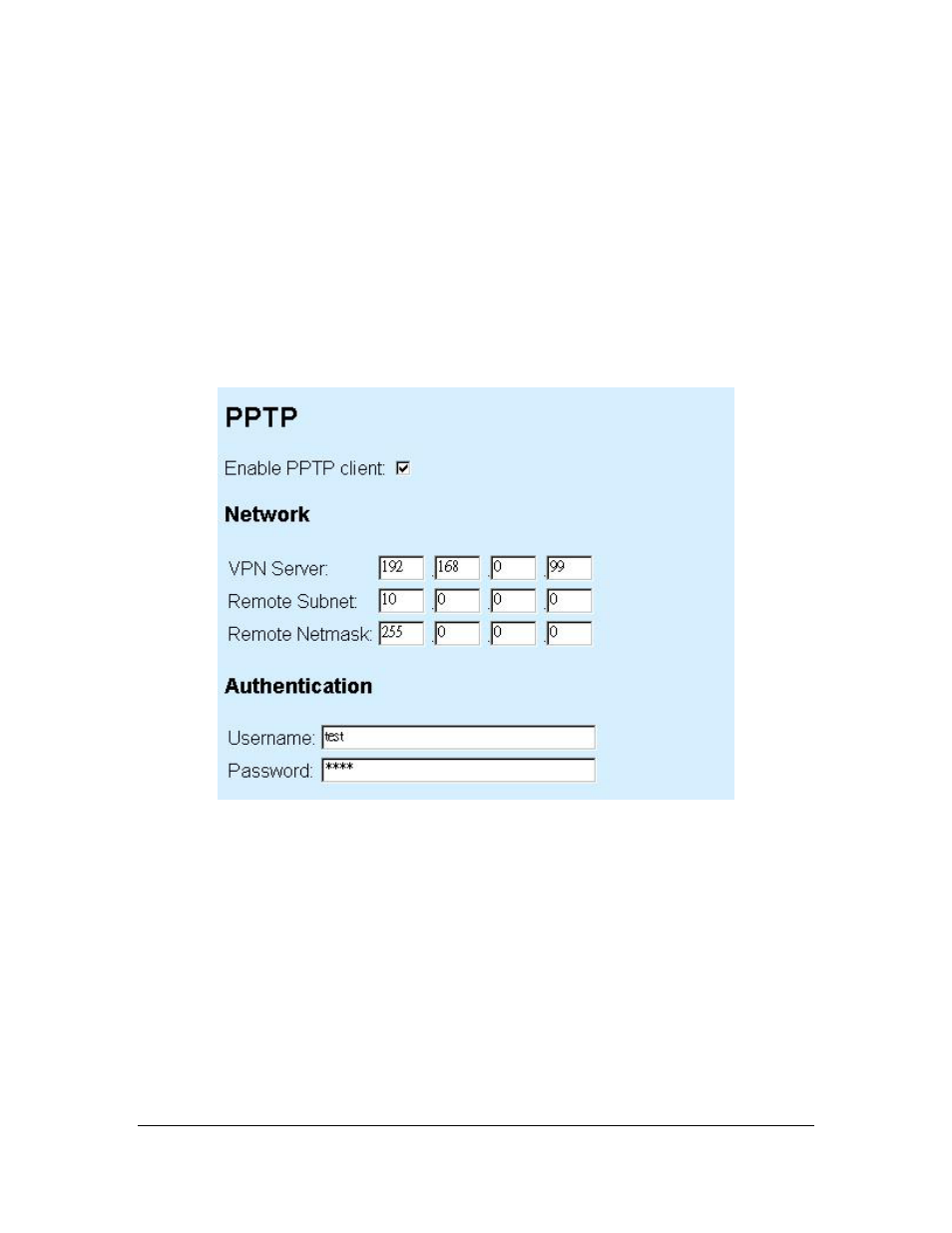

[Configuration -> Local Service -> VPN Client]

Enable PPTP Client: checked
VPN Server: 192.168.0.99 (the Gateway WAN IP address)
Remote Subnet: 10.0.0.0 (the subnet of Gateway’s Backhaul radio IP)
Remote Netmask: 255.0.0.0 (the net mask of Gateway’s Backhaul radio IP)
Username: test (it is identical as defined in Gateway VPN Server screen)
Password: test (it is identical as defined in Gateway VPN Server screen)


Step 6: Reboot the MAP-2105

Step 7: Check MAP-2105 status
